| Country of Origin | India |
|---|---|
| Diameter | 2mm |
| Brand | STMicroelectronics |
| Height | 2mm |
| Length | 4.5mm |
| Model | 1N6263 |
| Width | 2mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-35 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15mA |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Small Signal |
| Peak Reverse Current Ir | 200nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50mA |
| Maximum Forward Voltage Vf | 1V |
| Avago Technologies 70V 15mA, Schottky Diode, 2-Pin Outline 15 5082-2800Brand | Avago Technologies |

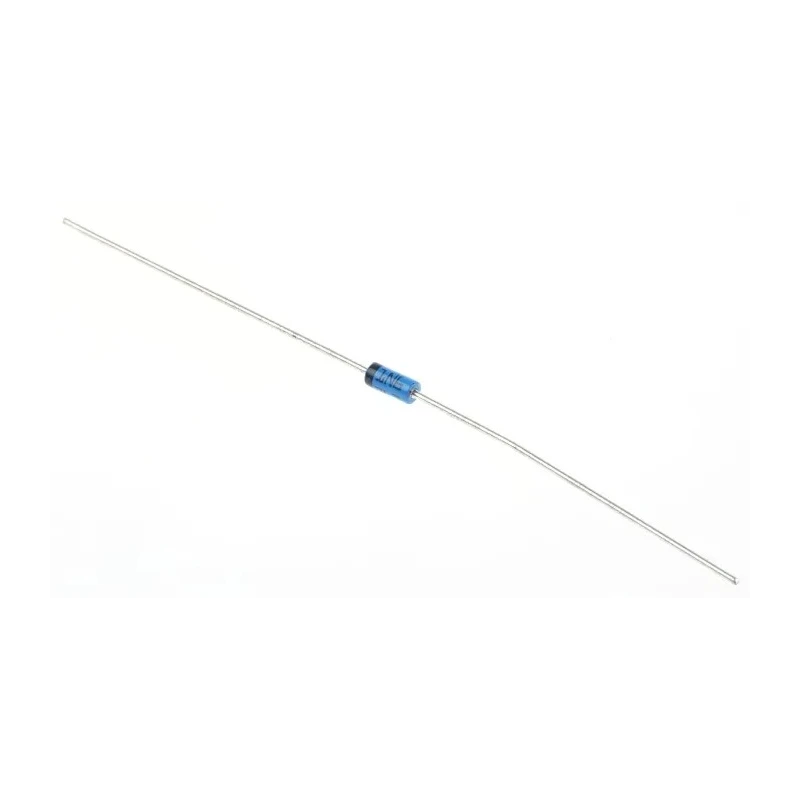

STMicroelectronics 1N6263 is a 60 V, 15 mA small signal diode designed for discrete semiconductor applications requiring efficient rectification. Packaged in a compact DO-35 2-pin through-hole format, it offers a peak repetitive reverse voltage rating of 60 volts and maximum continuous forward current of 15 mA. The diode's low forward voltage drop of 1 V and minimal peak reverse current of 200 nA enhance energy efficiency in electrical circuits.
This diode operates over a wide temperature range from -65°C to 200°C, ensuring reliability in industrial, automotive, and electronic control systems. Its peak forward surge current of 50 mA provides protection during transient events. The small size with dimensions of approximately 4.5 mm length and 2 mm diameter allows versatile implementation in compact PCB designs.
Common uses include signal rectification in power supplies, switching circuits, and small signal detection in industrial electronics and instrumentation. The through-hole DO-35 package is compatible with standard PCB mounting techniques and assembly lines.
Designed for small signal rectifier applications with 2-pin configuration. Maximum continuous forward current of 15 mA ensuring efficient conduction. Peak repetitive reverse voltage rated at 60 V for robust operation. Compact DO-35 through-hole package with 4.5 mm length and 2 mm diameter.
Operates reliably between -65°C and 200°C temperature range. Maximum forward voltage of 1 V minimizes power loss during conduction. Peak forward surge current capability up to 50 mA for transient conditions. Low peak reverse current of 200 nA contributes to high efficiency.
STMicroelectronics is renowned for quality semiconductor components with high reliability suitable for industrial and consumer electronics. This diode meets typical requirements for signal processing, protection, and switching within various electronic assemblies.
