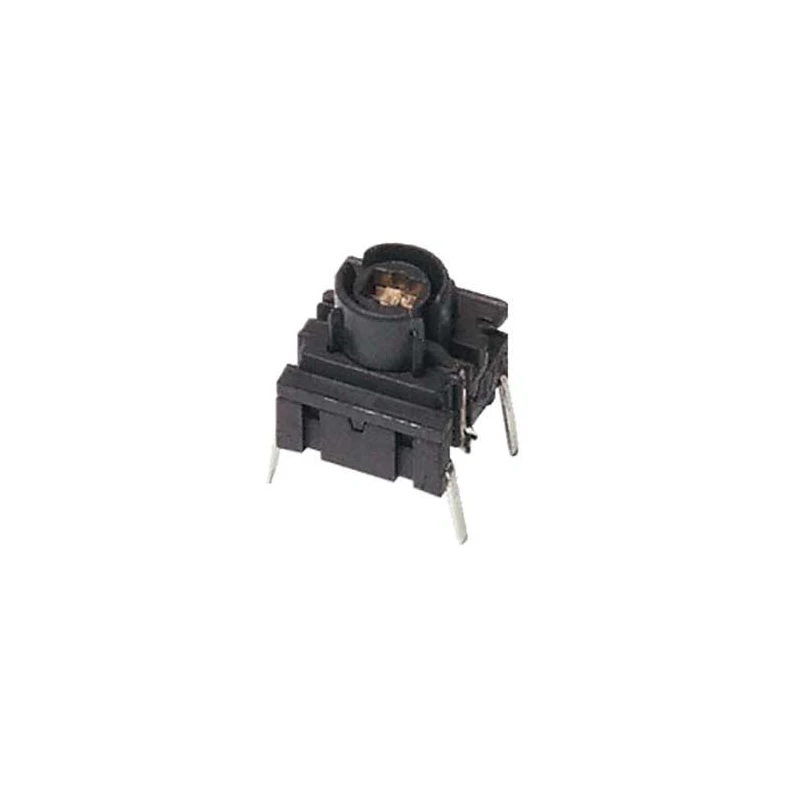

MEC IP67 Yellow Tactile Switch Push Button, 10.4 mm, SPST, Surface Mount, 24V DC, 50mA



Category Switches Brand MEC Condition New

Specifications

Country of Origin	Denmark
Brand	MEC
Height	10.4mm
Length	12.5mm
Model	IP67
IP Rating	IP67
Width	10.3mm
Mount Type	Surface
Series	4F
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	126-795Brand: MECManufacturers Part No.: 4FTH942
Switch Operation	Momentary
Actuator Colour	Yellow
Actuator Length	10.4mm
Contact DC Voltage	24V dc
Actuator Style	Push Button
Actuator Orientation	Right Angle
Switch Contact Current	50mA
Operating Force	2.5N
Mechanical Life	10000000Operations

Key Features

Push button actuator design enables tactile response for user input.
SPST (Single Pole Single Throw) contact configuration ensures on/off functionality.
IP67 rating provides protection against dust and water ingress.
10.4 mm actuator length with right angle orientation facilitates panel integration.
Surface mount and through hole terminals for flexible installation.
Illuminated switch enables high visibility with integrated LEDs.
Operates at DC voltage of 24V and supports maximum contact current of 50mA.
Wide operating temperature range from -40°C to 125°C for extended reliability.

Product Description

MEC 4FTH942 IP67 Yellow Tactile Switch, push button type, is designed to deliver robust performance and user input reliability in demanding electronic applications. With its SPST contact configuration, this momentary-action switch provides efficient on/off control suitable for industrial, instrumentation, and panel integration.

The switch features a yellow push button actuator with a length of 10.4 mm and right angle orientation, enabling convenient access and tactile feedback. Its IP67 rating ensures resistance to dust and water, making it suitable for harsh environments in automation and control panels.

The illuminated actuator enhances visibility and signaling capabilities with integrated LEDs for quick user indication. Designed for surface mount and through hole terminal types, it offers flexible installation across a variety of electronic assemblies.

Electrically, MEC 4FTH942 operates on 24V DC and handles up to 50mA contact current, ensuring compatibility with low voltage digital circuits and interface applications. Its wide operating temperature range, from -40°C to 125°C, extends its usability in high and low temperature environments.

The switch’s actuator style, push button momentary configuration, and operating force of 2.5N provide a noticeable tactile click for precise control. It is built to withstand up to ten million operations, offering remarkable mechanical endurance for repetitive use.

Typical application areas include industrial machinery, laboratory electronics, automation controllers, keyboard and keypad switch assemblies, and commercial electronic panels. Compliance with RoHS standards emphasizes environmental responsibility and safety.

For those seeking a reliable, high-lifetime tactile switch for industrial or electronics projects, the MEC 4FTH942 is a premier choice within the Switches & Sockets category. Browse similar EnvMart products for comprehensive solutions.
