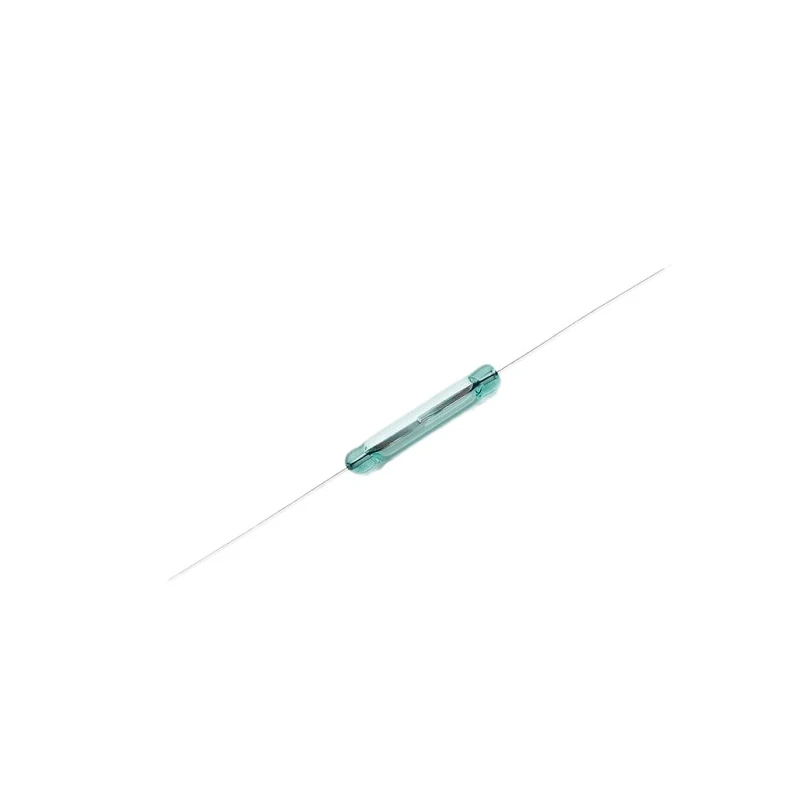

Littelfuse Axial Miniature Reed Switch 500 mA 200 V Flex-14-15-20

Littelfuse Flex-14-15-20 Axial Miniature Reed Switch 500 mA 200 V is a hermetically sealed, sub-miniature reed switch designed for reliable, low power switching applications. This axial lead switch features normally open contacts that are magnetically actuated, providing high resilience to environmental contamination and stable performance over its operating life.

The reed switch has a compact glass envelope measuring 14 mm in length and 2.28 mm in width, making it suitable for use in applications where space is limited. With a maximum switching current of 500 mA and voltage of 200 V, this switch can efficiently manage loads up to 10 W.

This switch delivers fast operational timings with a maximum release time of 0.2 milliseconds and an operating time including bounce of 0.55 milliseconds. Its contact resistance is approximately 100 milliohms, ensuring minimal power loss during switching. The switch’s operating temperature range spans from -40°C to 125°C, allowing for versatile deployments in harsh environments.

Subminiature axial lead reed switch built for low power logic level switching. Magnetically operated normally open contacts provide reliability and contamination resistance. Soft pliable leads facilitate easy installation and forming.

High insulation resistance combined with low contact resistance and rapid switching times. Wide operating temperature range supports industrial and commercial applications. Applications include reed relays, security, limit switching, and industrial control electronics.

Designed to meet UR standards and ATEX approvals between 10-30 AT range.

This Littelfuse reed switch is ideal for industrial automation, office equipment, HVAC control systems, and security applications where compact, reliable switching is required. Its robust design and fast response make it suitable for intricate control circuits where precise actuation is essential.
