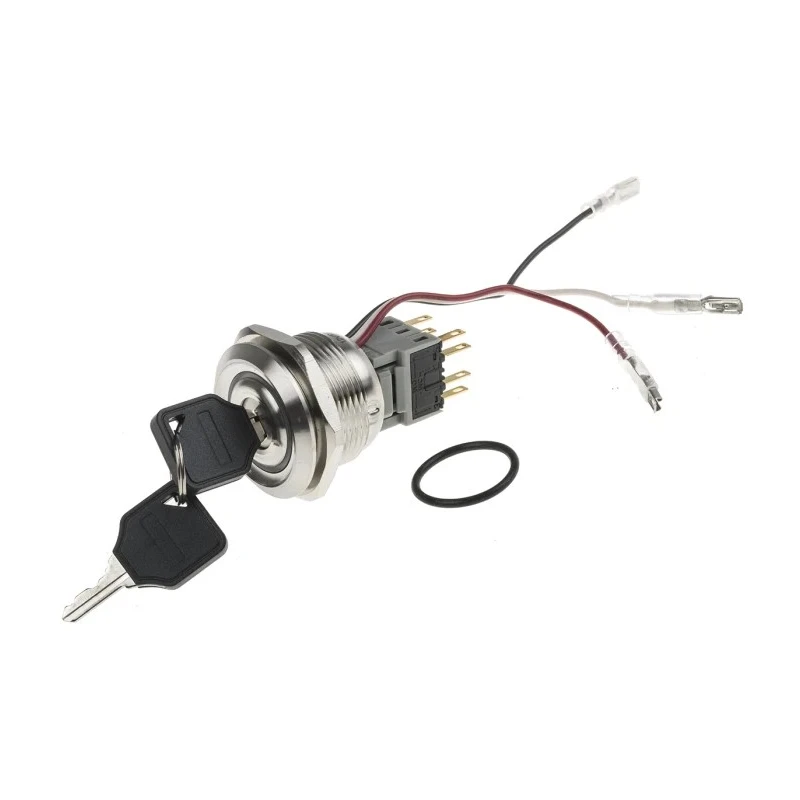

RS PRO Stainless Steel IP40 Latching Key Switch DPDT 5A 2-Way 30.2 mm Panel Cut-Out IP40 IP Rating IP40
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | IP40 |
| IP Rating | IP40 |
| Housing Material | Stainless Steel |
| Contact Material | Silver |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Number of Positions | 2 |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Standards/Approvals | UL, CE, cUL |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 50000Operations |
| Contact AC Voltage | 250V ac |
| Electrical Life | 50000 make and break operations at full load |
| Bezel Shape | Round |
| Key Index Angle | 90° |
| Panel cut-out diameter | 30.2 mm |
Key Features
- Constructed from durable stainless steel housing with a varnish finish for long life.
- Offers a 2-position latching mechanism with 30.2 mm panel cut-out diameter.
- Designed with silver contacts supporting 30V DC and 250V AC voltages.
- Features 90° key index angle and solder terminal connections for secure wiring.
- Electrical life rated for 50000 make and break operations at full load.
- Protection rating of IP40 and IK03 impact resistance ensures durability in industrial settings.
- Suitable for applications in automation, electrical panels, and industrial control systems.
- Key removal possible in all positions to enhance security.
Product Description
The RS PRO IP40 latching key switch model offers a robust and reliable solution for switching applications requiring secure operation and durability. This DPDT switch supports a 5A contact current rating and is constructed with a stainless steel housing and button finished with varnish to provide excellent corrosion resistance and mechanical strength.
It features a 2-position operation with a 30.2 mm panel cut-out diameter designed for easy installation in electrical control panels, automation systems, or safety interlock applications. The switch includes silver contacts capable of handling up to 30V DC and 250V AC, ensuring compatibility with a wide range of electrical circuits. The solder-type terminal facilitates a secure and stable connection.
The IP40 rating protects against solid objects greater than 1mm, making it suitable for indoor industrial environments. Additionally, the IP40 switch has an impact resistance rating of IK03, supporting durability under moderate mechanical stress. The key index angle of 90° provides standard key rotation for operation, while removal of keys in all positions ensures controlled access.
The switch is rated for an electrical life of up to 50000 make and break cycles at full load, assuring long-term operational reliability. It performs reliably in environmental temperatures ranging from -20°C to 55°C and complies with UL, CE, and cUL safety standards. This key switch is ideal for various industrial applications including manufacturing machinery, HVAC control panels, and automation equipment where secure user intervention is required.
Durable stainless steel construction with varnish finish. Double-pole double-throw (DPDT) configuration for versatile switching. 5A current rating suitable for control and signal circuits. IP40 protection against solid foreign objects and IK03 impact resistance.
Panel cut-out diameter 30.2 mm for easy mounting. Silver contact material for reliable electrical conductivity. Key removable in all positions for safety control. Electrical life of 50000 operations for longevity. Certified to UL, CE, and cUL standards.
Explore more RS PRO Switches and components in our Electronics & Electricals category for trusted industrial automation and electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact current rating of 5A, suitable for control and signal circuits.
The panel cut-out diameter required for this switch is 30.2 mm, facilitating easy mounting in electrical control panels.
It has an IP40 rating, providing protection against solid objects greater than 1mm, making it suitable for indoor industrial environments.
This unit supports a contact DC voltage of 30V and an AC voltage of 250V, ensuring compatibility with various electrical circuits.
The switch is constructed with a stainless steel housing and features silver contacts for reliable electrical conductivity.
It is rated for a mechanical life of 50,000 operations, ensuring longevity in various applications.
This model operates effectively within a temperature range of -20°C to 55°C, suitable for diverse environments.
It features solder-type terminals, which facilitate secure and stable connections during installation.
The key can be removed in all positions, allowing for controlled access and enhanced security in operation.
This model complies with UL, CE, and cUL safety standards, ensuring it meets necessary safety requirements for industrial use.
It has an impact resistance rating of IK03, which supports durability under moderate mechanical stress.
This key switch operates with a latching mechanism, allowing for stable and secure switching in applications.
