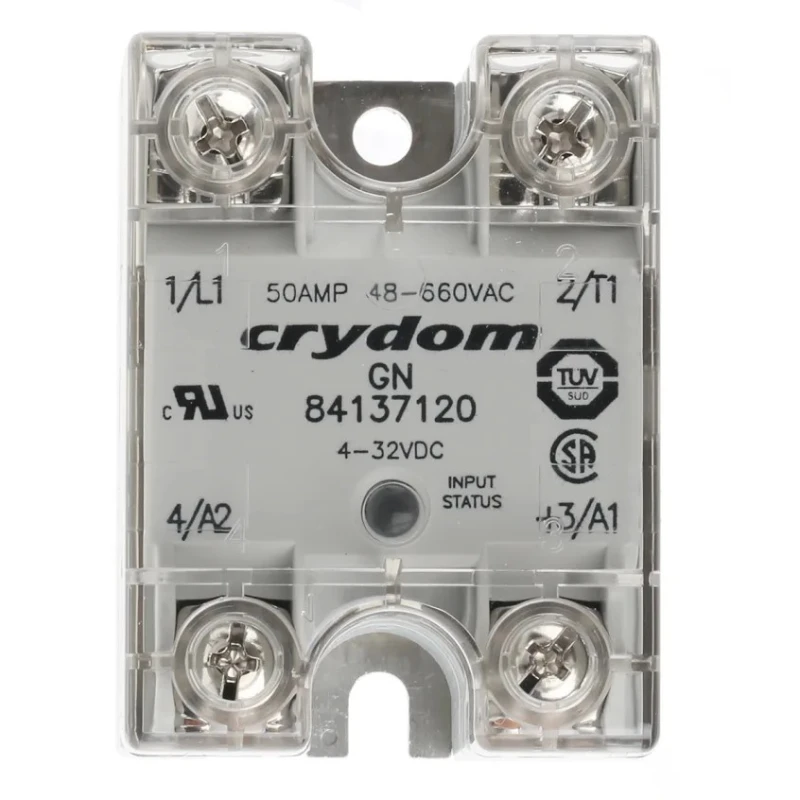

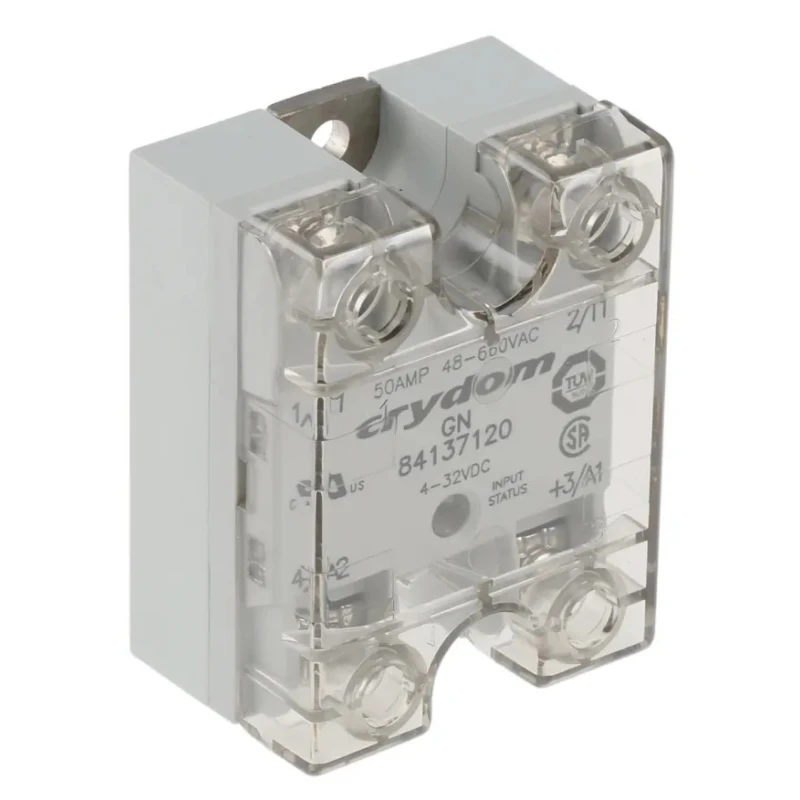

Crydom 8413 Series Solid State Relay, 50A Load, Panel Mount, 660V AC Load, 32V DC Control 84137120

The Crydom 84137120 is a solid state relay from the 8413 series engineered for demanding industrial environments requiring high current switching with minimal maintenance. This model supports a load current of 50A and a maximum AC load voltage rating of 660V while controlled via DC voltages up to 32V, making it ideal for panel mount integration.

Designed with a zero-voltage turn-on switching function, it significantly reduces switching losses by eliminating overlap between voltage and current cycles. This reduces thermal stress and enhances reliability and lifetime of connected devices.

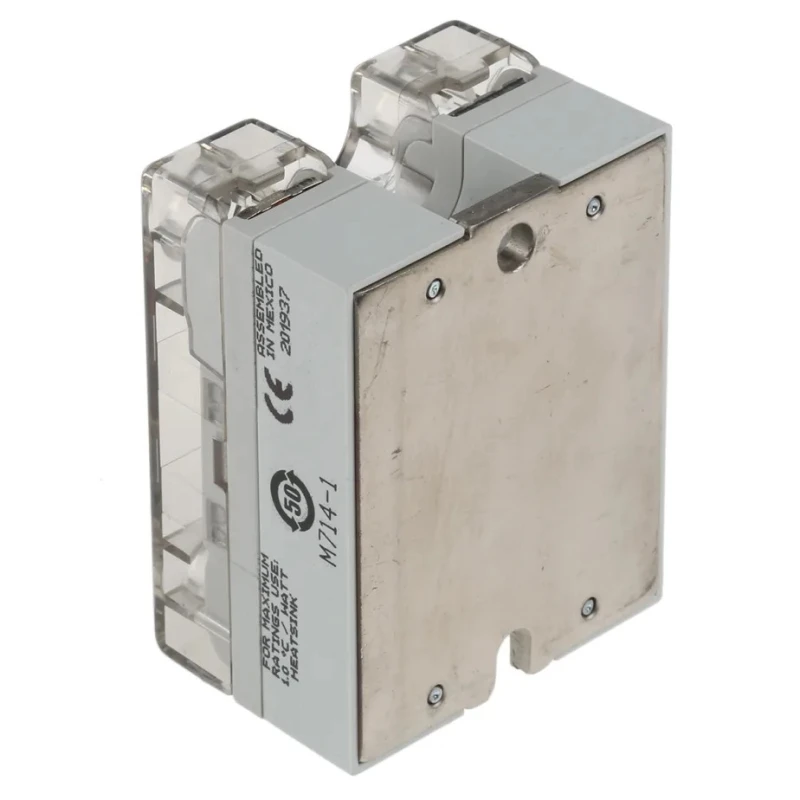

Its flame-retardant housing ensures safety by minimizing fire hazards. The aluminium baseplate serves as a heat sink, enabling efficient thermal management without a fan, thus removing moving parts and associated maintenance.

The SSR's IP20 enclosure rating safeguards against direct finger contact and prevents ingress of solid objects larger than 12mm, suitable for panel mounting safety requirements. Pre-assembled SEMS screws and washers simplify installation ensuring secure terminal connections.

Operating temperature range from -40°C up to 80°C allows performance in harsh industrial climates. UL and CE approvals certify safety and compliance with international standards. With an off-state leakage current of only 0.25mArms and low capacitance of 8pF, the relay minimizes electrical noise and interference.

This solid state relay is widely used in industrial automation, process controls in food and beverage production lines, railway signaling equipment, and other applications requiring reliable, noiseless switching of high load currents.

This model offers zero cross switching for low-loss operation. Its pre-assembled mounting hardware facilitates fast installation. The aluminium baseplate helps maintain stable operating temperatures. IP20 rated housing provides finger-safe protection suitable for panel mounting.

Manufactured with UL and CE standards for guaranteed quality and safety. Explore a wide range of Crydom Solid State Relays and related industrial electrical components on EnvMart for reliable and industrial-grade solutions.
