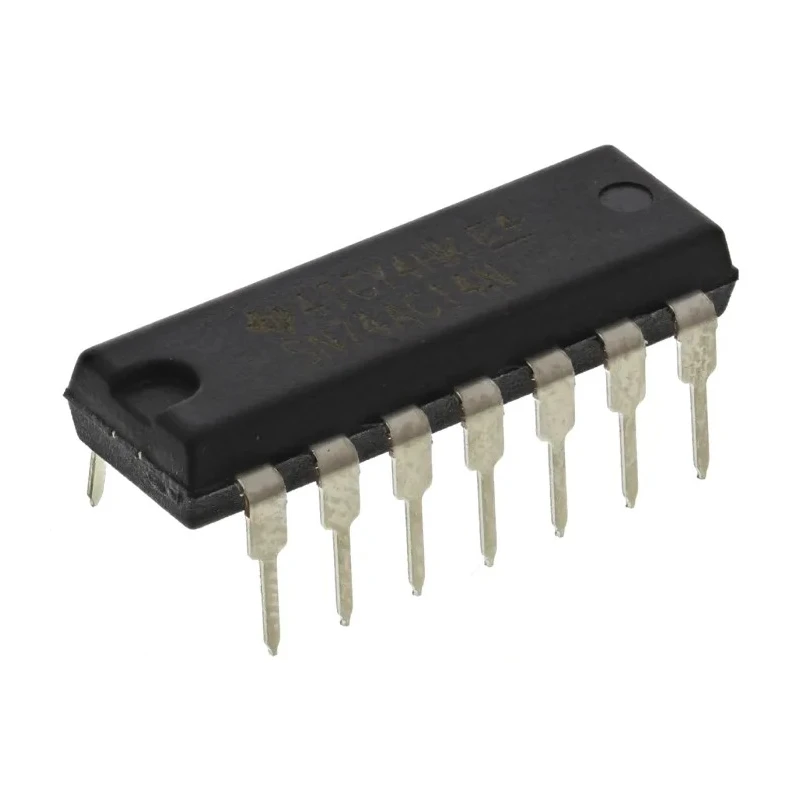

Texas Instruments Schmitt Trigger Input CMOS Inverter 6 Elements, 14-Pin PDIP Package SN74AC14N

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Schmitt Trigger Input CMOS Inverter 6 Elements, 14-Pin PDIP Package SN74AC14N

Name: Texas Instruments Schmitt Trigger Input CMOS Inverter 6 Elements, 14-Pin PDIP Package SN74AC14N
Brand: Texas Instruments
SKU: 211546
Price: 0.75 USD
Availability: InStock



Category Inverters ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	SN74AC14N
Width	6.35mm
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Series	SN74AC14
Input Type	Schmitt Trigger
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Operating Voltage	1.5 to 5.5 V and 2 to 6 V
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	6V
Logic Family	AC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-24mA
Maximum Propagation Delay Time @ CL	15ns
Maximum Low Level Output Current	24mA

Key Features

Features six inverter elements in one chip for diversified logic functions.
Compact 14-pin Dual Inline Package makes it ideal for through-hole mounting.
Operates at supply voltages ranging from 2 V to 6 V for versatile applications.
Maximum propagation delay time of 15 ns ensures quick response in electronic circuits.
Wide operating temperature range from -40°C to 85°C suits industrial environments.
Compatible with both input and output CMOS logic for integration flexibility.
Supports maximum high and low level output currents of -24 mA and 24 mA respectively.
Designed with advanced CMOS logic technology for high performance and low power consumption.

Product Description

Texas Instruments SN74AC14N is a CMOS Inverter IC featuring Schmitt Trigger input with six inverter elements packaged in a 14-pin PDIP. Designed for reliable signal conditioning, this device offers excellent performance with minimal propagation delay and low power requirements.

This versatile inverter operates at a supply voltage range between 2 V and 6 V, supporting robust performance across a wide range of electronic applications including industrial controls, consumer electronics, and embedded systems. The maximum propagation delay time of 15 nanoseconds ensures rapid switching suitable for high-speed logic circuits.

Featuring through-hole mount type and a standard PDIP package, the SN74AC14N is easy to integrate into existing PCB designs and prototyping. Its operating temperature range spans from -40°C to 85°C, making it suitable for demanding industrial environments.

Additional technical characteristics include compatibility with both input and output CMOS logic levels, maximum output current capability of ±24 mA, and adherence to AC logic family standards. Measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, the compact footprint aids space-efficient circuit designs.

This device is part of the SN74AC14 series with no specific automotive certification. It is a new product, ideal for engineers requiring precision logic inverters with Schmitt Trigger inputs for noise immunity.

Features six inverter elements for logic signal processing. Compact 14-pin PDIP package for through-hole mounting. Wide supply voltage from 2 to 6 volts. Fast propagation delay at 15 nanoseconds. Supports industrial operating temperatures from -40°C to 85°C.

Advanced CMOS logic with low power consumption. Output current capability: ±24 mA. Compatible with input/output CMOS logic. Physical dimensions: 19.3 x 6.35 x 4.57 mm. Non-automotive standard, built for broad electronic applications.

Suitable for applications in industrial electronics, embedded systems, and general semiconductor circuit design. Explore similar Inverters ICs in the Electronics and Electricals category at EnvMart.
