| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Height | 900μm |
| Length | 2mm |
| Model | TC7SH14FU,LJ(CT |
| Width | 1.25mm |
| Mount Type | Surface |
| Output type | Inverting |
| Series | TC7SH14FU |
| Input Type | CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-353 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Inverter |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 18.5ns |
| Maximum Low Level Output Current | 8mA |
| Wide operating voltage range | 2 to 5.5V |

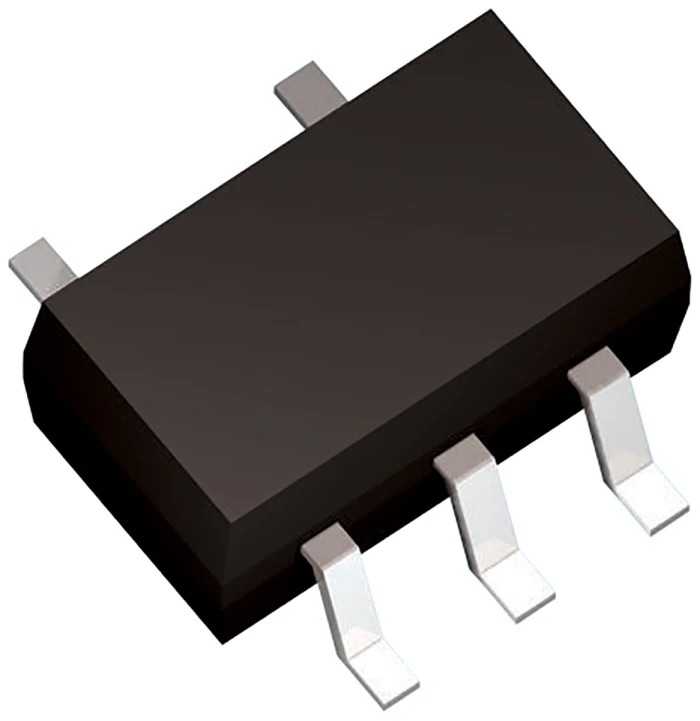

The Toshiba TC7SH14FU,LJ(CT is a high-performance single inverter logic IC with a CMOS Schmitt trigger input designed for fast switching and enhanced noise robustness. It is housed in a 5-pin SOT-353 surface mount package, making it ideal for compact circuit designs.
This L-MOS very high-speed series device operates efficiently across a wide voltage range of 2 to 5.5V and delivers a maximum propagation delay time of 18.5ns, enabling high-speed digital signal processing. Its maximum output current of ±8mA supports robust driving capabilities for various electronic applications.
Thanks to its wide operating temperature range from -40°C to 125°C and automotive AEC-Q100 qualification, this inverter IC is well-suited for industrial, automotive, and consumer electronics environments requiring reliability under thermal stress.
The compact SOT-353 package with dimensions of 2mm length, 1.25mm width, and 900μm height facilitates space-saving PCB layouts. Its CMOS technology ensures low power consumption along with high noise immunity, which helps maintain signal integrity in electrically noisy environments.
Schmitt trigger input enhances noise immunity in digital circuits. Wide operating voltage range for versatile usage. Low propagation delay time supports fast switching applications. Surface mount package enables compact board designs.
Complies with automotive standards for enhanced quality and reliability. High output current capacity for driving various loads. Suitable for industrial, automotive, and general electronic use. Manufactured in Japan ensuring high-quality standards.
This product enables engineers to design robust and efficient inverter circuits for applications including logic signal conditioning, waveform shaping, and switching in diverse electronics industries. Explore more semiconductor solutions like this from Toshiba in the EnvMart catalog.
Explore more products in our Inverter ICs category.
