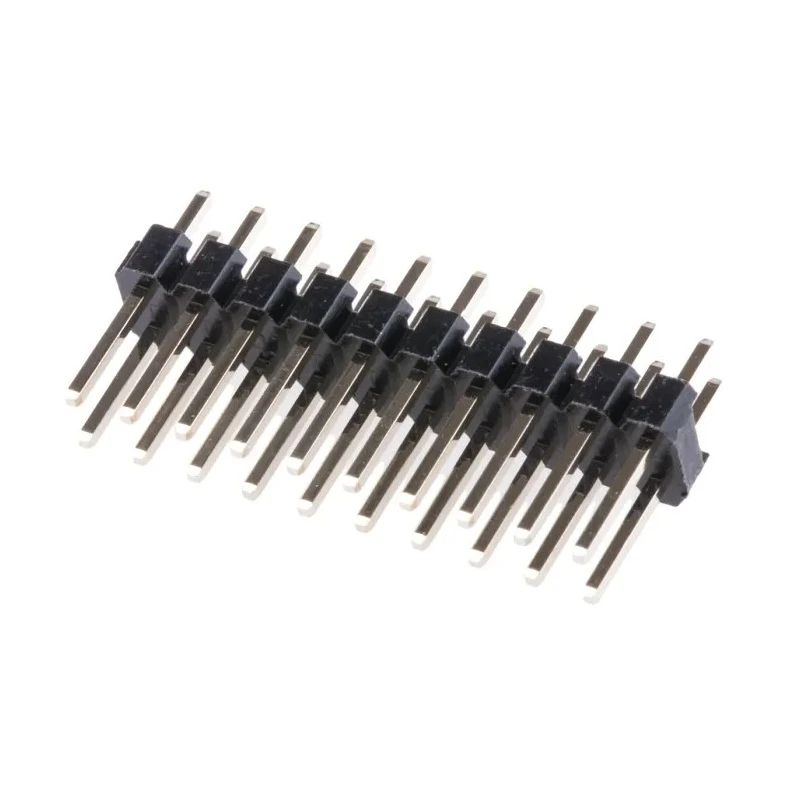

HARWIN M20 Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20-9981045

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20-9981045

Name: HARWIN M20 Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20-9981045
Brand: HARWIN
SKU: 210616
Price: 0.67 USD
Availability: InStock



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	Taiwan
Brand	HARWIN
Orientation	Straight
Current	3A
Model	M20-9981045
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm
Mating Pin Length	6.1mm

Key Features

Constructed with durable nylon housing suitable for high temperature reflow soldering process.
Features gold-plated brass contacts to ensure excellent conductivity and corrosion resistance.
Supports a maximum current of 3A and operates between -40°C and 105°C.
Designed with 3 mm tail pin length and 6.1 mm mating pin length for reliable connections.
Unshrouded design offers easy access and flexibility for various PCB mounting applications.
Available with dual row and straight orientation for versatile configurations.
Manufactured to high quality standards in Taiwan, Province Of China.

Product Description

HARWIN M20-9981045 is a high-quality Straight Through Hole Pin Header featuring 20 contacts spaced at a 2.54 mm pitch arranged in 2 rows with an unshrouded design. This pin header is ideal for board-to-board and wire-to-board connector systems commonly used in embedded PCBs, motherboards, and large electronic assemblies.

The housing is made from high-temperature resistant nylon, enabling safe use during reflow soldering without deformation or degradation. The contacts are made of brass with gold plating to provide excellent electrical conductivity and resistance to corrosion, ensuring reliable and long-lasting connections.

Operating temperatures range from -40°C to 105°C, with a maximum continuous current rating of 3 amps, making this connector suitable for a wide range of industrial, commercial, and consumer electronics applications. The 3 mm tail pin length and 6.1 mm mating pin length allow for secure solder joint formation and stable mating with corresponding female connectors.

This unshrouded pin header design facilitates easy access for insertion and removal in various PCB layouts, providing flexibility in design and maintenance. The dual-row, straight orientation configuration supports versatile mounting options according to system requirements.

Manufactured in Taiwan, Province Of China, this HARWIN M20 pin header meets stringent quality standards but has no specific certifications or approvals, emphasizing usability across multiple sectors including industrial automation, communications equipment, and computing hardware.

Durable nylon housing withstands reflow soldering processes. Gold-plated brass contacts ensure reliable electrical performance. Rated for 3A current with stable operation at wide temperature ranges. Unshrouded two-row design for board-to-board and wire-to-board applications.

Precise 2.54 mm pitch and 3 mm tail length for PCB compatibility. Manufactured in Taiwan ensuring quality and consistency. Browse EnvMart’s comprehensive selection of PCB Headers and connectors for compatible components and related accessories to enhance your electronic designs and maintenance tasks.
