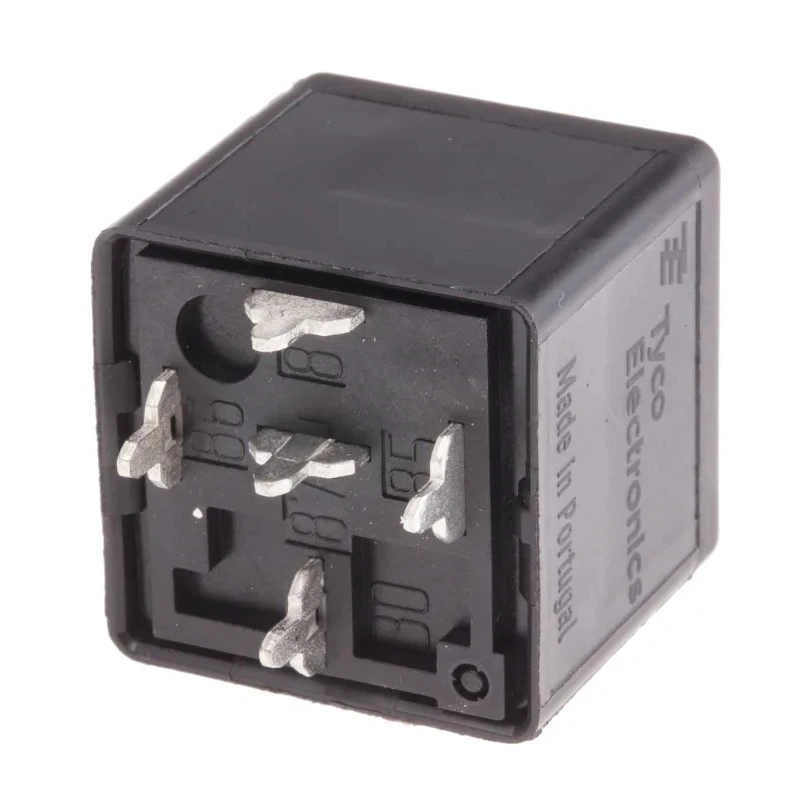

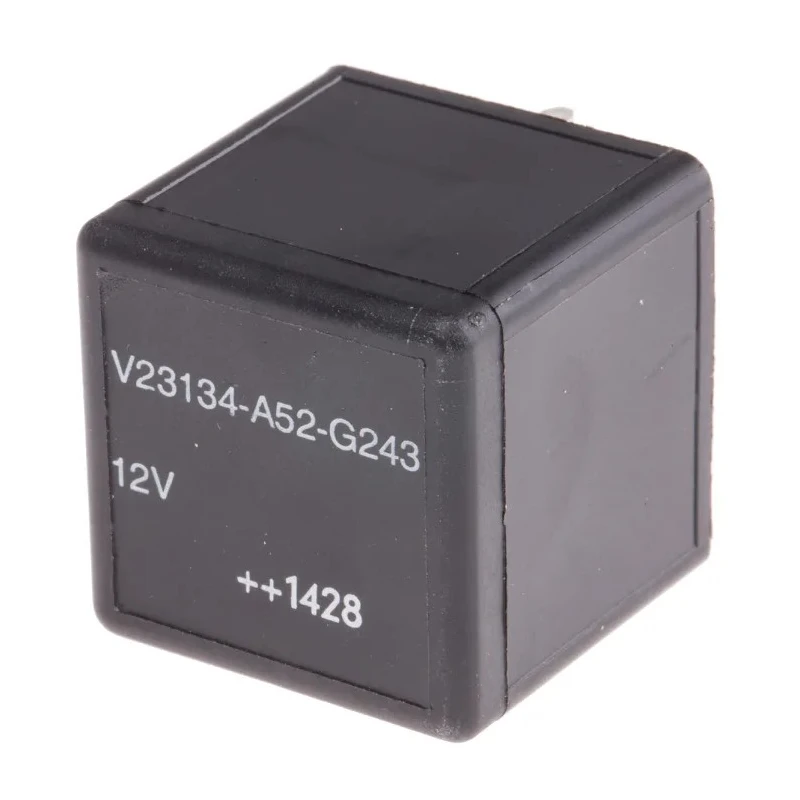

TE Connectivity PCB Automotive Relay 12V DC Coil Voltage 40A Switching Current SPDT V23134A0052G243
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 27.4mm |
| Length | 25.9mm |
| Model | V23134A0052G243 |
| Depth | 25.9mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- Compact Mini ISO automotive relay from the F4 series with a single-pole double-throw contact configuration.
- Coil power rating is 1.6W with a coil resistance of 90 Ω ensuring efficient operation.
- Operating temperature range from -40°C to 125°C suitable for harsh automotive environments.
- Silver contact material delivering reliable electrical conductivity and durability.
- Isolation between coil and contact rated at 500V for enhanced safety.
- Designed with solder terminal type and PCB mounting for easy integration into automotive circuit boards.
- Applicable in ignition locks, lamp loads, exhaust emission controls, ABS, fuel pumps, electric power steering, wiper controls, car alarms, and blower fans.
- Manufactured in Portugal ensuring high quality manufacturing standards.
Product Description
TE Connectivity V23134A0052G243 PCB automotive relay features a 12V DC coil voltage and a 40A switching current capacity designed explicitly for automotive and industrial PCB applications. This Mini ISO relay is part of the F4 series, offering robust performance with integrated components and various contact arrangements. Its single-pole double-throw (SPDT) configuration supports versatile switching control in critical automotive functions.
With a coil power consumption of 1.6W and coil resistance of 90Ω, this relay provides reliable and efficient electromagnetic operation. The relay is engineered to withstand a minimum operating temperature of -40°C and maximum operating temperature of 125°C, allowing it to function effectively in severe automotive environment conditions.
The relay is constructed with silver contact material that ensures excellent electrical conductivity and durability. It has an isolation voltage of 500V between coil and contacts enhancing system safety and reliability. Solder terminals and PCB mount type simplify integration into printed circuit boards for automotive electronics.
Physical dimensions are compact with a length of 25.9mm, height of 27.4mm, and depth of 25.9mm, which enables space-efficient design in automotive control modules.
This relay finds applications in automotive ignition lock systems, headlamp controls, exhaust emission control, ABS systems, fuel pump management, electric power steering, windshield wiper controls, car alarm systems, and blower fans. It offers a reliable switching solution critical for automotive safety and performance.
Produced in Portugal, this product meets quality expectations for automotive-grade relays. Compact Mini ISO relay from the F4 series with SPDT contact configuration. Coil power of 1.6W with 90Ω coil resistance for efficient operation.
Operating temperature between -40°C and 125°C for harsh automotive environments. Durable silver contacts ensuring reliable conductivity. 500V isolation voltage between coil and contacts for safety. Solder terminal type designed for PCB mounting integration.
Compact size: 25.9 mm length, 27.4 mm height, 25.9 mm depth. Suitable for ignition locks, lamps, ABS, fuel pumps, and more automotive uses. Manufactured in Portugal meeting automotive quality standards. Explore EnvMart for a broad range of Automotive Relays and electrical components to optimize your automotive design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current capacity of this automotive relay is 40A, making it suitable for various automotive applications.
This relay operates with a coil voltage of 12V DC, designed for automotive and industrial applications.
The operating temperature range for this model is from -40°C to 125°C, allowing it to function effectively in harsh automotive environments.
This relay features a single-pole double-throw (SPDT) contact configuration, providing versatile switching capabilities.
The relay has a length of 25.9mm, a height of 27.4mm, and a depth of 25.9mm, allowing for compact installation in automotive applications.
The coil resistance of this relay is 90Ω, which contributes to its efficient operation.
The isolation voltage between the coil and contacts is rated at 500V, enhancing safety in automotive applications.
This relay is designed with solder terminals, facilitating easy integration into printed circuit boards.
This relay is manufactured in Portugal, ensuring adherence to high manufacturing standards.
This relay is applicable in various automotive functions such as ignition locks, fuel pumps, ABS systems, and more.
The coil power consumption of this relay is 1.6W, which supports its efficient electromagnetic operation.
This relay is part of the F4 series, which is known for its robust performance in automotive applications.
