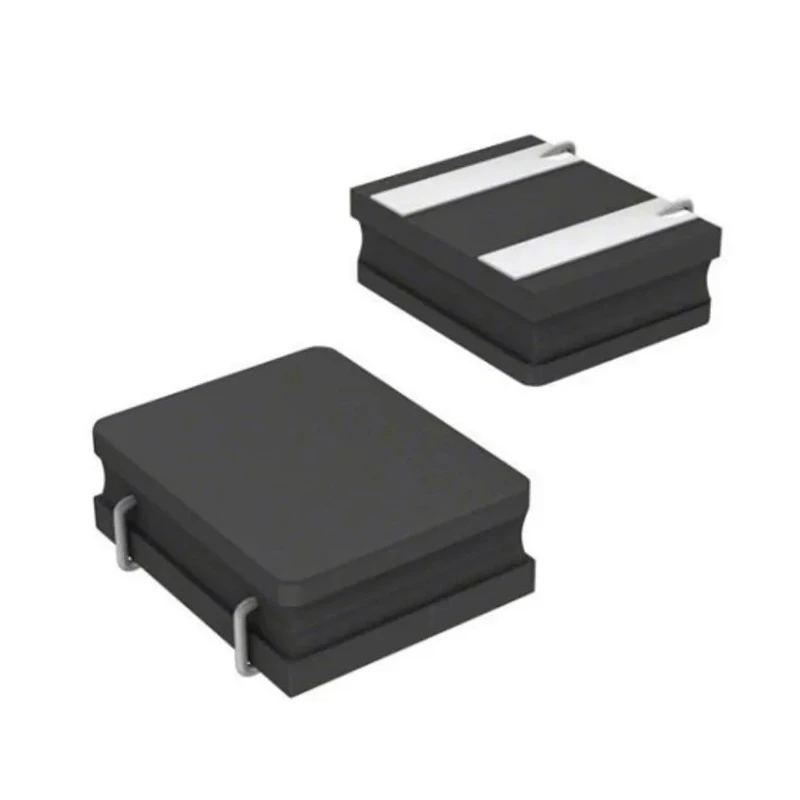

Murata Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8μH ±20% 1.05A DC Current 2520 Package LQH2HPZ6R8MJRL

Murata LQH2HPZ6R8MJRL shielded wirewound surface mount inductor with a ferrite core offers an inductance value of 6.8μH with ±20% tolerance and supports a maximum DC current of 1.05A. Packaged in the compact 2520 case, this inductor is designed for efficient SMT assembly using embossed tape packaging. The inductor construction features wirewound copper around a ferrite core with shielding to reduce electromagnetic interference, making it suitable for sensitive electronic applications.

The product complies with the automotive standard AEC-Q200, ensuring high reliability in automotive and industrial environments. It operates effectively within a wide temperature range starting from -40°C and features a maximum DC resistance of 310 milliohms, reducing energy losses and heat generation. Its maximum self-resonant frequency is 35MHz, suitable for high-frequency circuits.

This inductor has a height of 1.1mm, a depth of 2mm, and a length of 2.5mm, optimising board space in compact designs. It uses solder terminations compatible with standard surface mount soldering processes. The inductor is RoHS compliant and molded for added durability.

Typical applications for the Murata LQH series inductors include mobile phone power supplies, televisions, and digital cameras where large currents and high inductance are required. The shielding minimizes interference, improving circuit stability and performance.

The product packaging includes embossed tape for automated placement, enhancing production efficiency and consistency. This inductor is a reliable component choice for electronic engineers seeking compact, efficient, and robust inductors for surface mount applications.

Constructed with a ferrite core and copper wire winding providing high inductance and low DC resistance. Packaged in the 2520 case size with embossed tape for efficient surface mounting. Designed for automotive Grade AEC-Q200 applications and supports a maximum self-resonant frequency of 35MHz.

Offers shielding to reduce EMI and ensure optimal circuit performance. Operates reliably at temperatures from -40°C to above, suitable for harsh environments. Has low maximum DC resistance of 310mΩ ensuring minimal power loss.

Features solder termination style compatible with surface mount technology. RoHS compliant and molded for enhanced mechanical strength. Ideal for use in mobile phones, televisions, and digital camera circuits. Explore the range of Surface Mount Inductors on EnvMart for diverse electronic component needs.
