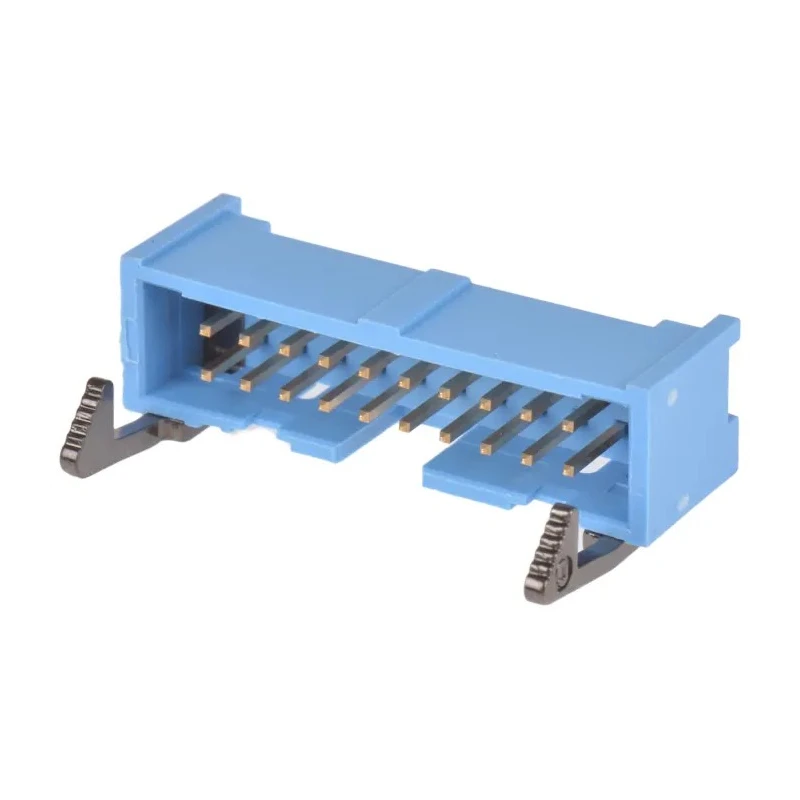

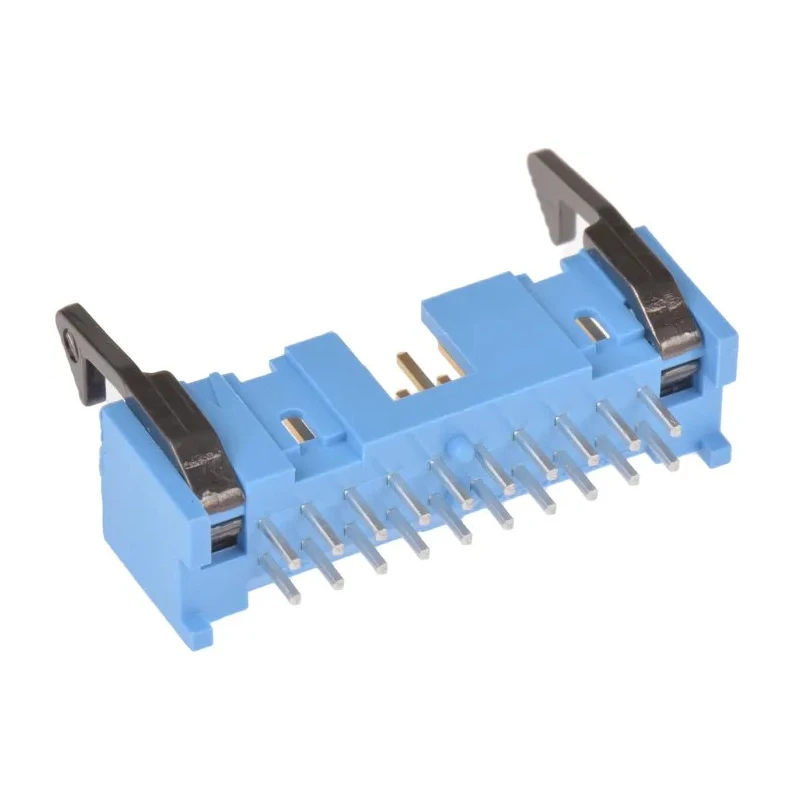

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 2-1761608-7

TE Connectivity 2-1761608-7 AMP-LATCH Series Straight Through Hole PCB Header is a high-quality electronic component designed for reliable wire-to-board connections. This PCB header features 20 male contacts arranged in two rows, with a 2.54 mm pitch and row pitch spacing, making it compatible with standard PCB layouts. The housing is constructed of durable polybutylene terephthalate, ensuring mechanical strength and long-lasting performance.

Contacts are made from phosphor bronze with gold plating to offer excellent electrical conductivity and resistance to corrosion, extending the connector's lifespan. The through-hole mount type with solder termination ensures a solid mechanical and electrical connection to the PCB.

This header is shrouded to protect the contacts from damage and to improve connection reliability. It operates with a voltage rating of 250 V and a current rating of 1 A, suitable for a wide range of electronic devices and equipment.

The connector supports operating temperatures from -65°C up to 105°C, allowing it to function reliably in various environments. It features ejector latches that ensure a secure connection with IDC ribbon cable receptacles and facilitate easy disconnection when needed. The AMP-LATCH series is available with long and short latch styles; this model includes the short latch suitable for connectors with strain relief.

Typical applications include personal computers, business machines, medical equipment, storage systems, networking devices, industrial control systems, household appliances, and electrical testing instruments. The component is manufactured in China, maintaining consistent quality and performance standards.

Features 20 male contacts arranged in 2 rows for compact connectivity. 2.54 mm pitch and row pitch ensure standardized spacing and compatibility. Constructed with polybutylene terephthalate housing for durability. Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.

Designed for through-hole mounting with solder termination for secure PCB attachment. Shrouded design offers protection against damage and enhances connection reliability. Operates at up to 250 V and 1 A current, suitable for varied electronic applications.

Tail pin length of 2.6 mm and operating temperature range from -65°C to 105°C. Includes ejector latches for secure mating and easy removal of IDC ribbon cable connectors. Ideal for PCs, business equipment, medical devices, storage, networking, industrial controls, appliances, and electrical testing.
