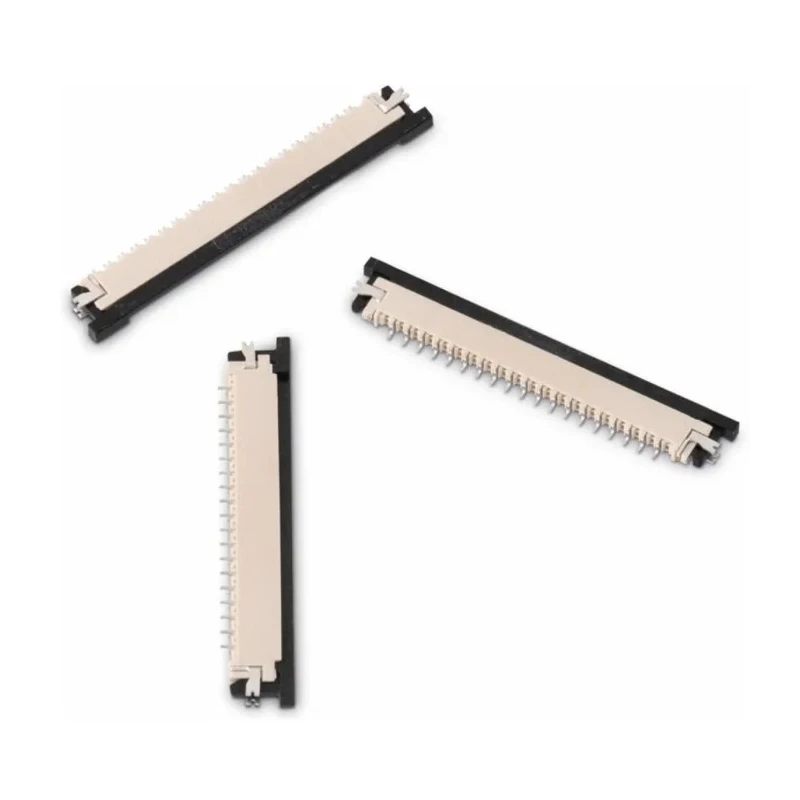

Wurth Elektronik WR-FPC 1 mm Pitch 4 Way Horizontal Female FPC Connector Surface Mount 686104183522
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 800mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a flip lock actuator for zero insertion force FPC insertion and secure retention.
- Constructed with phosphor bronze contacts plated with tin over nickel for reliable conductivity.
- Supports current up to 800mA and voltage up to 50V AC.
- Housing made of liquid crystal polymer ensures durability and stability.
- Rated operating temperature from -25°C to 85°C suitable for various environments.
- Designed with solder tabs for secure PCB retention and mechanical stability.
- Single row, bottom contact position with horizontal orientation for flexible PCB designs.
- Ideal for miniaturized applications including displays, touch panels, consumer electronics, and medical equipment.
Product Description
Wurth Elektronik 686104183522 is a 4 Way Horizontal Female FPC Connector with 1 mm pitch and surface mount termination. This WR-FPC series connector offers a low profile height of just 1.2 mm, perfect for high density and space-saving PCB designs.
The connector features a zero insertion force (ZIF) flip lock actuator that allows easy insertion and secure locking of the flexible printed circuit (FPC). The actuator pivots fully open for FPC placement and locks back to provide a strong mechanical and electrical connection.
Phosphor bronze contact material with tin over nickel plating guarantees reliable conductivity and corrosion resistance. The housing is manufactured from liquid crystal polymer, providing excellent mechanical strength and thermal stability up to a maximum operating temperature of 85°C.
The connector supports a current rating of 800mA and a voltage rating of 50V AC, suitable for low power signal applications. It has a bottom contact position in a single row layout and a horizontal orientation, enabling flexible and compact PCB mount configurations. Brass solder tabs on each side enhance retention and mechanical stability on the PCB.
This connector series is ideal for miniaturized electronic devices such as displays, touch panels, personal computers, tablets, mobile phones, cameras, as well as industrial, business, and medical equipment requiring reliable and compact FPC connections.
Features a low profile design for space-constrained applications. Flip lock actuator enables easy FPC insertion with high retention force. Solder tabs secure connector firmly to PCB. Top and bottom contact styles available for design flexibility.
Supports 1 mm pitch and 4 contacts. Rated for -25°C to 85°C operating temperature range. Suitable for consumer electronics, industrial, and medical usage. Explore more electronic connectors at EnvMart to find components suited for your specific industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 800mA, making it suitable for low power signal applications.
The connector is rated for a voltage of 50V AC, which is appropriate for various electronic applications.
It features phosphor bronze contacts plated with tin over nickel for conductivity, and the housing is made of liquid crystal polymer for stability.
This unit is rated for an operating temperature range of -25°C to 85°C, suitable for various environments.
It uses surface mount termination and includes brass solder tabs for secure retention and mechanical stability on the PCB.
The connector has a pitch of 1 mm and features 4 contacts arranged in a single row.
This connector is designed with a horizontal orientation, allowing for flexible PCB designs.
It features a zero insertion force (ZIF) flip lock actuator that allows for easy insertion and secure locking of the FPC.
It is ideal for miniaturized applications including displays, touch panels, consumer electronics, and medical equipment.
The contact position is bottom, which is designed for a single row layout.
The contacts are plated with tin over nickel, which provides reliable conductivity and corrosion resistance.
The country of origin for this connector is India.
