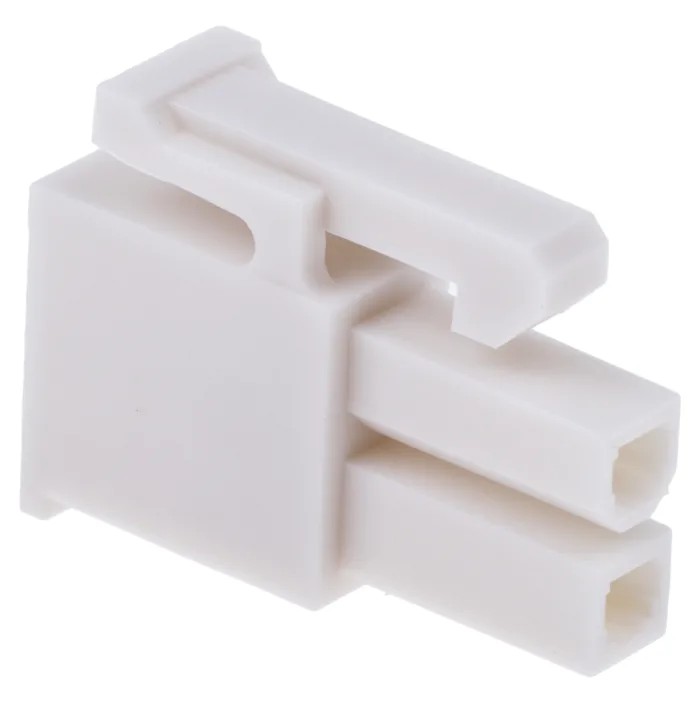

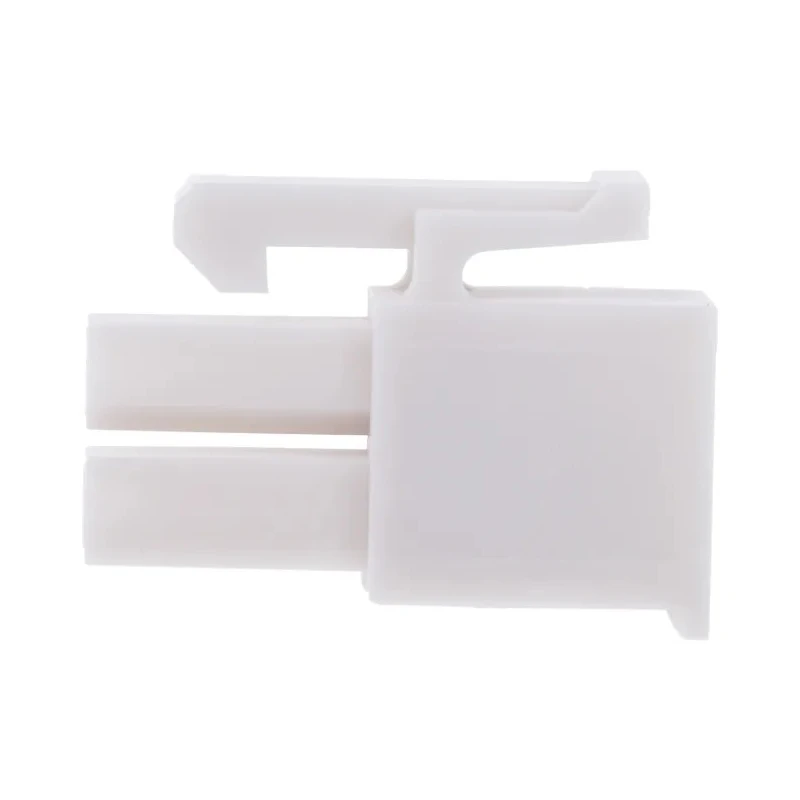

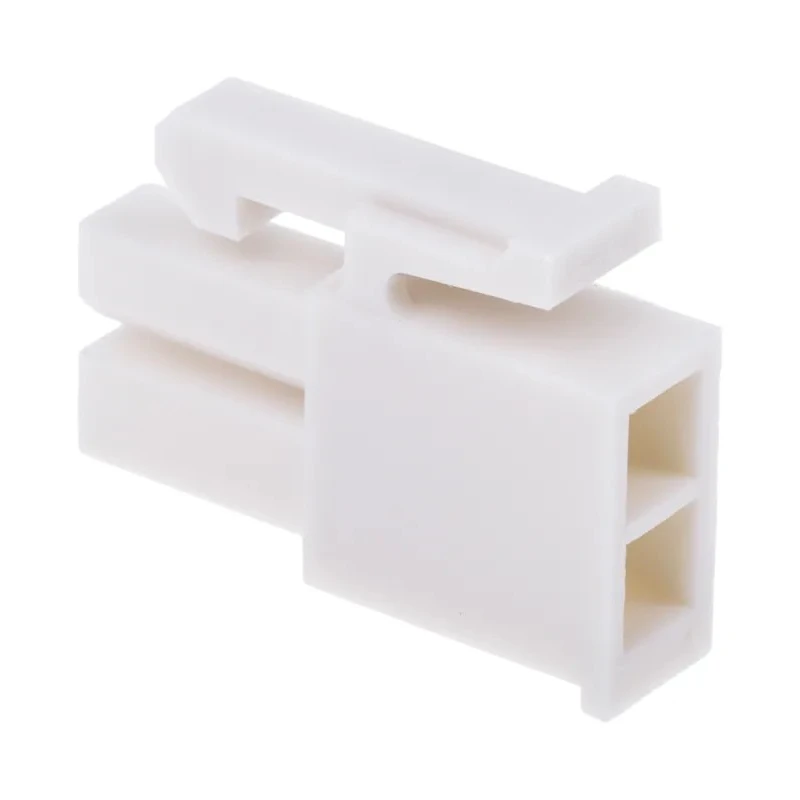

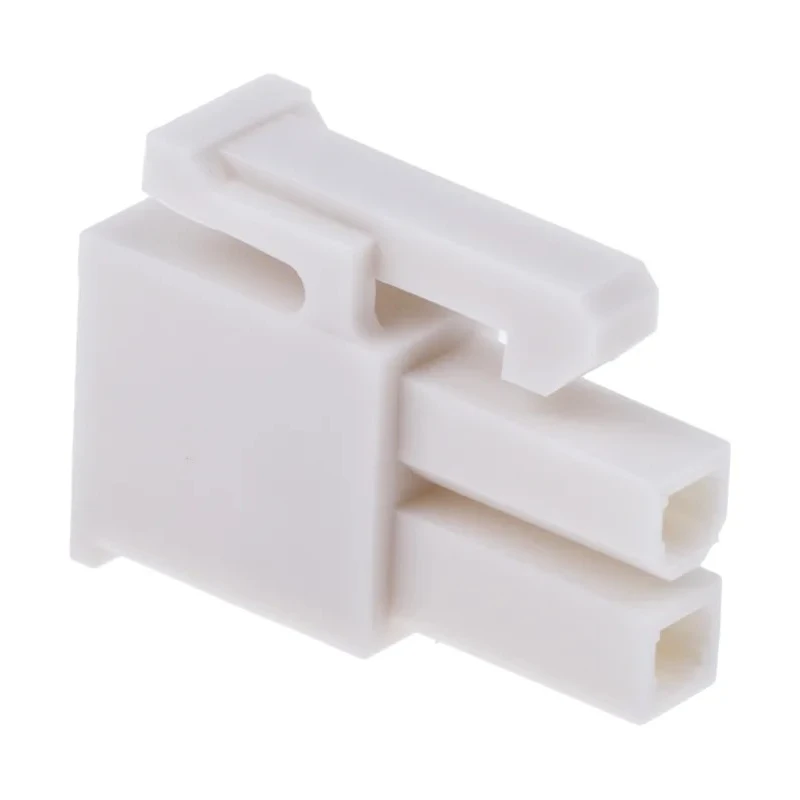

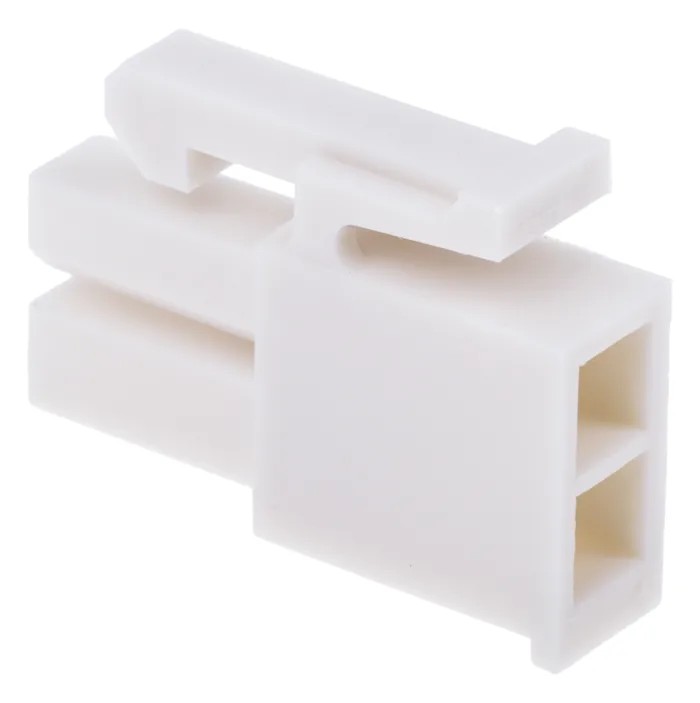

Molex Mini-Fit Female Connector Housing 4.2 mm Pitch 2 Way 2 Row Straight Nylon Cable Mount 39-01-2025
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 5.4mm |
| Width | 19.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals |
| Number of Contacts | 2 |
| Connector Gender | Female |
Key Features
- Constructed from abrasion- and chemical-resistant nylon material.
- Designed for cable mount applications with a positive locking mechanism.
- Compact dimensions of 5.4 mm length, 19.6 mm width for space-saving designs.
- Suitable for wire-to-wire and wire-to-board connections.
- Rated for currents up to 13A per contact ensuring reliable power transmission.
- Wide operating temperature range from -40°C to +105°C for harsh environments.
- Polarized terminals prevent mismating and provide audible click on mating.
- Applications include automotive, industrial automation, data networking, and medical devices.
Product Description
Molex 39-01-2025 Mini-Fit Female Connector Housing is engineered for efficient PCB setups requiring a reliable female connector with 4.2 mm pitch. Featuring two rows and two ways, this straight cable mount housing enables compact and secure wire connections suitable for demanding industrial, automotive, and electronic applications.
Manufactured from rugged nylon, the housing resists abrasion and chemicals, contributing to durable performance. It includes a positive locking mechanism that prevents accidental unmating caused by shocks or vibrations, and the polarized design ensures correct alignment with an audible confirmation click when mated.
Designed for currents up to 13 amps per contact, the housing supports both wire-to-wire and wire-to-board connectivity, making it versatile for various power and signal transmission needs. The compact structure measures 5.4 mm in length, 19.6 mm in width, enabling space-efficient installations within tight electronic assemblies.
Operating reliably in temperatures ranging from -40°C to +105°C, it meets the rigorous demands of industrial automation, automotive electronics, medical devices, and data communications networking.
Constructed using nylon for durability and chemical resistance. Polarized terminals to prevent incorrect mating and ensure safety. Positive locking mechanism secures connections against vibration and shock. Supports up to 13A current per contact for high power applications.
Compact 5.4 mm length and 19.6 mm width fit constrained spaces. Wide temperature range supports harsh environment applications. Suitable for automotive, industrial, communication, and medical industries. Designed for cable mount use with Mini-Fit Jr. series terminals.
This connector housing is essential for applications demanding reliable, compact, and flexible power connections. Explore the full range of Molex Mini-Fit Jr. series for complete connector solutions.
Discover more products in Electronics Components and Connector Housings section at EnvMart for professional-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for currents up to 13A per contact, ensuring reliable power transmission for various applications.
The compact dimensions of this connector housing are 5.4 mm in length and 19.6 mm in width, making it suitable for space-saving designs.
It is constructed from nylon, which is abrasion- and chemical-resistant, contributing to its durability in various environments.
The operating temperature range for this model is from -40°C to +105°C, allowing it to function in harsh environments.
This connector housing is designed for use with 45750 Mini-Fit Plus HCS Crimp Terminals and 5556 Mini-Fit Female Crimp Terminals.
It supports both wire-to-wire and wire-to-board connections, making it versatile for various power and signal transmission needs.
The positive locking mechanism prevents accidental unmating caused by shocks or vibrations, ensuring secure connections during operation.
This model features a straight orientation, which is typical for cable mount applications.
It has two rows and two contacts, allowing for efficient and compact arrangements in electronic assemblies.
It is suitable for automotive, industrial automation, data networking, and medical devices, providing flexibility across various industries.
The polarized terminals are designed to prevent mismating and provide an audible click on mating, ensuring correct alignment.
The country of origin for this connector housing is India.
