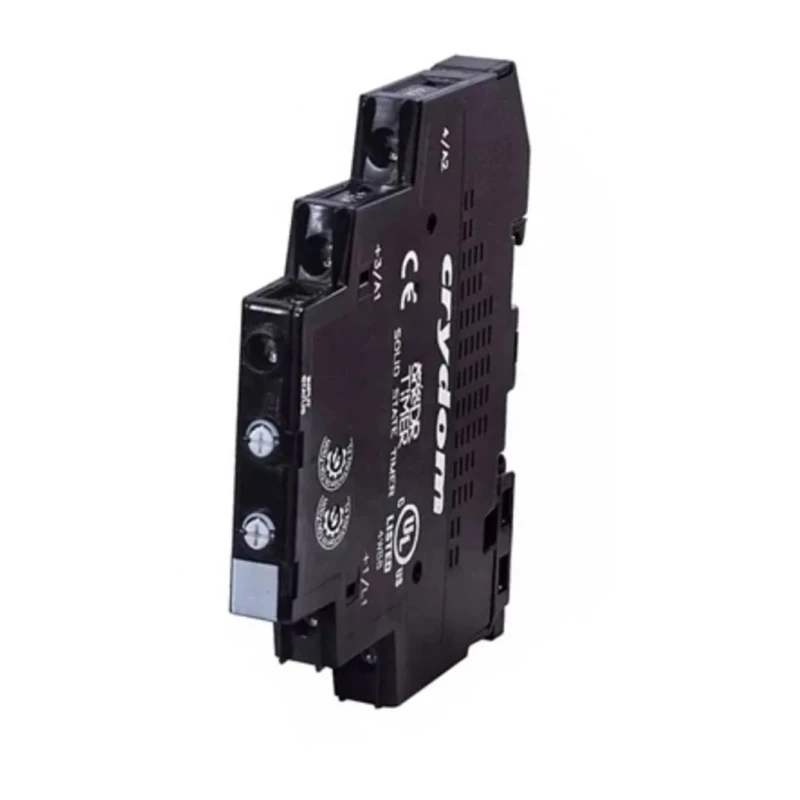

Crydom OneDR Series DIN Rail Timer Relay, 2-Contact, 12 to 24 V ac/dc, 0.1 Seconds to 100 Hours, 1-Function, SPST DRTH24D06

The Crydom OneDR Series DIN Rail Timer Relay model DRTH24D06 is a precision timer relay designed for electrical automation applications, suitable for mounting on DIN rails. Operating on both AC and DC supply voltages ranging from 12 to 24 V, this solid-state timer relay supports a time range spanning from 0.1 seconds to 100 hours, offering excellent versatility for control circuits requiring timed relay switching.

Featuring 2 contacts configured as a single pole single throw (SPST), this relay supports a continuous contact current of up to 6 A, making it ideal for medium-load switching applications. The device operates in interval mode with a single timer function, which enables precise delay control in industrial automation, HVAC systems, manufacturing processes, and other commercial electrical control setups.

The compact 11 mm wide DIN Rail mount enclosure is constructed with an IP20 rated housing that incorporates a unique integrated heat sink for enhanced thermal dissipation. This ensures stable operation even in environments with ambient temperatures ranging from -30°C to 80°C.

Installation and wiring are facilitated by screw terminals, providing a secure and reliable connection. The relay also includes an LED status indicator for easy functional verification during setup and maintenance, reducing downtime and troubleshooting complexity.

The Crydom OneDR series solid state timer relays are RoHS compliant and designed to meet the stringent quality standards of electrical automation systems. This model offers a robust and compact solution for time-controlled switching with wide voltage compatibility and extended timing ranges.

Compact DIN Rail mounting with 11 mm width for easy integration. Supports multifunction timer operation with 1 timer function. Single pole single throw (SPST) contact configuration rated for 6 A contact current. Wide operating temperature range from -30°C to 80°C suitable for diverse environments.

Screw terminal type ensures secure and reliable wiring connections. Interval mode timing with a precise time range of 0.1 seconds to 100 hours. IP20 housing with integrated heat sink design for optimal thermal management.

LED status indicator allows quick operational monitoring.

This Crydom DIN Rail Timer Relay is suitable for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and commercial electrical timing applications. Browse more Timer Relays and automation components from the Crydom OneDR series on EnvMart for dependable performance and quality.
