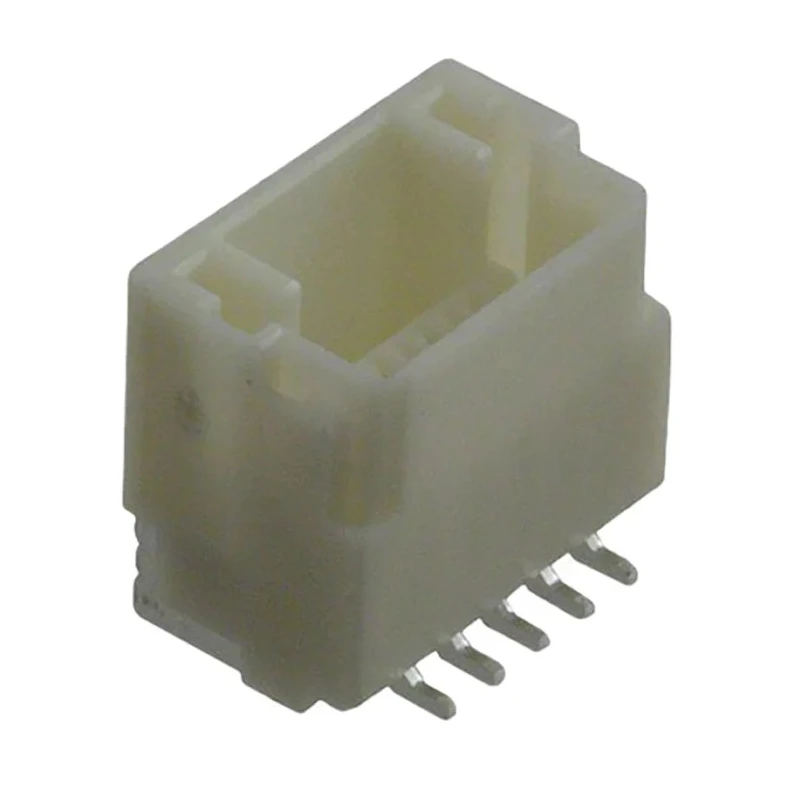

JST NSH Series Straight Surface PCB Header 5 Contacts 1 mm Pitch 1 Row Shrouded BM05B-NSHSS-TBT(LF)(SN)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | JST |
| Orientation | Straight |
| Current | 1A |
| Model | BM05B-NSHSS-TBT(LF)(SN) |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | NSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector system supports wire-to-board interface for efficient PCB connections.
- Operates reliably within a temperature range of -25°C to 85°C.
- Features a straight orientation with surface mount type to fit compact PCB designs.
- Constructed with copper alloy contacts plated with tin for durability and conductivity.
- Rated for 1 amp current and 50 volts voltage ensuring safe electronic operations.
- Includes a shrouded design to prevent mis-mating and enhance connection security.
- The male contact gender with solder termination ensures secure and easy PCB mounting.
- Manufactured in Japan, guaranteeing high quality standards.
Product Description
The JST BM05B-NSHSS-TBT(LF)(SN) is a NSH Series Straight Surface PCB Header designed for wire-to-board connections in compact electronic assemblies. It features 5 male contacts arranged in a single row with a 1 mm pitch, optimized for reliable surface mounting on PCBs.
This header supports current ratings of 1 A and voltage ratings up to 50 V, suitable for low-power applications. The contact material is copper alloy with tin plating which provides excellent electrical performance and corrosion resistance. Its operating temperature range from -25°C to 85°C allows use in various environmental conditions.
The shrouded design of the NSH Series header ensures proper alignment and secure mating with corresponding sockets. Its straight orientation and surface mount configuration cater to streamlined PCB layouts, making it ideal for industrial electronics, telecommunications, instrumentation, and consumer electronic devices.
JST’s NSH Series connectors incorporate a unique spring feature that lowers insertion force, improving assembly efficiency. The latch locking mechanism produces an audible click when mated, assuring connection integrity.
The connector system supports wire-to-board interface for efficient PCB connections. Operates reliably within a temperature range of -25°C to 85°C. Features a straight orientation with surface mount type to fit compact PCB designs.
Constructed with copper alloy contacts plated with tin for durability and conductivity. Rated for 1 amp current and 50 volts voltage ensuring safe electronic operations. Includes a shrouded design to prevent mis-mating and enhance connection security.
The male contact gender with solder termination ensures secure and easy PCB mounting. Manufactured in Japan, guaranteeing high quality standards.
This product is suitable for use in a wide range of electronic manufacturing industries such as industrial control panels, automation equipment, consumer electronics, and communication devices. The robust design and precise manufacturing make it a dependable solution for signal and power transmission on PCBs.
Explore our extensive range of PCB connectors and electronic components on EnvMart for reliable sourcing and expert support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 50 volts.
It is rated for a current of 1 amp.
The pitch size of the contacts is 1 mm.
The operating temperature range is from -25°C to 85°C.
This PCB header features 5 male contacts arranged in a single row.
It uses solder termination for secure PCB mounting.
The contacts are constructed from copper alloy and are plated with tin.
The orientation of this model is straight, designed for surface mounting.
This connector is shrouded, which helps prevent mis-mating.
This product is manufactured in Japan, ensuring high quality standards.
It is suitable for use in industrial control panels, automation equipment, consumer electronics, and communication devices.
The shrouded design ensures proper alignment and secure mating with corresponding sockets, enhancing connection security.
