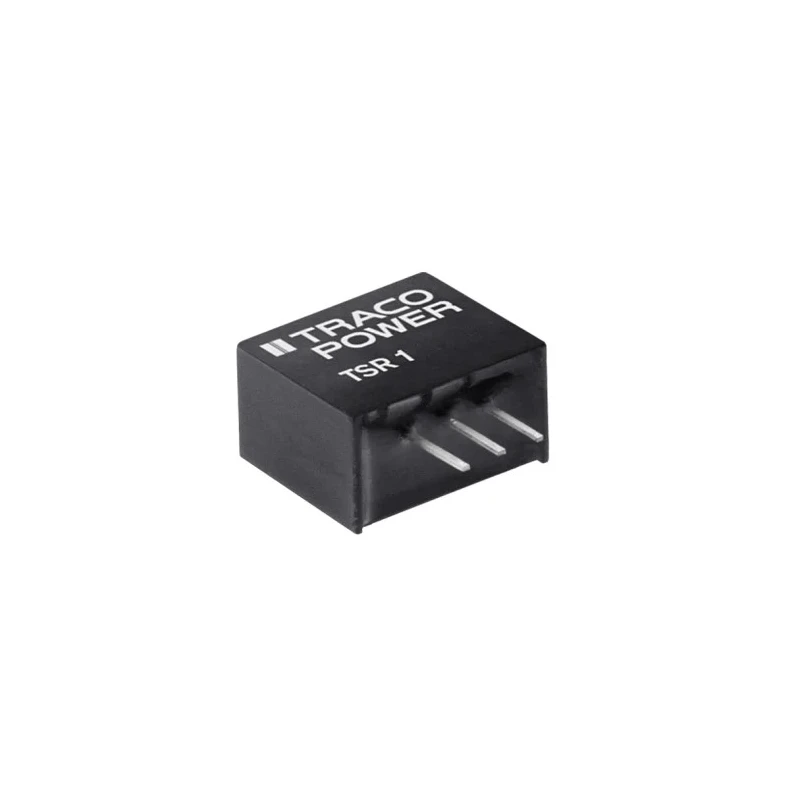

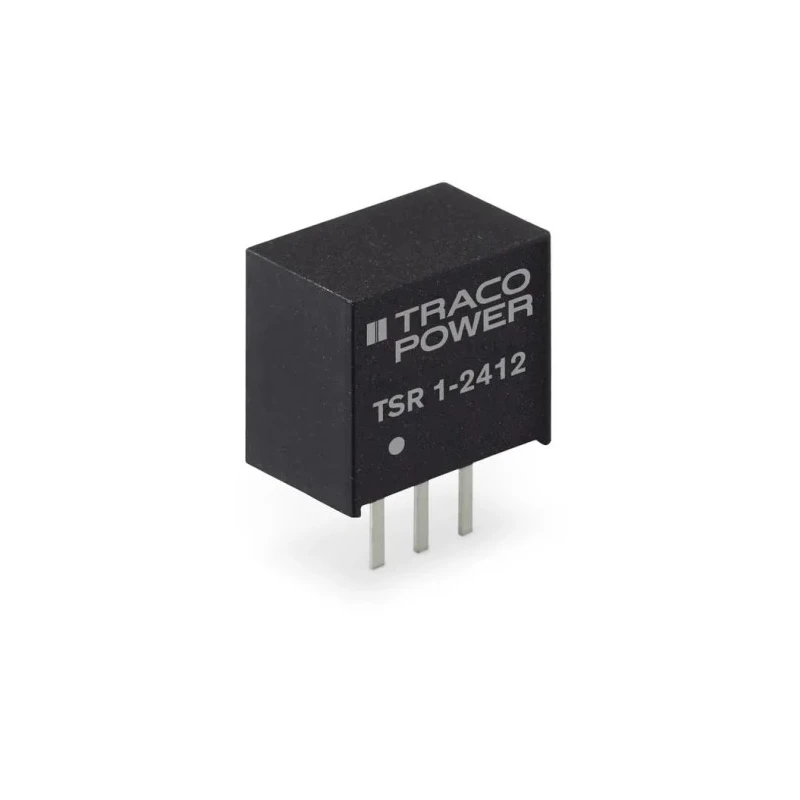

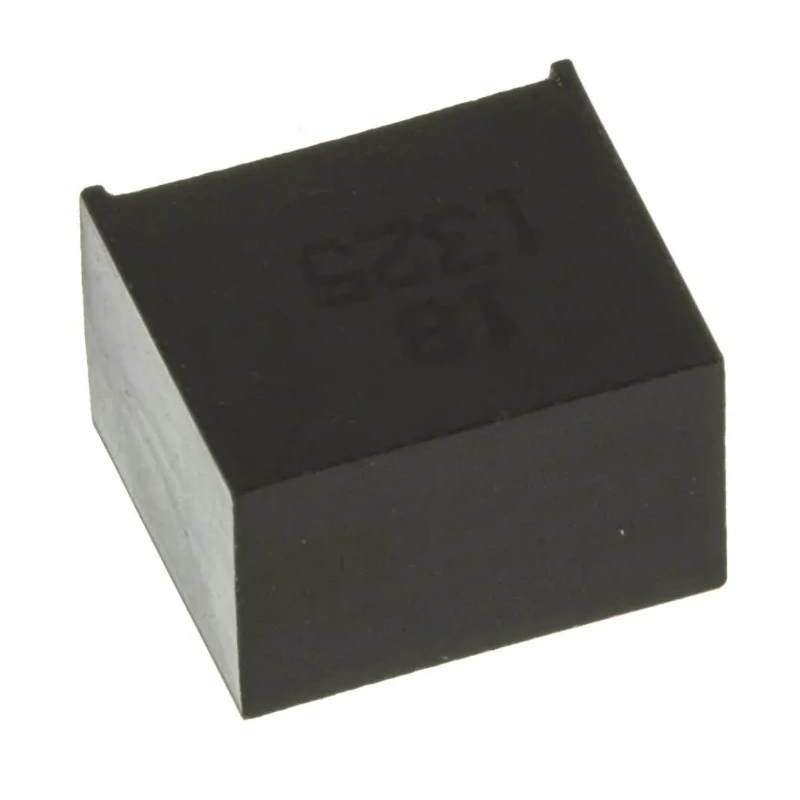

TRACOPOWER Switching Regulator Through Hole SIP-3 Package 12V DC Output Voltage 1A Output Current 12W Power TSR 1-24120

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Regulator Through Hole SIP-3 Package 12V DC Output Voltage 1A Output Current 12W Power TSR 1-24120

Name: TRACOPOWER Switching Regulator Through Hole SIP-3 Package 12V DC Output Voltage 1A Output Current 12W Power TSR 1-24120
Brand: TRACOPOWER
SKU: 204450
Price: 8.95 USD
Availability: InStock



Category Switching Regulator Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	12W
Efficiency	95%
Length	11.7mm
Model	TSR 1-24120
Depth	10.2mm
Gross Weight	1.9g
Width	10.2mm
Mount Type	Through Hole
Series	TSR 1
Output Current	1A
Maximum Operating Temperature	85°C
Package Type	SIP-3
Load Regulation	±0.4 %
Minimum Operating Temperature	-40°C
MTBF	5350000h
Number of outputs	1
Ripple and Noise	75mV Pk-Pk
Maximum Input Voltage	36V dc
Line Regulation	±0.2 %
Standards/Approvals	CE
Minimum Input Voltage	15V
Output Voltage 1	12V dc

Key Features

Wide input voltage range from 15V to 36V DC suitable for diverse power sources.
Through hole SIP-3 package allows secure and easy PCB mounting.
High efficiency up to 95% ensures energy-efficient power conversion.
Low ripple and noise voltage of 75mV peak-to-peak reduces electrical interference.
Operates reliably in extreme temperatures from -40°C to +85°C for harsh environments.
Integrated short-circuit protection enables automatic recovery and minimizes downtime.
Compact dimensions of 11.7mm length, 10.2mm width, and 10.2mm depth for space-saving installation.
Long MTBF of 5,350,000 hours ensures excellent reliability for industrial applications.

Product Description

TRACOPOWER TSR 1-24120 is a switching regulator designed for through hole mounting in a SIP-3 package, delivering a regulated 12V DC output voltage at 1A output current with a power rating of 12W. It offers an efficient solution for power conversion in industrial, electronic component, and power management applications.

This regulator supports a wide input voltage range of 15 to 36V DC, making it compatible with many power supplies including renewable energy installations and industrial power systems. It operates in extreme environments, tolerating temperatures from -40°C up to +85°C, which suits warehouse, construction industry, and harsh electrical environments.

With up to 95% efficiency and low ripple noise at 75mV peak-to-peak, this device minimizes electrical disturbances and power loss during conversion. Its integrated short-circuit protection feature enables it to automatically recover from faults, reducing downtime and increasing system reliability.

The compact dimensions (11.7mm length × 10.2mm width × 10.2mm depth) and light weight (1.9g) allow easy integration into PCB assemblies. The regulator offers precise voltage control with line regulation of ±0.2% and load regulation of ±0.4%, ensuring stable output under varying electrical loads.

Wide input voltage range between 15V and 36V DC for versatile power supply compatibility. Through hole SIP-3 package for secure PCB mounting and enhanced mechanical stability. High efficiency reaching 95%, reducing power consumption and heat generation.

Low ripple and noise voltage ensures minimal electrical interference in sensitive electronics. Extended operating temperature range from -40°C to +85°C for reliable performance in demanding conditions. Automatic short-circuit protection enhances system robustness and uptime.

Compact size and lightweight design facilitate space-saving applications. High MTBF of 5,350,000 hours for dependable long-term operation. Compliance with CE safety and quality standards. Accurate voltage regulation improves reliability in power-sensitive applications.

This switching regulator is ideally suited for industrial power supply solutions, electronics components manufacturing, and renewable energy systems integrating stable voltage regulation. Its combination of compact form factor, efficiency, and durability meets the demands of modern electrical and electronics equipment.

Explore a wide range of voltage converters and Switching Regulators on EnvMart to support diverse industrial and commercial power management requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model provides a regulated output voltage of 12V DC with an output current of 1A, delivering a total power rating of 12W.

It supports a wide input voltage range from 15V to 36V DC, making it compatible with various power sources.

The compact dimensions of this unit are 11.7mm in length, 10.2mm in width, and 10.2mm in depth.

This switching regulator achieves high efficiency of up to 95%, which helps reduce power consumption and heat generation during operation.

It features a low ripple and noise voltage of 75mV peak-to-peak, which minimizes electrical interference.

It operates reliably in extreme temperatures ranging from -40°C to +85°C, suitable for harsh environments.

It includes integrated short-circuit protection, allowing for automatic recovery and minimizing downtime.

This unit is designed for through hole mounting in a SIP-3 package, ensuring secure and stable PCB installation.

It provides load regulation of ±0.4% and line regulation of ±0.2%, ensuring stable output under varying loads.

The TSR 1-24120 has a long mean time between failures (MTBF) of 5,350,000 hours, indicating excellent reliability for industrial applications.

Yes, it complies with CE safety and quality standards, ensuring it meets specific regulatory requirements.

This model is ideally suited for industrial power supply solutions, electronics component manufacturing, and renewable energy systems that require stable voltage regulation.
