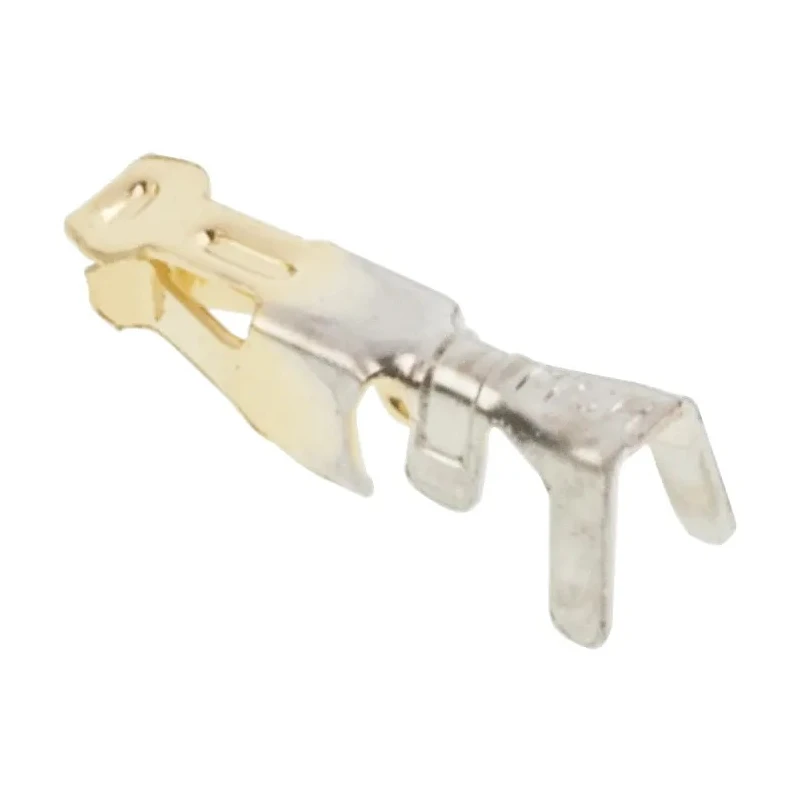

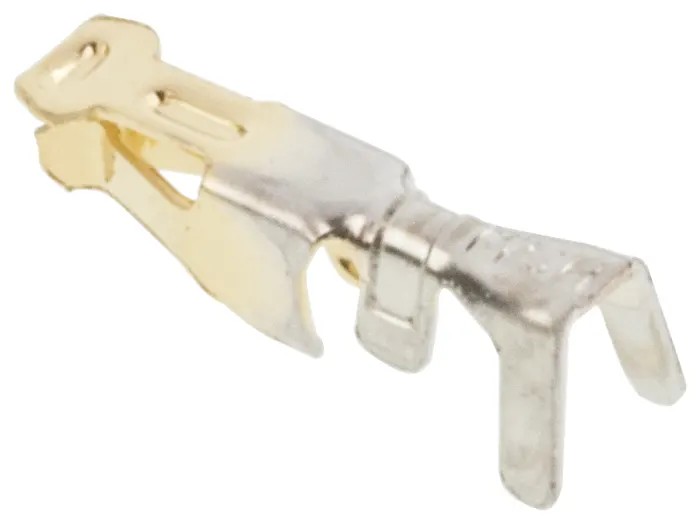

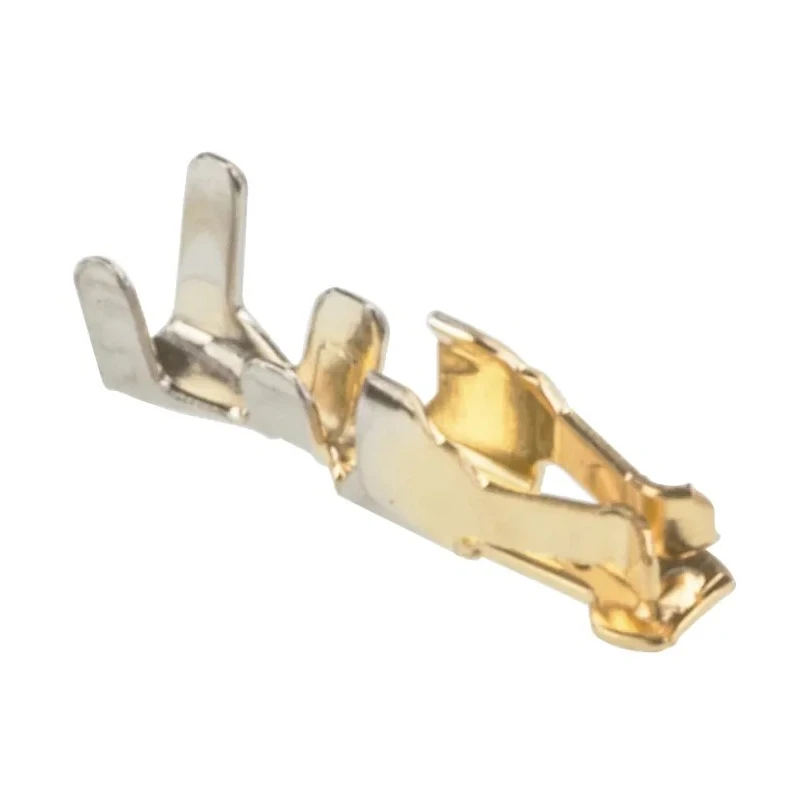

Molex 50394 Series Female Crimp Terminal 2A Current Rating, 30 AWG Min to 24 AWG Max Wire Size 50394-8100

Name: Molex 50394 Series Female Crimp Terminal 2A Current Rating, 30 AWG Min to 24 AWG Max Wire Size 50394-8100
Brand: Molex
SKU: 209155
Price: 0.19 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Current	2A
Gender	Female
Contact Material	Phosphor Bronze
Series	50394
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Milli-Grid Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	40mΩ

Key Features

The terminal features a gold-plated contact for superior corrosion resistance.
Constructed from tough phosphor bronze ensuring mechanical durability in harsh environments.
Supports a broad operating temperature range from -40°C to +105°C for versatile use.
Locking tangs secure the terminal in Milli-Grid connector housings, preventing misalignment.
Capable of withstanding up to 50 mating cycles for multiple connect-disconnect uses.
Compatible with Molex Milli-Grid series connector housings for easy integration.
Ideal for telecommunications, automotive, computer, and robotics applications.

Product Description

Molex 50394-8100 Female Crimp Terminal from the 50394 series is designed to provide reliable and efficient electrical connections with a 2A current rating. This terminal supports wire sizes from 30 AWG minimum to 24 AWG maximum, accommodating a versatile range of wiring needs.

The terminal is engineered with a robust phosphor bronze contact material that ensures durability and mechanical strength in demanding environments. Its gold plating offers excellent corrosion resistance, enhancing long-term electrical conductivity and reliability.

Operating within a broad temperature range of -40°C to +105°C, this crimp terminal is suitable for use in challenging conditions across multiple industries.

The secure locking tangs ensure a firm fit within the Milli-Grid connector housings, reducing the risk of disconnections or misalignment during use. Rated for up to 50 mating cycles, the terminal supports repeated assembly and disassembly without compromising performance.

Gold-plated contact enhances corrosion resistance and durability. Phosphor bronze contact material ensures mechanical strength. Supports a wide range of wire sizes between 30 AWG and 24 AWG. Operating temperature range from -40°C to +105°C.

Locking tangs for secure connection in Milli-Grid housings. Rated for 2A continuous current capacity. Suitable for telecommunications, automotive, computer, and robotics sectors.

To crimp a wire, use a compatible Molex hand crimping tool for a secure and reliable connection. This product is part of Molex's Milli-Grid connector system, offering a dense 2 x 2 mm grid layout suitable for board-to-board and cable-to-board applications in high-density electronic designs.

This female crimp terminal is ideally applied in industrial, telecommunications, automotive, computer hardware manufacturing, and robotics industries, where dependable electrical connections are critical. The product's design aligns with the needs for high-precision, repeatable, and corrosion-resistant connectors.

Explore additional Molex components and accessories in the Crimp Contacts category to complete your application requirements.
