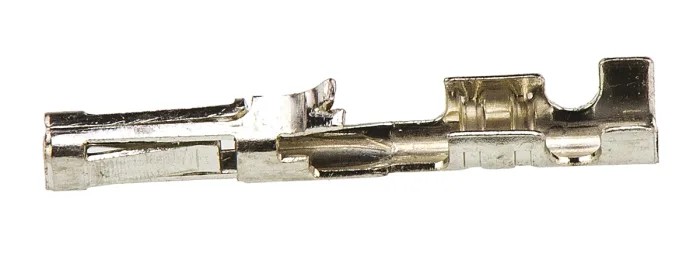

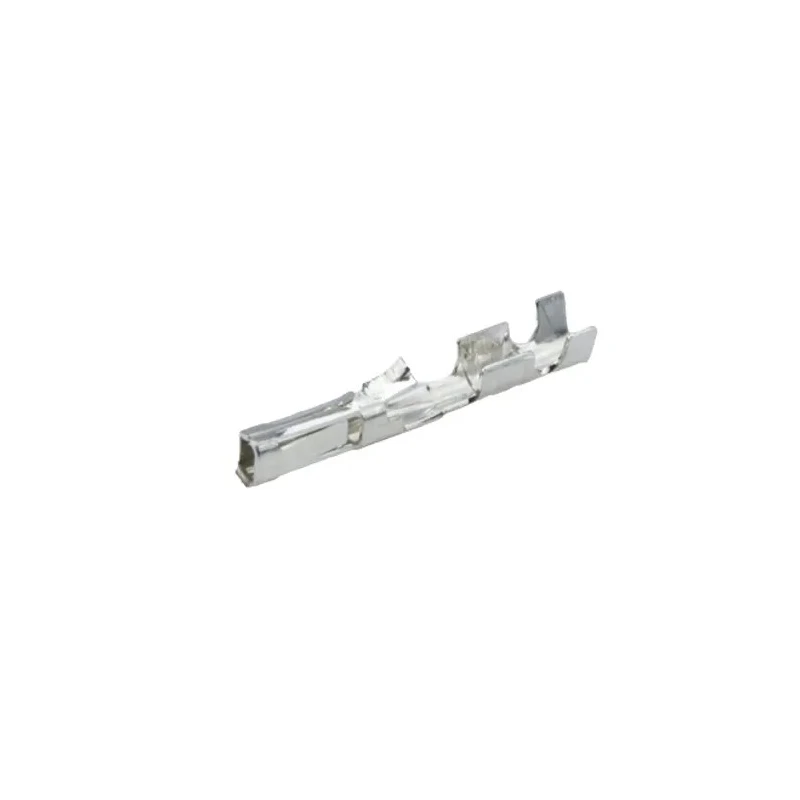

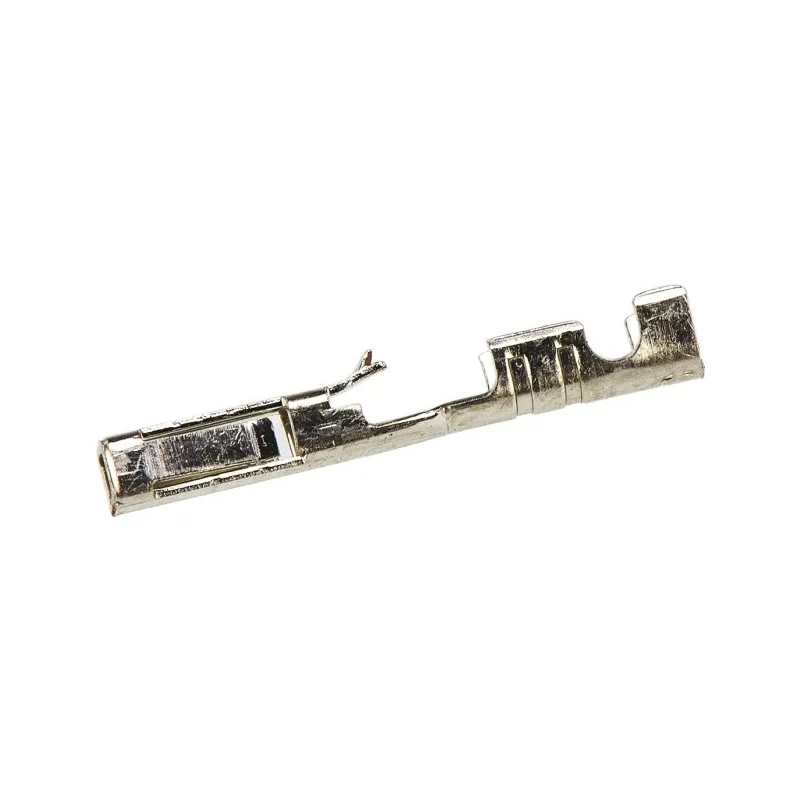

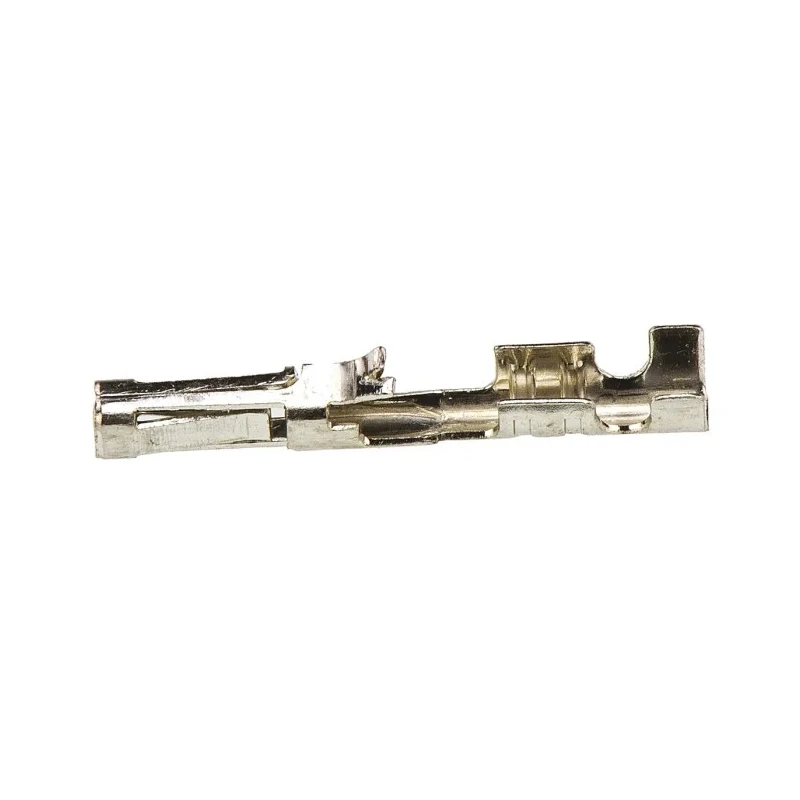

Molex 70058 Series Female Crimp Terminal 24 AWG Min Crimp 22 AWG Max Wire Size 3A Current Tin Contact Plating 16-02-0102
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 30 |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Constructed with durable phosphor bronze material for longevity and reliability.
- Tin plating enhances corrosion resistance ensuring performance in harsh environments.
- Operates within temperatures ranging from -40°C to 105°C for versatile industrial applications.
- Designed for easy crimp termination with standard hand crimping tools.
- Lightweight design at 0.071g minimizes strain on cable assemblies.
- Suitable for consumer electronics, medical equipment, communication networks, and automotive applications.
- Compatible with Molex SL Series housings including 70058, 71851, and 70021 series.
Product Description
Molex 16-02-0102 Female Crimp Terminal from the 70058 Series offers a highly reliable connection solution for SL Connector Housings. It supports wire sizes from 24 AWG minimum to 22 AWG maximum and can sustain a current of up to 3 Amperes. The contact is made from phosphor bronze, giving it excellent mechanical strength and durability necessary for industrial and electronic equipment use.
The tin plating on the contact surface provides enhanced protection against corrosion and oxidation, ensuring long-term performance even in harsh operating environments.
Operating temperature range from -40°C to 105°C makes it suitable for extreme environmental conditions encountered in automotive, medical devices, consumer electronics, and communication network installations.
This crimp terminal features a lightweight design weighing approximately 0.071 grams, which reduces cable stress and aids in easy handling during assembly. Installation requires only a standard hand crimping tool, making it practical for efficient cable termination tasks in manufacturing and maintenance operations.
Durable phosphor bronze contact material offering strong mechanical properties. Tin plating improves corrosion resistance for extended service life. Supports wire sizes from 24 AWG to 22 AWG ensuring versatile use with multiple cable gauges.
Current rating of 3A suitable for low power electrical connections. Operating temperature range from -40°C to +105°C accommodates a wide range of applications. Lightweight at 0.071g minimizing physical load on wiring harnesses.
Compatible with Molex SL Series connector housings (70058, 71851, 70021).
This terminal is ideal for industrial, laboratory, automotive, medical, and communication network applications requiring secure and durable wire-to-board connections. For improved efficiency, it is supplied packaged ready for insertion into machinery.
Explore more products in the Crimp Contacts category at EnvMart for comprehensive connector solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports wire sizes from 24 AWG minimum to 22 AWG maximum.
It has a maximum current rating of 3 Amperes, suitable for low power electrical connections.
The contact material is phosphor bronze, and it features tin plating for enhanced corrosion resistance.
The operating temperature range is from -40°C to 105°C, making it suitable for various industrial applications.
It is compatible with Molex SL Series connector housings, including the 70058, 71851, and 70021 series.
This model weighs approximately 0.071 grams, which helps minimize strain on cable assemblies.
This terminal uses a crimp termination type, designed for easy assembly with standard hand crimping tools.
The maximum contact resistance is 30 milliohms, ensuring efficient electrical connections.
It is suitable for applications in consumer electronics, medical equipment, communication networks, and automotive systems.
The country of origin for this crimp terminal is the United States.
The minimum wire size supported by this terminal is 0.2 mm².
The maximum wire size that this terminal can accommodate is 0.3 mm².
