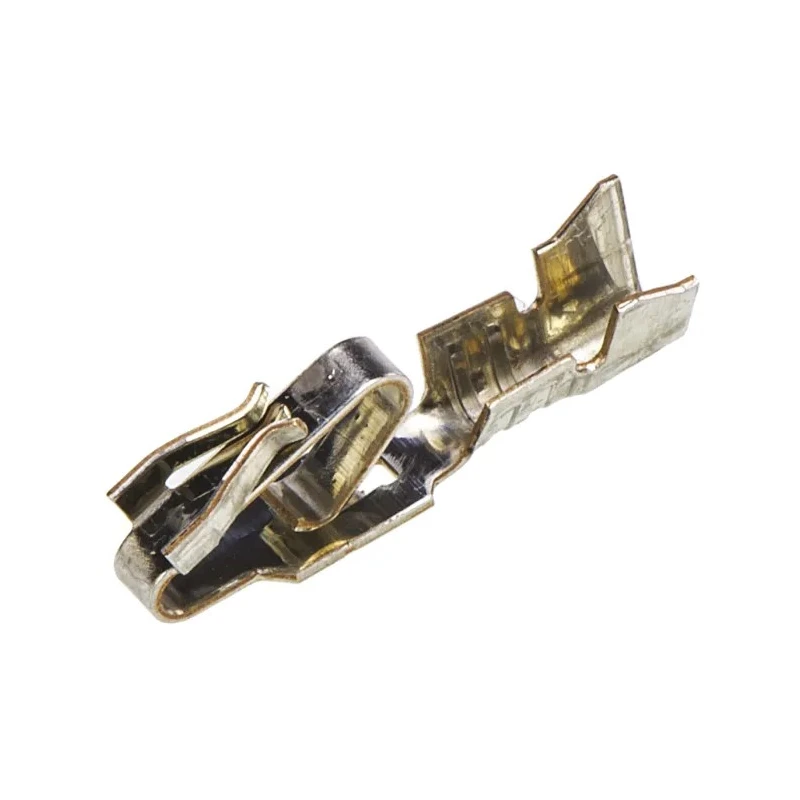

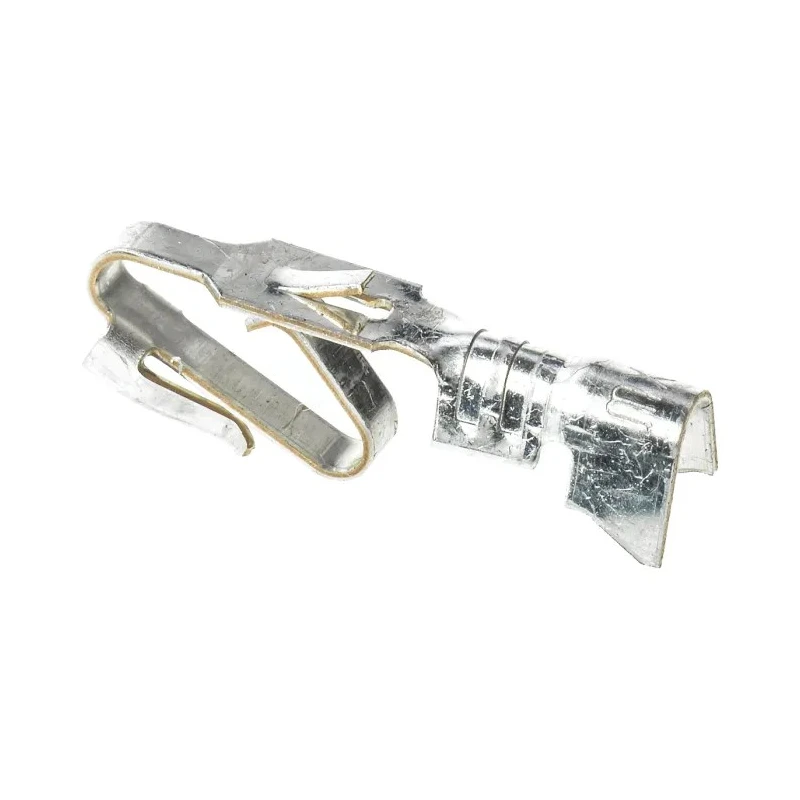

Molex 6838 Series Female Crimp Terminal 7A Current, 20 AWG Min, 18 AWG Max, Tin Plated 08-52-0113

Name: Molex 6838 Series Female Crimp Terminal 7A Current, 20 AWG Min, 18 AWG Max, Tin Plated 08-52-0113
Brand: Molex
SKU: 209102
Price: 0.1 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	7A
Gender	Female
Contact Material	Phosphor Bronze
Series	6838
Termination Type	Crimp
Maximum Operating Temperature	75°C
Minimum Operating Temperature	0°C
For Use With	KK 396 Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	6mΩ

Key Features

Constructed from phosphor bronze for high conductivity and durability.
Contact surfaces are tin plated to enhance corrosion resistance.
Termination by crimping method ensures secure electrical connections.
Suitable for operating temperatures ranging from 0°C to 75°C.
Designed without specific compliance standards for broad industrial flexibility.
Maximum contact resistance is 6 milliohms for efficient current flow.
Compact 3.96 mm Molex KK range female contact type.
Intended for electronic and power connector applications.

Product Description

Molex 08-52-0113 is a female crimp terminal part of the 6838 Series, engineered for reliable electrical connections within electronic assemblies. It is compatible with KK 396 connector housings and designed to support a continuous current of 7 amperes. The terminal accepts wire sizes ranging from 20 AWG minimum (0.5 mm²) to 18 AWG maximum (0.8 mm²), making it suitable for various wiring configurations in electronic components and power connectors.

Constructed from phosphor bronze, this terminal offers excellent mechanical strength and enhanced electrical conductivity. The tin plating on the contact surfaces provides corrosion resistance, ensuring long-lasting performance in industrial environments. The crimp termination technique guarantees a secure and stable electrical connection, increasing the reliability of assemblies in industrial, electronic, and manufacturing applications.

Operating temperatures range from 0°C to 75°C, accommodating a variety of usage conditions without compromising terminal integrity. The maximum contact resistance is rated at 6 milliohms, facilitating efficient signal and power transmission.

This component is designed without specific industry certifications, making it a versatile choice for general-purpose connector requirements in electronics and electrical engineering. The terminal's 3.96 mm size fits the Molex KK series, widely recognized in PCB and wire housing applications.

Phosphor bronze construction for durability and conductivity. Tin plated contact surfaces for corrosion resistance. Crimp termination for stable electrical connections. Supports 7A continuous current capacity. Wire size compatibility: 20 AWG minimum, 18 AWG maximum.

Operating temperature range from 0°C to 75°C. Maximum contact resistance of 6 milliohms. Compatible with KK 396 connector housing.

This Molex female crimp terminal is suitable for use in electronics, power connectors, industrial automation, and manufacturing sectors. Its robust construction and reliable performance characteristics make it ideal for enhancing electrical connectivity in assemblies requiring dependable crimp terminals.
