TDK Standard Metal Oxide Varistor 265 pF Capacitance 25 A Clamping Voltage 2970 V Model B72210S0231K101

Free Delivery in India | Lowest Global Shipping Charges

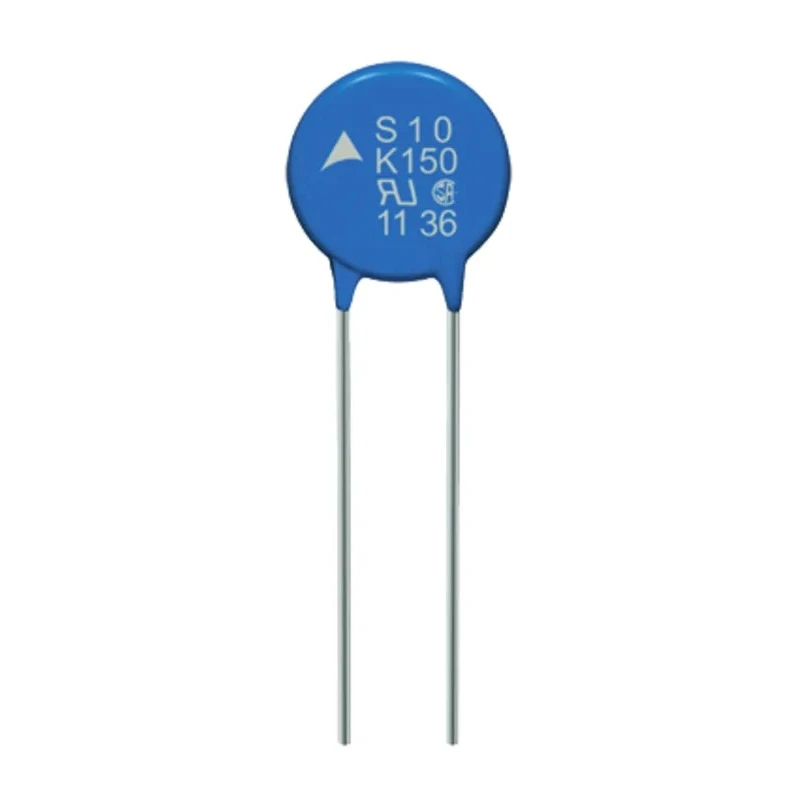

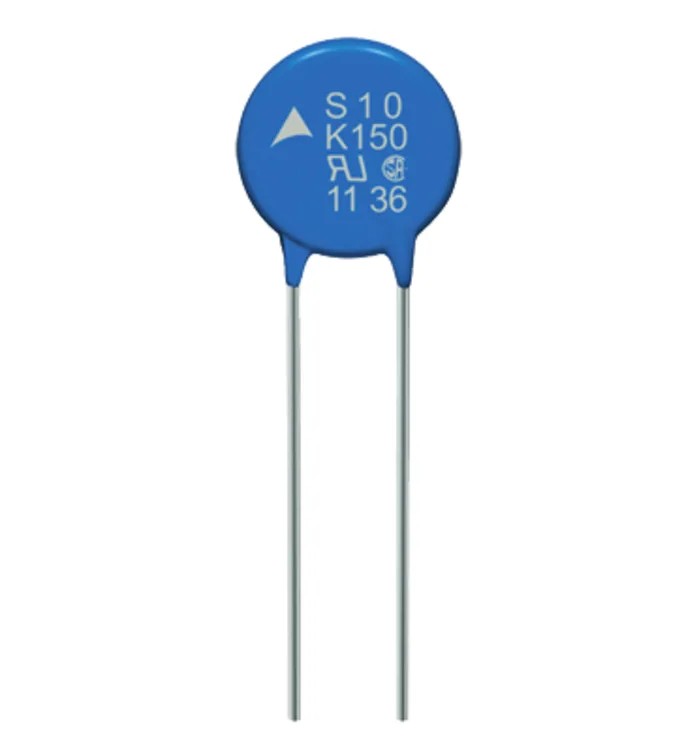

TDK Standard Metal Oxide Varistor 265 pF Capacitance 25 A Clamping Voltage 2970 V Model B72210S0231K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	10mm
Brand	TDK
Material	Metal
THICKNESS	4.7mm
Length	12mm
Model	B72210S0231K101
Depth	14.5mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	105°C
Capacitance	265pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	CSA, CQC, UL, IEC, VDE
Pin Count	2
Termination Style	Radial
Lead Pitch	7.5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	25A
Maximum Surge Current	2.5kA
Varistor Voltage	360 V

Key Features

Designed for surge protection with a varistor voltage of 360 V.
Supports a maximum AC voltage of 1100 V and DC voltage of 1465 V.
Compact radial lead type mount with 12 mm length and 10 mm diameter.
Operates reliably in temperatures from -40°C to 105°C.
Features a 1J energy rating and 2.5kA maximum surge current capacity.
Constructed with metal oxide material and flame-retardant coating for safety.
Complies with CSA, CQC, UL, IEC, and VDE standards.

Product Description

TDK B72210S0231K101 is a standard metal oxide varistor designed to protect electronic circuits from voltage surges. Featuring a capacitance of 265 pF and a varistor voltage of 360 V, this component provides robust protection against transient overvoltage. It supports a clamping current of 25 A and a clamping voltage of 2970 V, making it suitable for high-demand surge suppression in industrial and commercial electronic applications.

The varistor uses a radial lead mount type with leads spaced 7.5 mm apart and a compact package size - 12 mm in length, 10 mm diameter, 4.7 mm thickness, and 14.5 mm depth - facilitating easy mounting on circuit boards. It can operate within a wide temperature range from -40°C to 105°C, ensuring stable performance under varying environmental conditions.

Made of metal oxide material with a flame-retardant coating, this varistor meets multiple international safety standards including CSA, CQC, UL, IEC, and VDE. It is rated for a maximum surge current of 2.5kA and an energy rating of 1J, providing reliable energy absorption capability during transient events.

Commonly used in surge protection components within power and connector applications, this varistor is ideal for industrial electronics, manufacturing equipment, and commercial electrical distribution systems requiring dependable voltage clamping and transient suppression.

Designed for surge protection with a varistor voltage of 360 V. Supports a maximum AC voltage of 1100 V and DC voltage of 1465 V. Compact radial lead type mount with 12 mm length and 10 mm diameter. Operates reliably in temperatures from -40°C to 105°C.

Features a 1J energy rating and 2.5kA maximum surge current capacity. Constructed with metal oxide material and flame-retardant coating for safety. Complies with CSA, CQC, UL, IEC, and VDE standards. Select from a wide range of Varistors and surge protection components at EnvMart to safeguard your electronic designs.
