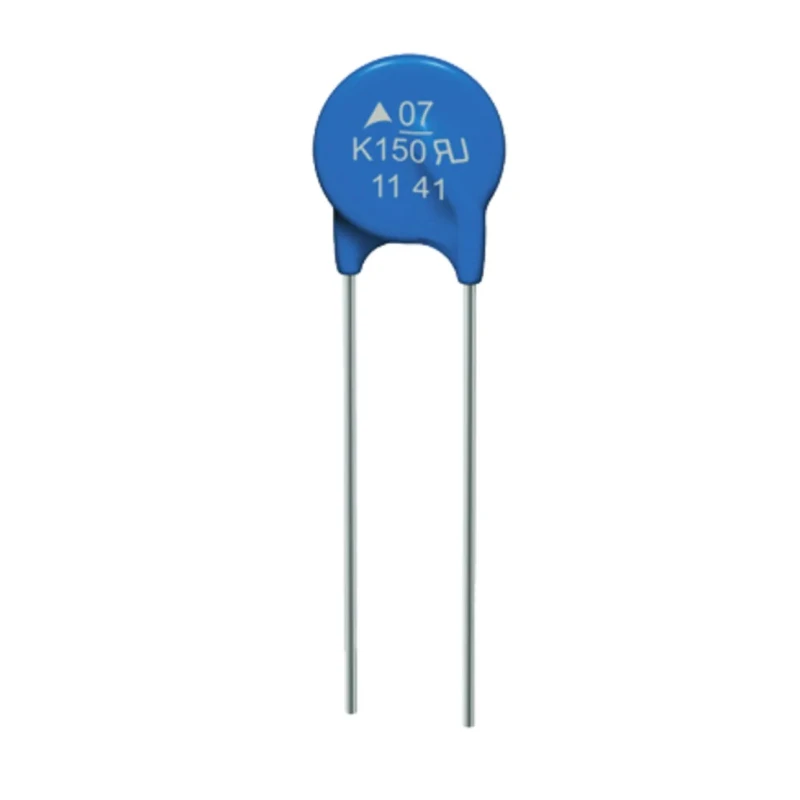

TDK Standard Metal Oxide Varistor 245 pF Capacitance 10 A Clamping 2970 V B72207S0131K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 245 pF Capacitance 10 A Clamping 2970 V B72207S0131K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	10mm
Brand	TDK
Material	Metal
THICKNESS	3.6mm
Length	9mm
Model	B72207S0131K101
Depth	11mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	105°C
Capacitance	245pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	IEC, VDE, UL, CQC, CSA
Pin Count	2
Termination Style	Radial
Lead Pitch	5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	10A
Maximum Surge Current	1.2kA
Varistor Voltage	205 V

Key Features

Leaded varistor element with flame-retardant coating for safety.
Wide operating voltage range up to 1100 VRMS ensures versatile use.
High surge current rating of up to 1.2 kA provides robust protection.
Operates reliably within -40°C to 105°C ambient temperature range.
Compact leaded design with 9 mm length and 10 mm diameter.
Radial termination style facilitates easy installation in circuits.
Conforms to IEC, VDE, UL, CQC, and CSA standards ensuring quality and safety.
Energy rating of 1 Joule accommodates transient surges effectively.

Product Description

TDK B72207S0131K101 is a Standard Metal Oxide Varistor featuring 245 pF capacitance, suitable for electronic surge protection applications. It is engineered to handle a clamping voltage of 2970 V and a clamping current of 10 A, making it a reliable component for managing voltage transients in electronic circuits.

The varistor uses lead terminations with a flame-retardant coating, enhancing safety and durability. It offers a wide operating voltage range from 11 VRMS to a maximum of 1100 VRMS, supporting flexible usage scenarios.

This device is rated for a maximum surge current of 1.2 kA and operates effectively within a temperature range of -40°C to 105°C, providing stable performance under varying environmental conditions. Its compact dimensions include a diameter of 10 mm, thickness of 3.6 mm, length of 9 mm, and a depth of 11 mm.

The radial termination style enables straightforward mounting on printed circuit boards, complemented by a lead pitch of 5 mm. The varistor complies with international standards (IEC, VDE, UL, CQC, CSA), ensuring stringent quality and safety benchmarks are met.

With an energy rating of 1 Joule, the varistor can absorb transient energy spikes efficiently, protecting sensitive electronics from damage. Note that this model is not compliant with automotive standards.

Leaded varistor element with flame-retardant coating for enhanced safety. Wide voltage range suitable for diverse electronic circuits. High surge current rating ensures circuit protection. Robust operation over a wide temperature range.

Compact size for easy integration into PCB designs. Radial termination and standard lead pitch facilitate installation. Certified to major international safety and quality standards. Energy rating allows effective transient absorption.

Not automotive standard compliant.

This Varistor is ideally suited for industrial, electronic manufacturing, and electrical circuit protection applications. It is a critical component for safeguarding equipment against voltage spikes in power and signal lines.
