ASSMANN WSW 2.54 mm Pitch Vertical 20 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 20 HZL-TT

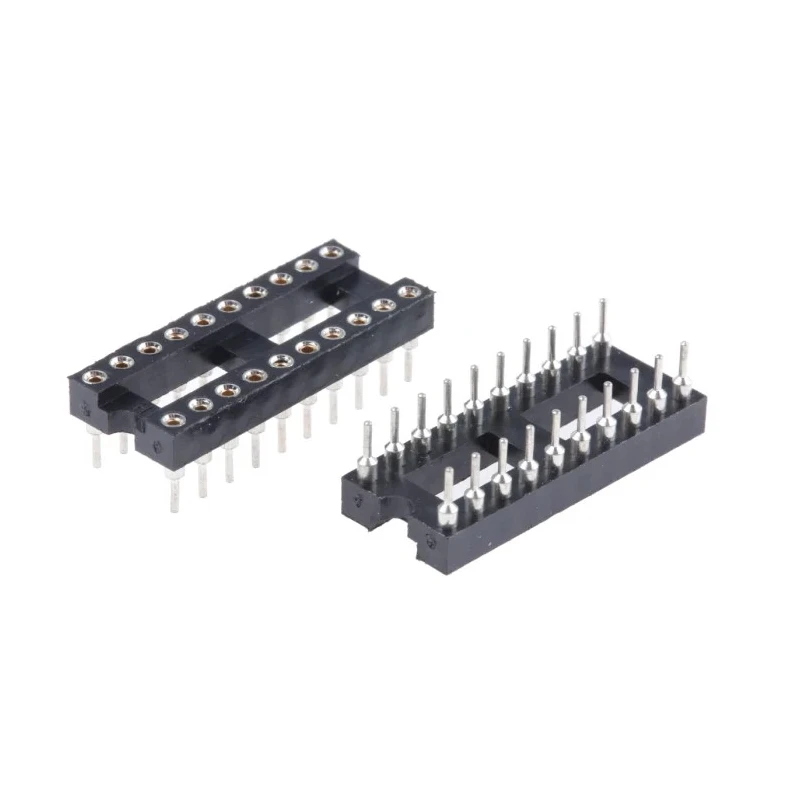

ASSMANN WSW AR 20 HZL-TT is a vertical 20 way Dual Inline (DIL) socket designed for through hole PCB mounting with a 2.54 mm pitch. Engineered with turned pin contacts, this open frame socket combines mechanical strength and reliable connectivity, featuring a robust housing made from Polybutylene Terephthalate (PBT) which meets UL94V-0 flammability standards.

This socket supports a continuous current of 3A and voltage rating of 100V AC, making it suitable for a wide range of electronic devices and industrial systems. Operating temperature spans from -40°C to 105°C allowing for deployment in various harsh and controlled environments.

The contact pins are coated with tin plating to ensure excellent conductivity and corrosion resistance while the base materials phosphor bronze and brass provide durability under mechanical stress.

Compact in size with dimensions of 25.4 mm length, 10.16 mm width, and 3 mm depth, the socket fits standard DIP package footprints. Its through hole termination type facilitates secure soldering and mechanical stability on printed circuit boards.

This product is commonly used in electronic component manufacturing, industrial control systems, laboratory instrumentation, and other precision electronics requiring reliable IC socket connections.

This DIL socket features a vertical orientation with 20 contacts for reliable IC connection. The pitch between contacts is 2.54 mm, suitable for standard DIP ICs. Through hole mounting ensures strong solder connection on PCBs.

Contacts are turned pin type, plated with tin for good conductivity. The frame is open type with a robust Polybutylene Terephthalate housing. It supports a current rating of 3A and voltage up to 100V AC. Operates reliably from -40°C to 105°C, suitable for various industrial environments.

Compact dimensions: length 25.4 mm, width 10.16 mm, depth 3 mm. Contact material is phosphor bronze and brass for durability and performance. Ideal for industrial, electronic manufacturing, and laboratory equipment applications.
