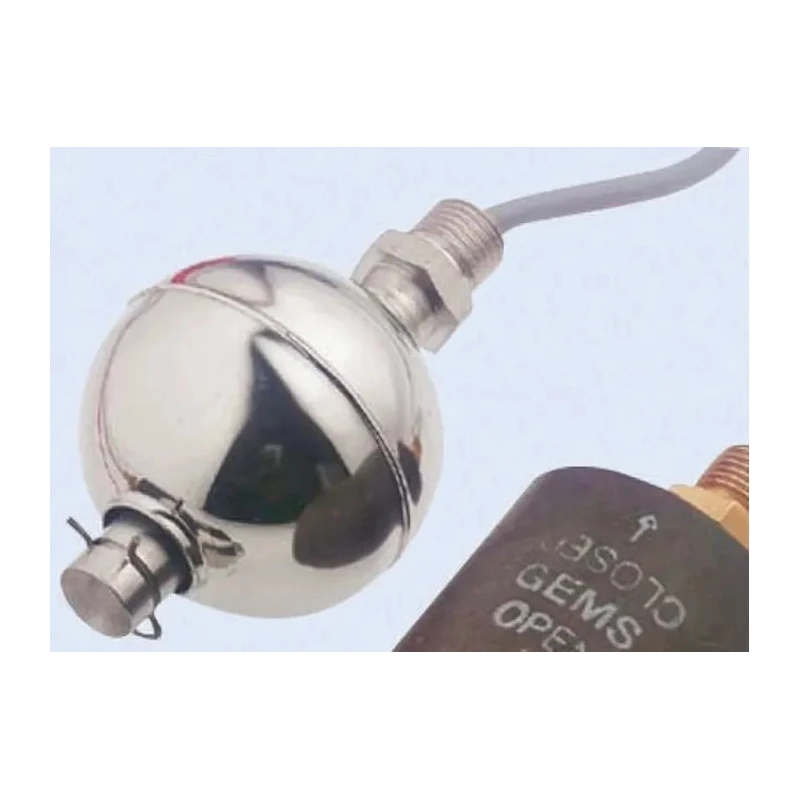

Gems Sensors Stainless Steel Vertical, Horizontal Float Switch with 1 Meter Cable, Relay Output, 220 V AC Max, 200 010-0391

Gems Sensors 010-0391 Stainless Steel Vertical and Horizontal Float Switch is engineered to provide reliable liquid level detection in demanding industrial environments. With a 1 meter cable and relay output, this float switch is suitable for use with corrosive or pressurized liquids up to 30 bar and temperatures ranging from -40°C to 150°C.

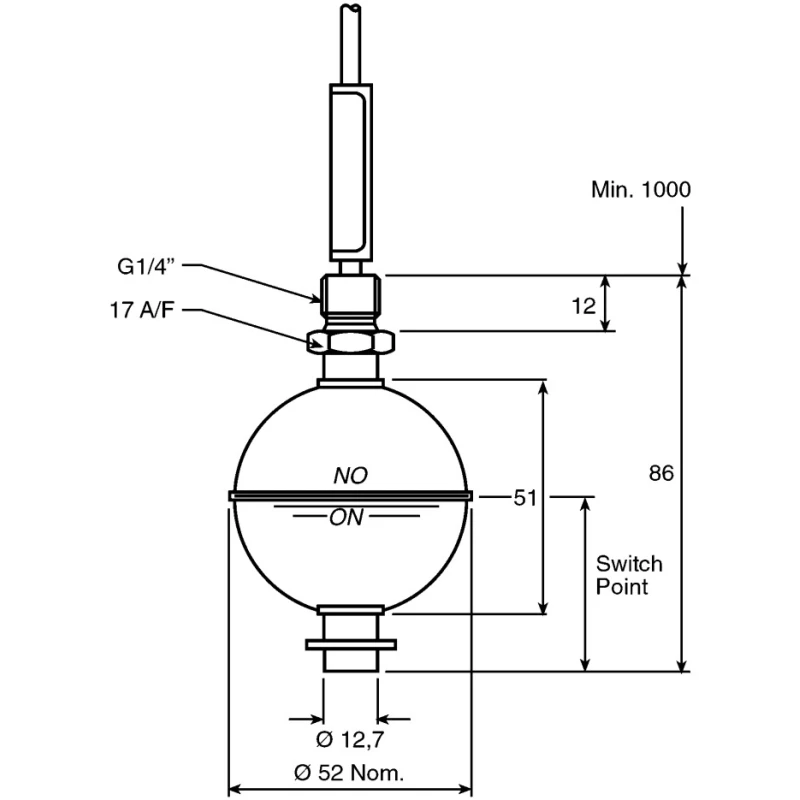

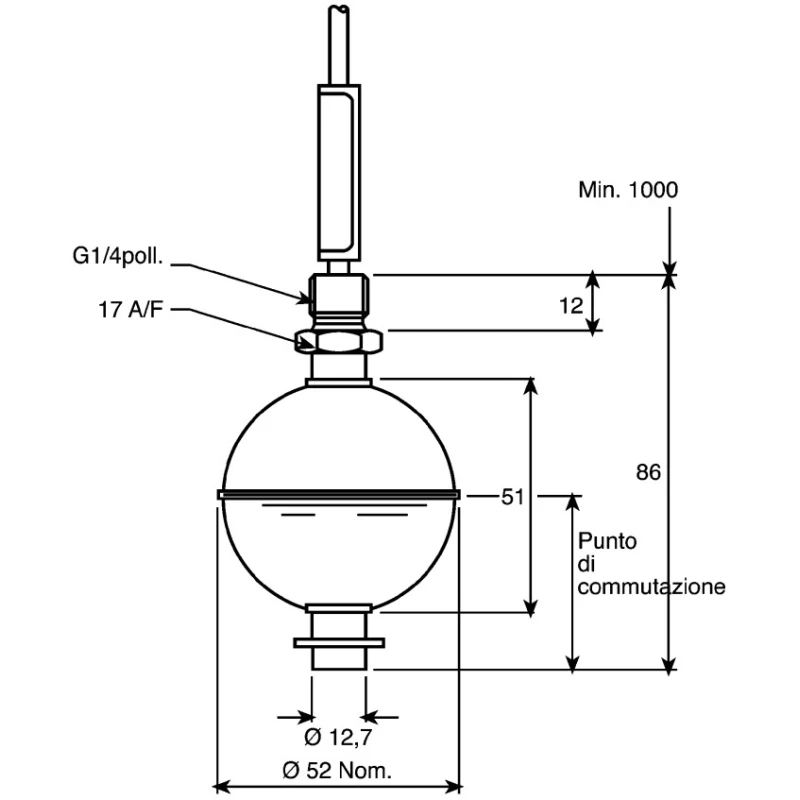

The float switch features a durable stainless steel housing and a G1/4 inch mounting thread that enables easy installation through tank walls. The device should be mounted so that the cable entry point remains above the highest liquid level to prevent submersion and potential damage. It operates effectively in liquids with a minimum specific gravity of 0.75, making it ideal for a wide range of industrial fluids.

Electrical characteristics include a maximum AC voltage rating of 220 V, a DC voltage rating of 200 V, and a maximum current capacity of 0.5 Ampere with a relay-type switch output offering a single-pole single-throw (SPST) configuration rated at 100 V. The float switch has an immersion depth of 30 mm to guarantee accurate and responsive switching.

This product carries CE certification and an IP64 rating against dust ingress and water splashes, ensuring robust performance in industrial, manufacturing, HVAC, water treatment, and laboratory applications.

Use cases for the Gems Sensors 010-0391 float switch include precise liquid level management in storage tanks, sump pumps, chemical processing, and safety systems requiring reliable detection and control of liquid heights. Its high temperature and pressure tolerances make it suitable for tough industrial conditions.

Constructed with stainless steel housing suitable for corrosive liquids. Compatible with liquids having specific gravity above 0.75. Operates reliably within temperature range -40°C to 150°C. Supports maximum AC voltage of 220 V and DC voltage of 200 V.

Designed with relay switch output type for electrical isolation. Maximum current rating is 0.5 Ampere. Equipped with G1/4 inch mounting thread for easy installation. Depth of immersion limited to 30 mm for accurate sensing.

Cable entry designed to remain above liquid level to prevent damage. Rated IP64 for protection against dust and water splashes. Explore the full range of Gems Sensors Float Switches and other precision sensors on EnvMart for your industrial and laboratory control needs.
