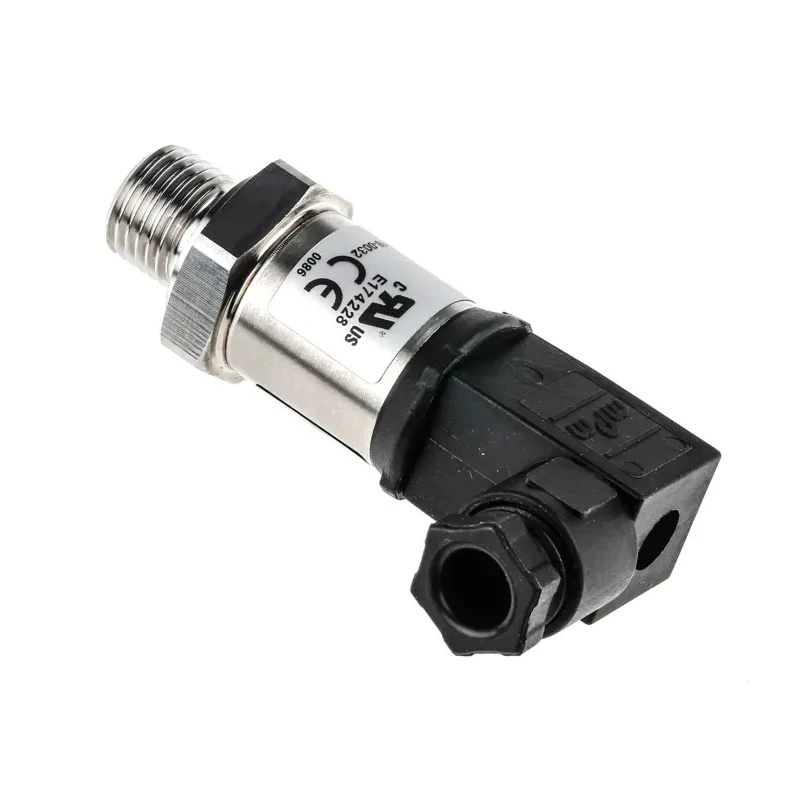

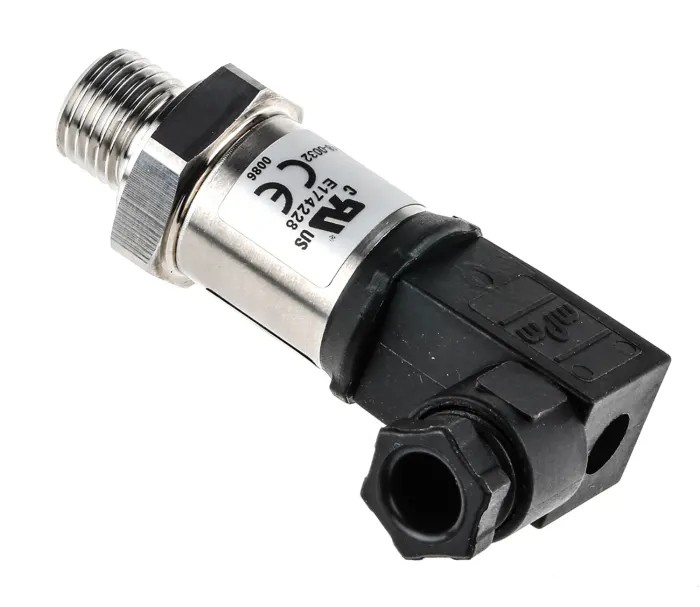

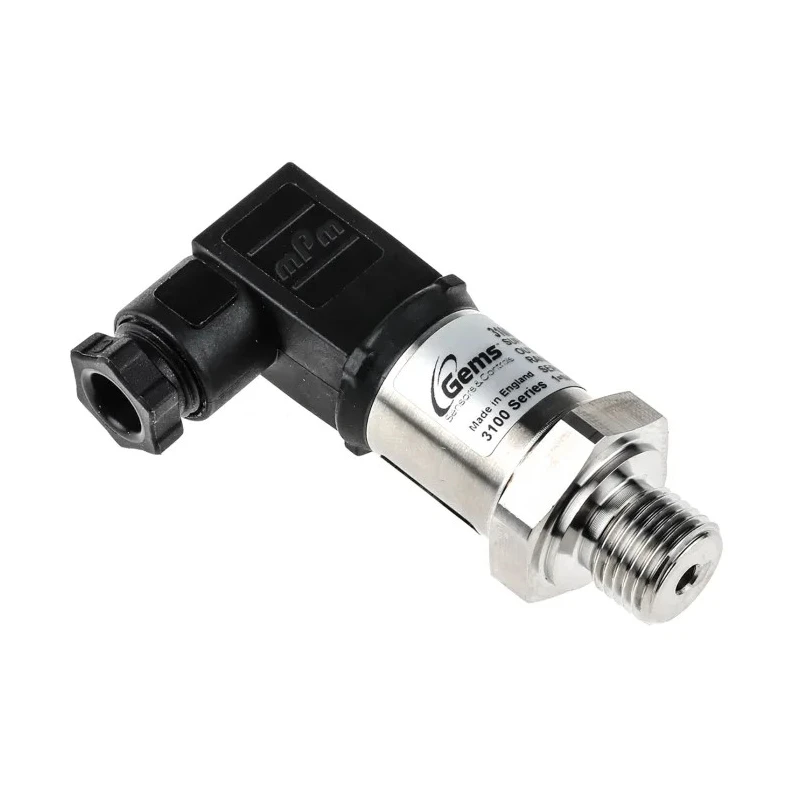

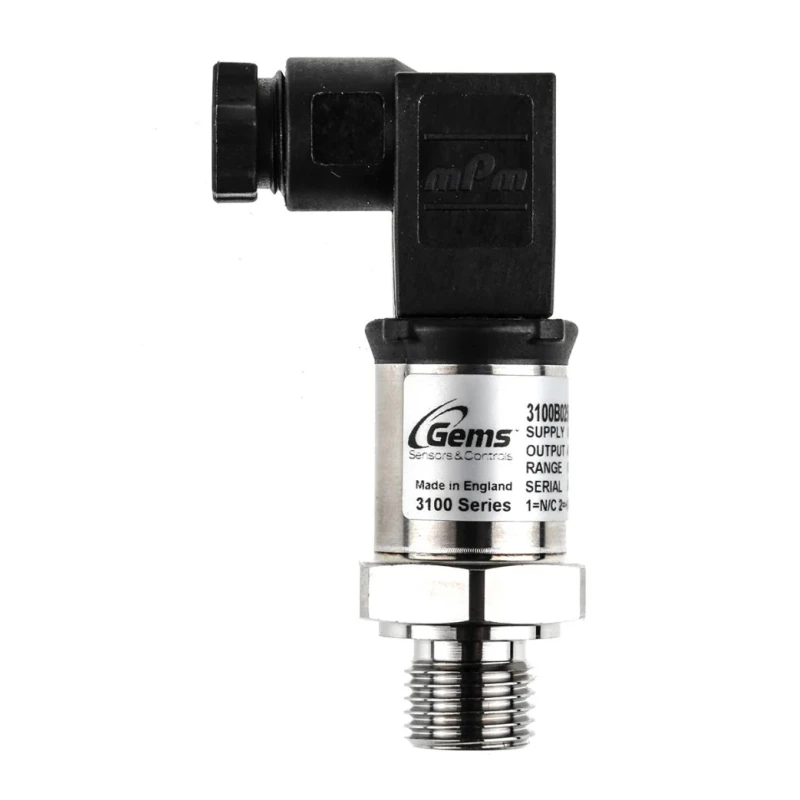

Gems Sensors 3100 Series Pressure Sensor 0 to 250 bar Relative, Analogue Output, CE Certified, IP65, UK 3100B0250S01B000

Gems Sensors 3100B0250S01B000 is a highly reliable analogue pressure sensor designed to measure pressures from 0 to 250 bar (relative) with an accuracy of 0.25 percent. Manufactured in the United Kingdom, this sensor features stainless steel wetted parts and a sputtered thin film sensing element, providing exceptional temperature stability and long-term durability.

The sensor operates efficiently within a broad temperature range spanning from -40°C to 125°C, maintaining performance under harsh environmental conditions. Its compact form factor and Mini DIN 43650C GDS electrical connections make it suitable for installations with limited space. The IP65 rated enclosure ensures protection against dust ingress and water jets, extending sensor longevity in industrial and automation applications.

Supporting supply voltages between 10V and 30V DC, the sensor delivers a rapid 1ms response time, allowing for precise real-time pressure monitoring critical in hydraulic, pneumatic, and process control systems. Its design excludes internal O-ring seals, reducing maintenance needs and enhancing reliability.

Certified with CE standards and RoHS compliant, the 3100 Series pressure sensor is ideal for OEMs requiring consistent high performance and stability. It is commonly used in industrial automation, manufacturing equipment, HVAC systems, and laboratory instruments where accurate pressure measurements are vital.

Features stainless steel wetted parts for durability and chemical resistance. Provides high accuracy of 0.25 percent for reliable measurements. Operates over a wide temperature range from -40°C to 125°C. Designed with IP65 rating for protection against dust and water jets.

Compact design with Mini DIN 43650C GDS electrical connections. Utilizes sputtered thin film technology for temperature stability. Supports supply voltages from 10V to 30V DC. Fast 1ms response time for precise pressure monitoring.

No internal O-ring seals reduce maintenance risks. CE certified and RoHS compliant for industry standards. Explore Gems Sensors Pressure Sensors and other automation components at EnvMart for precision and reliability in your control systems.
