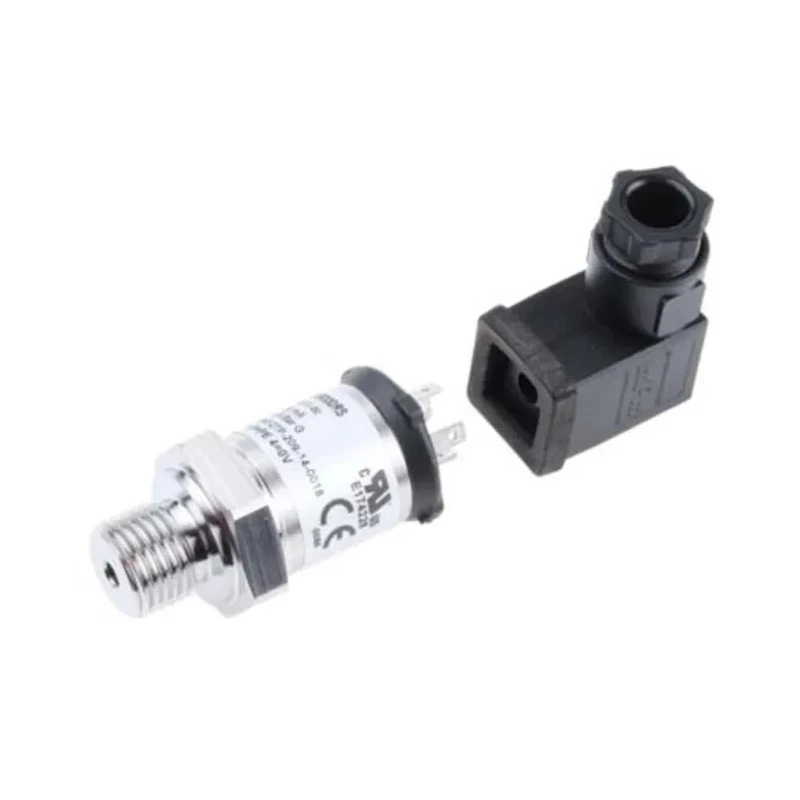

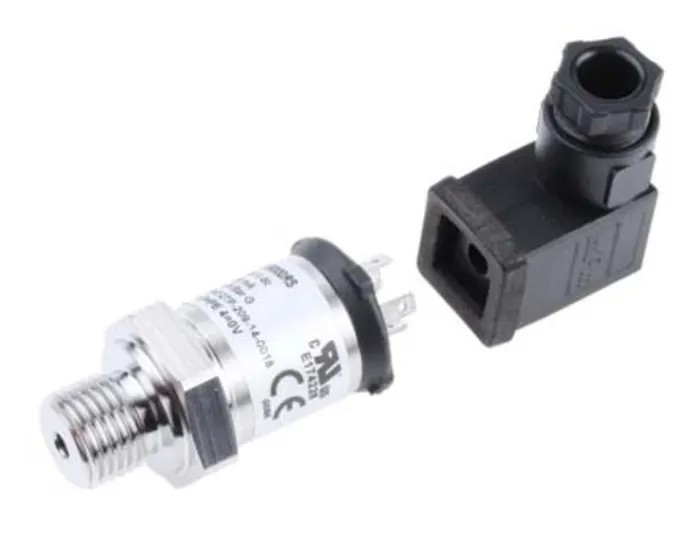

Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 bar to 25 bar, 0.25% Accuracy, IP67 Rated 3100S0025G01B000

Free Delivery in India | Lowest Global Shipping Charges

Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 bar to 25 bar, 0.25% Accuracy, IP67 Rated 3100S0025G01B000

Name: Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 bar to 25 bar, 0.25% Accuracy, IP67 Rated 3100S0025G01B000
Brand: GEMS SENSORS
SKU: 205772
Price: 214.48 USD
Availability: InStock



Category Pressure Sensors Brand GEMS SENSORS Condition New

Specifications

Country of Origin	United Kingdom
Accuracy	0.25 %
Brand	Gems Sensors
Response time	1ms
Model	3100S0025G01B000
IP Rating	IP67, IP65
Output type	Analogue
Series	3100
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Maximum Pressure Measurement	25bar
Minimum Pressure Measurement	0bar
Maximum Supply Voltage	30V dc
Minimum Supply Voltage	8V
Pressure Reading Type	Relative
Media Measured	Fluid, Hydraulic Fluid, Hydraulic Oil, Air, Oil

Key Features

Pressure measurement range from 0 to 25 bar relative.
Fast response time of 1 millisecond for real-time monitoring.
Operates reliably between -40°C and 125°C.
Compatible with fluids including hydraulic oil, air, and general fluids.
Wide supply voltage range from 8V to 30V DC.
Stainless steel wetted parts ensure corrosion resistance and durability.
Compact design ideal for applications with limited space.
Compliant with RoHS standards for environmental safety.

Product Description

Gems Sensors 3100S0025G01B000 pressure sensor is a reliable analogue output device designed for accurate relative pressure measurement ranging from 0 to 25 bar. It offers a high accuracy of 0.25% full scale and features a rapid 1 ms response time, making it suitable for dynamic industrial and laboratory applications.

The sensor's stainless steel wetted parts provide exceptional corrosion resistance, supporting use with hydraulic fluids, oils, air, and various other fluids. Its robust construction enables operation in harsh environments within a temperature range of -40°C to 125°C. Its IP67 and IP65 ratings provide dust-tight and water-resistant protection, ideal for demanding industrial conditions and outdoor installations.

Compatible with a wide supply voltage range (8 to 30 V DC), the 3100 Series sensor delivers consistent performance and stability in a compact form factor, suitable where space constraints exist. Its compliance with RoHS directives underlines environmental responsibility in its manufacturing.

Typical applications include fluid monitoring, process control in industrial automation, pneumatic and hydraulic system pressure measurement, HVAC systems, and other critical sensing needs in manufacturing, water treatment, and environmental equipment.

Pressure measurement range from 0 to 25 bar relative. Fast 1 ms response time ensures timely pressure monitoring. Wide temperature operating range from -40°C to 125°C. Stainless steel wetted parts for excellent durability and corrosion resistance.

Supplies analogue output compatible with various control systems. IP67 and IP65 ingress protection for harsh environments. RoHS compliant for environmental safety. Compact design suited for limited installation spaces.

Choose Gems Sensors 3100 Series for reliable, accurate pressure sensing solutions across industrial, laboratory, HVAC, and water treatment sectors. Browse more products in our Pressure Sensors category on EnvMart for comprehensive options.
