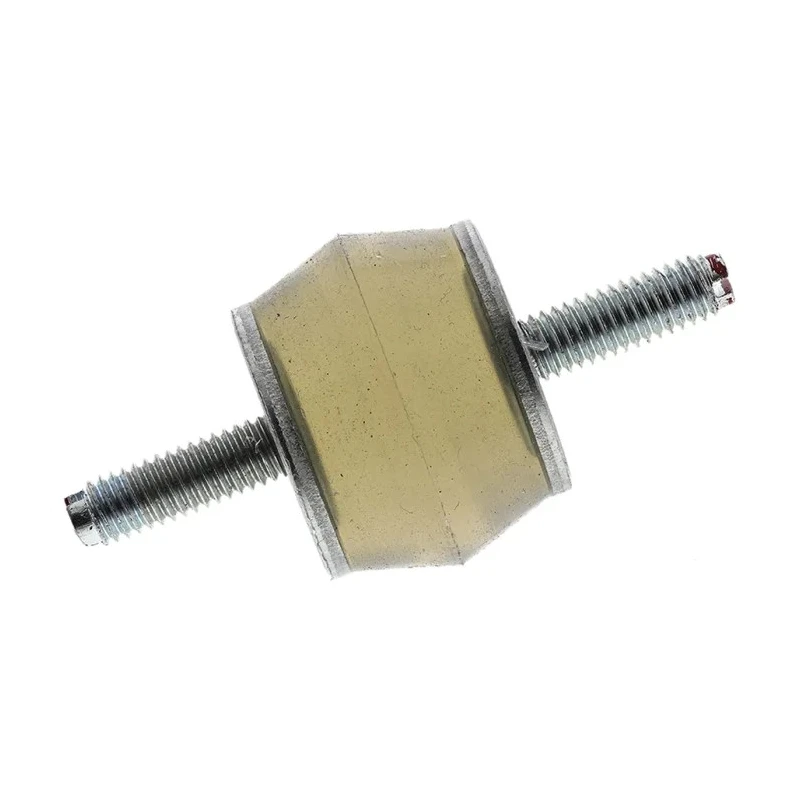

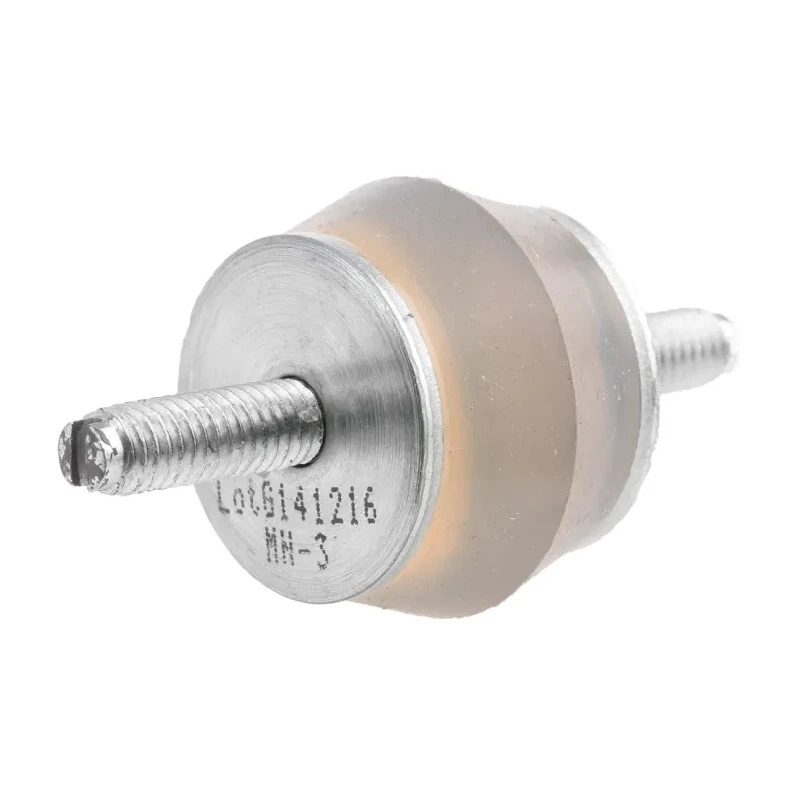

Taica Anti-Vibration Mount Male to Male Bobbin, Silicone, M6 Thread, 14 kg Compression, 6 mm Bore, 30 mm OD, 58 mm MN-3

The Taica MN-3 Anti-Vibration Mount is designed for vibration isolation and shock absorption in precision machinery and sensitive electronic equipment. Featuring a male-to-male bobbin design with an M6 thread and a 6 mm bore diameter, this mount provides robust support for loads requiring damping to lower frequencies than traditional rubber or neoprene mounts.

The MN-3 series features a static load rating of 14 kg and a compression deflection of 21.75 mm, making it suitable for applications that demand reliable vibration damping. It is constructed from advanced silicone gel, recognized for its high temperature resistance from -40°C up to 200°C, as well as superior weather resistance including ozone, UV, and chemical exposure.

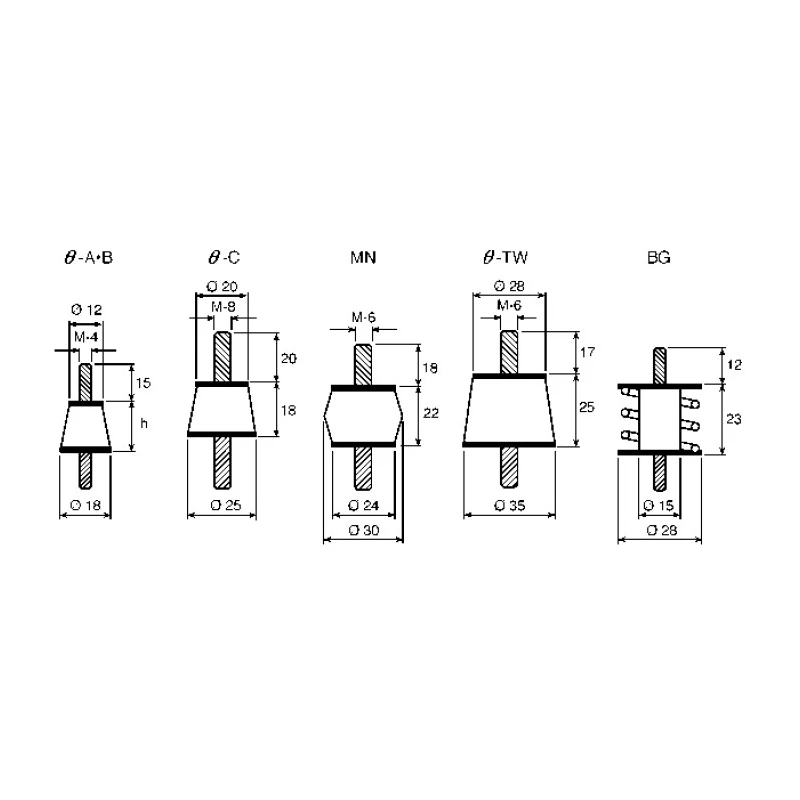

With an overall height of 58 mm and a 30 mm outer diameter, the Taica MN-3 anti-vibration mount is easy to integrate and install using screw mount type. Its strong bond between metal parts and silicone ensures stability and performance, while fixable by two vertical slotted bolts enables secure attachment.

This mount is ideal for laboratory, industrial, and commercial environments where vibration reduction is crucial - especially for vacuum pumps, precision instruments, measuring devices, onboard computers, and sensitive electronics. Not suitable for uneven loads, angular loading, twisting, tensile, or shearing applications.

It offers excellent longevity due to its chemical durability and weathering properties, making it a preferred choice in both indoor and challenging outdoor environments. Use cases include manufacturing, water treatment, electronics assembly, and scientific laboratories.

Engineers seeking silent operation and increased component life will benefit from this mount's effective vibration damping. A bag contains 1 item, ensuring easy procurement for replacement or maintenance schedules.

Constructed from high-performance silicone gel for advanced vibration isolation. Bore diameter is 6 mm, thread size is M6, and bobbin is male to male. Compression load rating of 14 kg ensures effective shock absorption. Overall height is 58 mm, with an outside diameter of 30 mm.

Excellent resistance to weathering, ozone, UV, and chemicals for durability. Works in extreme temperatures from -40°C to 200°C. Ideal for mounting vacuum pumps, measuring instruments, on-board computers, and sensitive electronics.

Compression deflection measured at 21.75 mm. For more anti-vibration solutions and related hardware, browse Taica products and the Anti Vibration Mounts category at EnvMart.
