Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 bar Minimum, 10 bar Maximum Pressure Measurement 3100S0010G05G000

Free Delivery in India | Lowest Global Shipping Charges

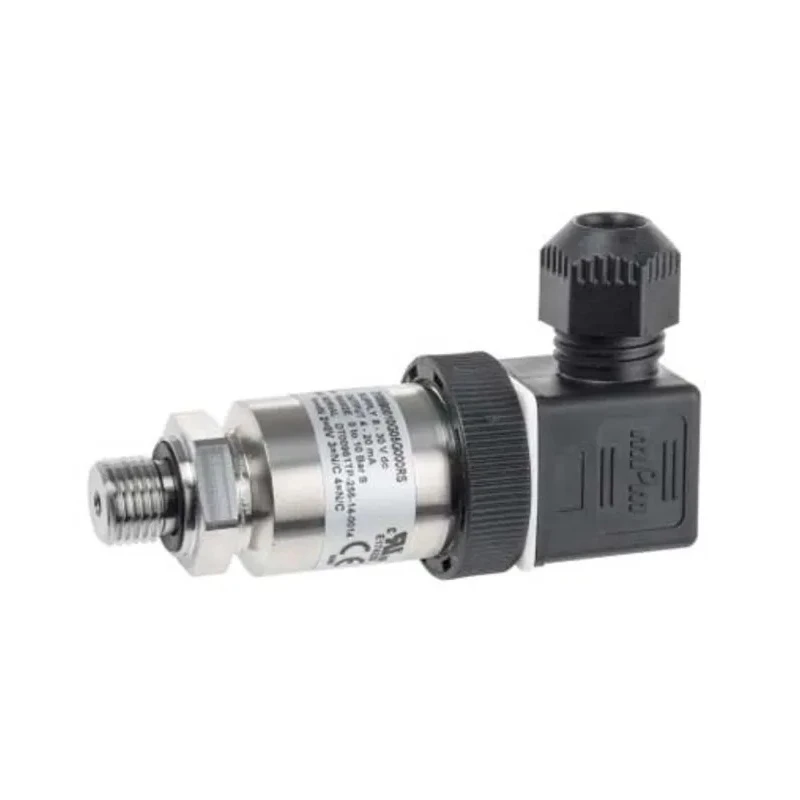

Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 bar Minimum, 10 bar Maximum Pressure Measurement 3100S0010G05G000

Name: Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 bar Minimum, 10 bar Maximum Pressure Measurement 3100S0010G05G000
Brand: GEMS SENSORS
SKU: 145273
Price: 246.64 USD
Availability: InStock



Category Pressure Sensors Brand GEMS SENSORS Condition New

Specifications

Country of Origin	United Kingdom
Accuracy	±0.25 %
Brand	Gems Sensors
Response time	1ms
Model	3100S0010G05G000
IP Rating	IP65, IP67
Housing Material	17-4 PH Stainless Steel
Output type	Analogue
Series	3100
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Maximum Pressure Measurement	10bar
Minimum Pressure Measurement	0bar
Maximum Supply Voltage	30V
Minimum Supply Voltage	8V
Pressure Reading Type	Relative
Media Measured	Hydraulic Fluid, Air, Hydraulic Oil, Oil

Key Features

Offers high accuracy of ±0.25% Full Scale for precise pressure readings.
Suitable for measuring hydraulic fluid, air, hydraulic oil, and oil media.
Operates within a temperature range of -40°C to 125°C ensuring reliability in harsh environments.
Robust housing made of 17-4 PH stainless steel provides durability and corrosion resistance.
Features rapid 1 millisecond response time for fast data acquisition.
Wide supply voltage range from 8V to 30V allows flexible power options.
Ingress protection IP65 and IP67 rated for dust and water resistance.
RoHS compliant design supports environmental safety standards.

Product Description

Gems Sensors 3100S0010G05G000 Pressure Sensor offers analogue output with relative pressure measurement ranging from 0 to 10 bar. Designed for industrial applications, it provides exceptional performance, reliability, and stability within a compact package. This sensor is engineered with all stainless steel wetted parts ensuring resistance to corrosion and wear.

The 3100 Series pressure transmitters feature a sputter element technology for enhanced temperature stability and precision, suitable for hydraulic fluid, air, hydraulic oil, and oil media measurement. Its operating temperature spans from -40°C to 125°C, enabling reliable operation under extreme ambient conditions. The sensor's quick 1 ms response time supports dynamic process control.

Featuring a housing of 17-4 PH stainless steel, the robust design withstands demanding industrial environments while IP65 and IP67 ingress protection ratings safeguard against dust and water ingress. The transmitter supports a broad voltage supply from 8V to 30V, offering versatility in different electrical setups. Manufactured in the United Kingdom, this pressure sensor complies with RoHS for environmental standards.

Installation is ideal where space constraints are present due to the compact 3100 series form factor. The sensor is suitable for various industrial, manufacturing, HVAC, hydraulic, and laboratory applications requiring accurate, stable pressure monitoring. Gems Sensors 3100 series devices ensure durability and accuracy in pressure detection for process control and safety systems.

High accuracy at ±0.25% FS enhances process precision. Fast response time enables timely system feedback. Stainless steel materials ensure long product life in corrosive media. Rugged IP65/67 protection suitable for harsh environments.

Wide voltage operation for flexible power usage. RoHS compliant for environmental safety. Compact size allows fitting in tight installation spaces. Explore the comprehensive range of Gems Sensors products and industrial pressure transmitters on EnvMart for reliable pressure measurement solutions.
