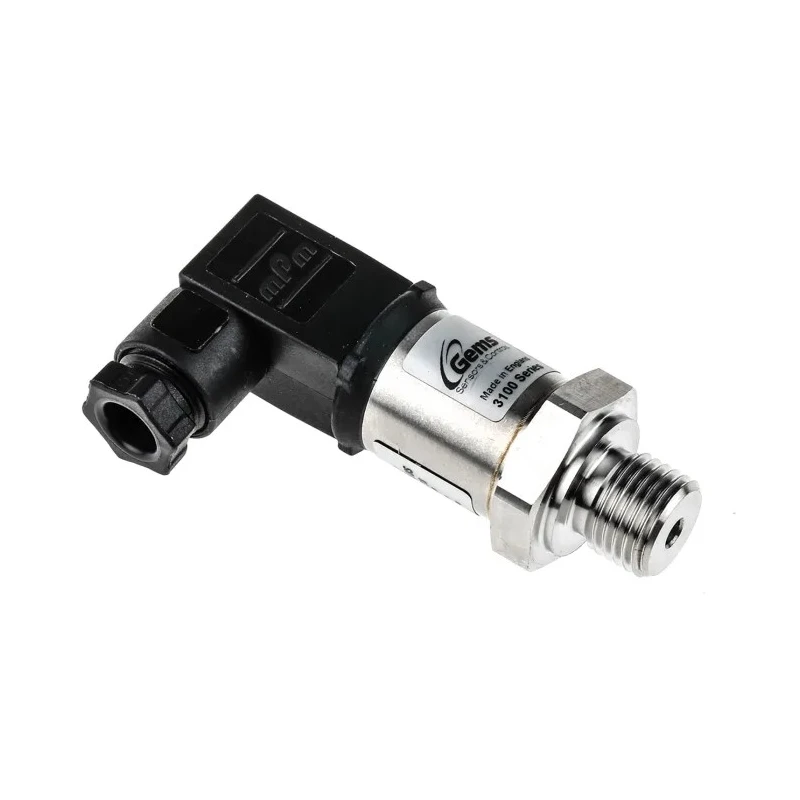

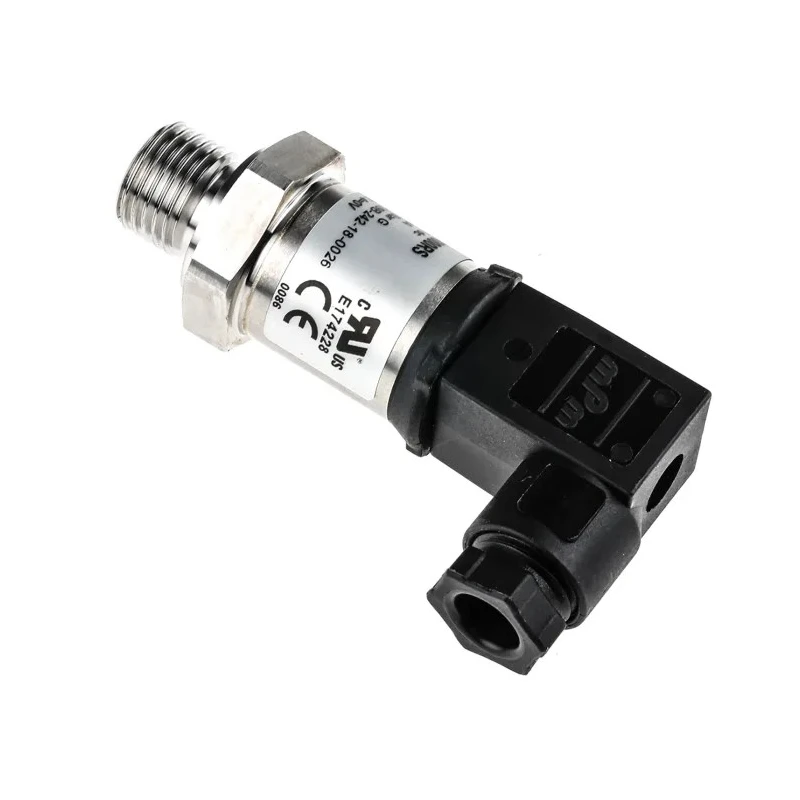

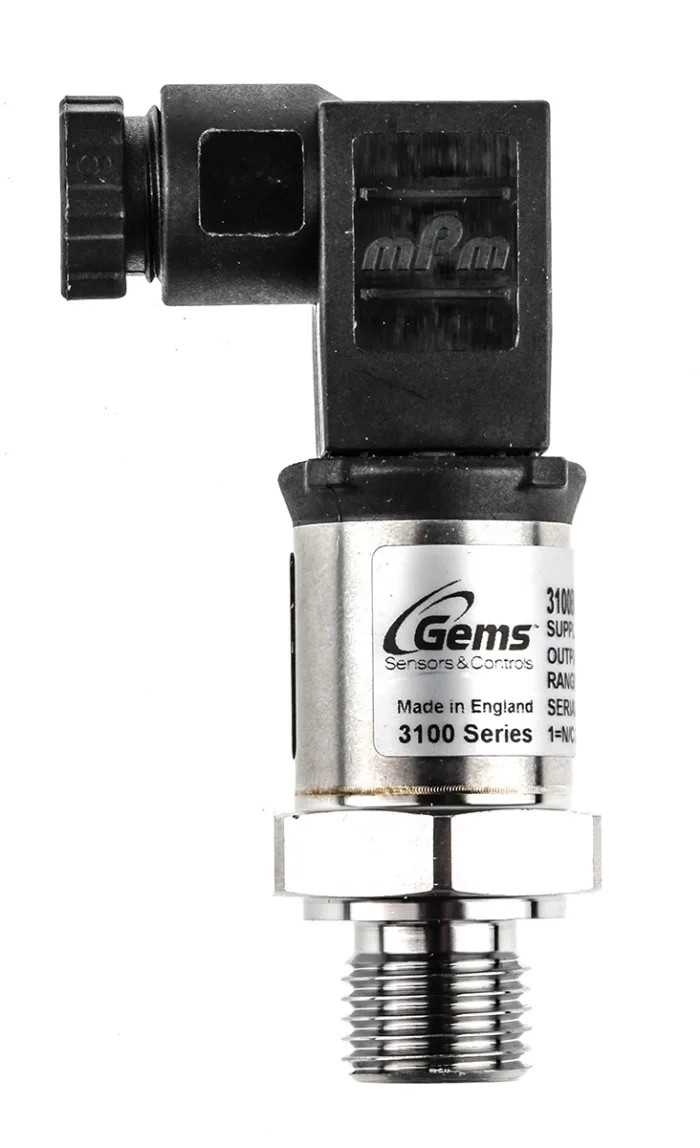

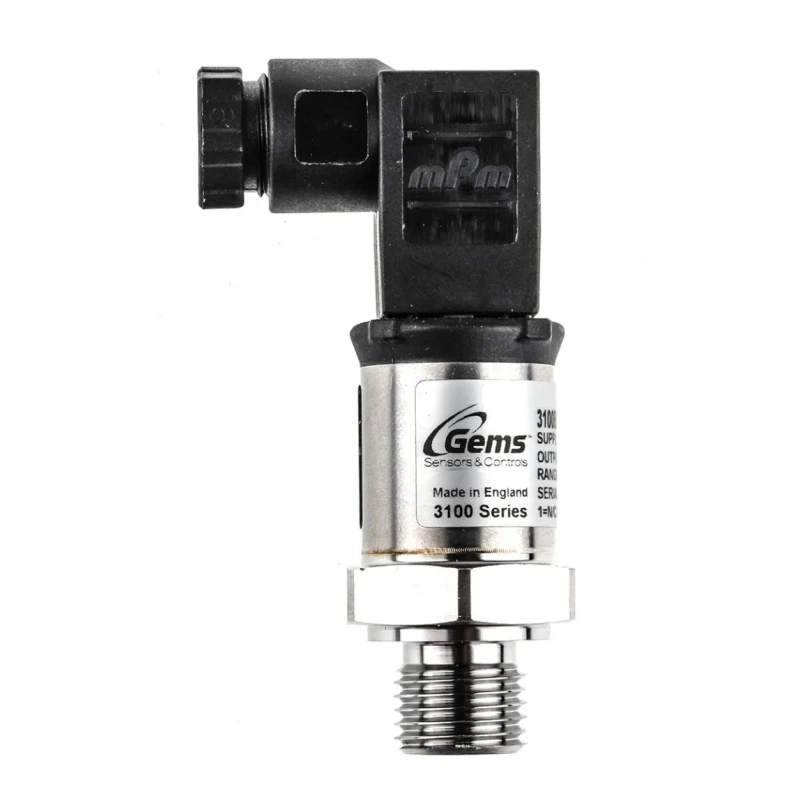

Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 bar Minimum, 40 bar Maximum Pressure, Accuracy 3100B0040G01B000

Gems Sensors 3100B0040G01B000 pressure sensor is a high-performance analogue output sensor designed for precise relative pressure measurement ranging from 0 bar minimum to 40 bar maximum.

Constructed with stainless steel wetted parts and sputtered thin film sensing element, it provides excellent stability, reliability, and durability needed in industrial, automation, laboratory, HVAC, and manufacturing applications.

The compact sensor is IP65 rated, making it suitable for environments subject to dust and water exposure. Its operating temperature range from -40 to 125°C enables use in harsh conditions.

The sensor offers a fast 1 ms response time to pressure changes, ideal for real-time monitoring and control systems. It operates from 10 to 30 V supply voltage and uses a Mini DIN 43650C GDS connector for easy wiring.

With a proof pressure of three times the full-scale rating and CE certification, this product provides reliable and safe pressure sensing. It requires no recalibration and has no internal O-ring seals, reducing maintenance and sealing failure risks.

Designed with stainless steel wetted parts for durability and chemical resistance. Features sputtered thin film sensing technology for reliable and stable performance. Compact design with IP65 rated enclosure ensuring protection against dust and water.

Wide operating temperature range from -40°C to 125°C to suit harsh environments. Fast response time of 1 millisecond to allow real-time pressure monitoring. Supports supply voltage between 10 V and 30 V for flexible electrical integration.

Mini DIN 43650C connector for convenient electrical and pressure connections. Proof pressure of three times full scale for robust operation without damage. CE certified and RoHS compliant ensuring compliance with safety and environmental standards.

No internal O-ring seals to reduce leak risks and simplify maintenance. Explore our wide range of Pressure Sensors and related industrial instrumentation at EnvMart for reliable measurement solutions.
