ASSMANN WSW 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 16 HZL-TT

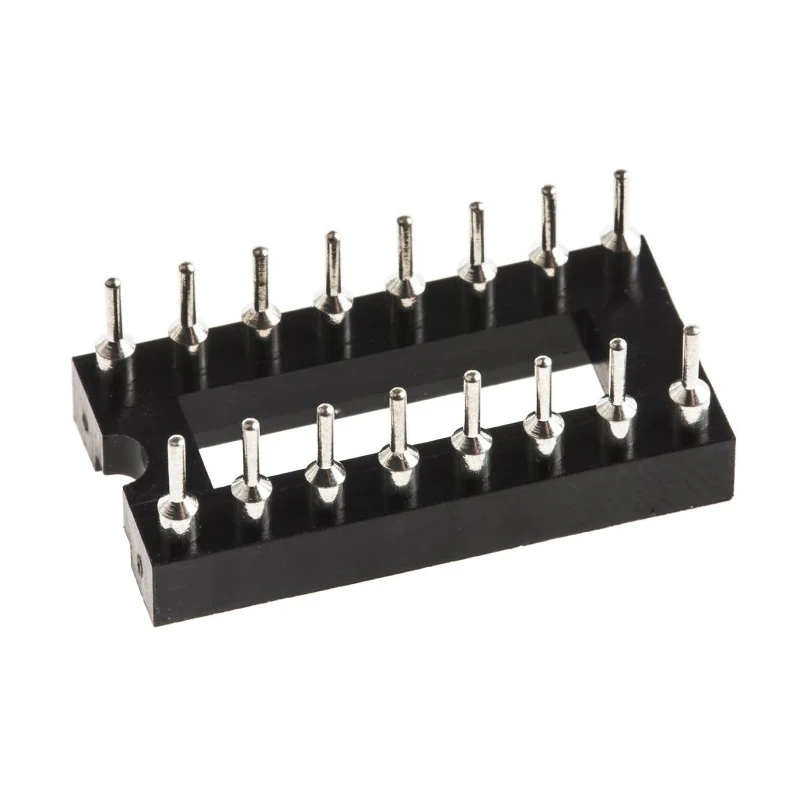

ASSMANN WSW AR 16 HZL-TT is a high-quality 16 Way Through Hole Turned Pin Open Frame DIL Socket with a 2.54 mm pitch, designed for vertical mounting on printed circuit boards. It supports a current rating of 3 amps and operates reliably at voltages up to 100V AC, making it suitable for various electronic applications requiring secure IC socket connections.

The socket features contacts made from brass and phosphor bronze, which are tin plated and precisely turned to ensure strong mechanical and electrical connection. Its open frame design simplifies inspection, soldering, and maintenance processes during assembly.

The housing is manufactured from black Polybutylene Terephthalate (PBT) with a UL94V-0 flammability rating, providing excellent electrical insulation and thermal endurance in industrial and commercial electronic environments.

This DIL socket supports an operating temperature range of -40°C to 105°C, ensuring reliable performance under wide temperature variations typically encountered in laboratory and manufacturing conditions.

Compact dimensions with a length of 20.32 mm, width of 10.16 mm, and depth of 3 mm make it ideal for space-sensitive PCB layouts in electronic connectors and test equipment. Features 16 contacts with 2.54 mm pitch for standard IC compatibility.

Contact pins are turned and tin plated for enhanced solderability and retention. Open frame design enables easy visual inspection and soldering access. Supports 3A current and 100V AC voltage ratings. Black UL94V-0 PBT housing for thermal and electrical reliability.

Meets industrial standards with an operating temperature range from -40°C to 105°C.

This product is ideal for electronics manufacturing, testing, prototyping, and repair applications requiring robust and reliable IC insertion sockets. Browse our full range of DIL Sockets and electronic components at EnvMart for complementary parts and accessories.
