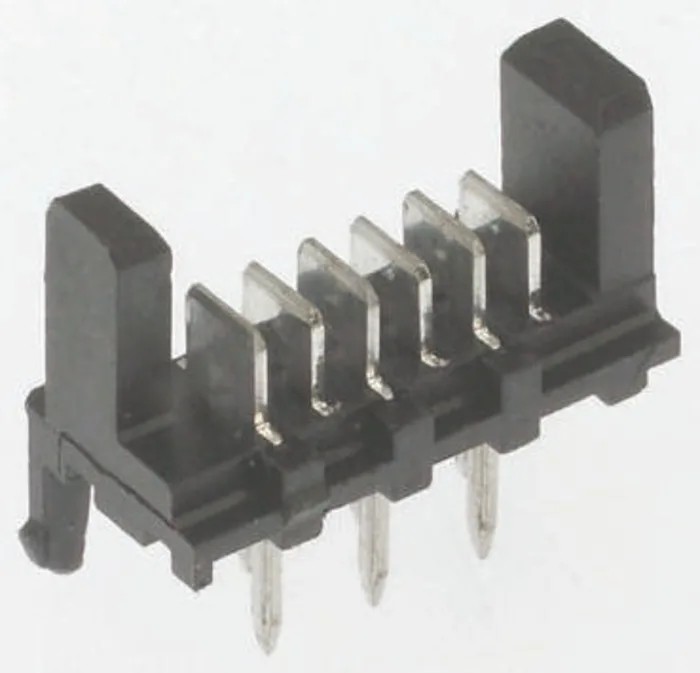

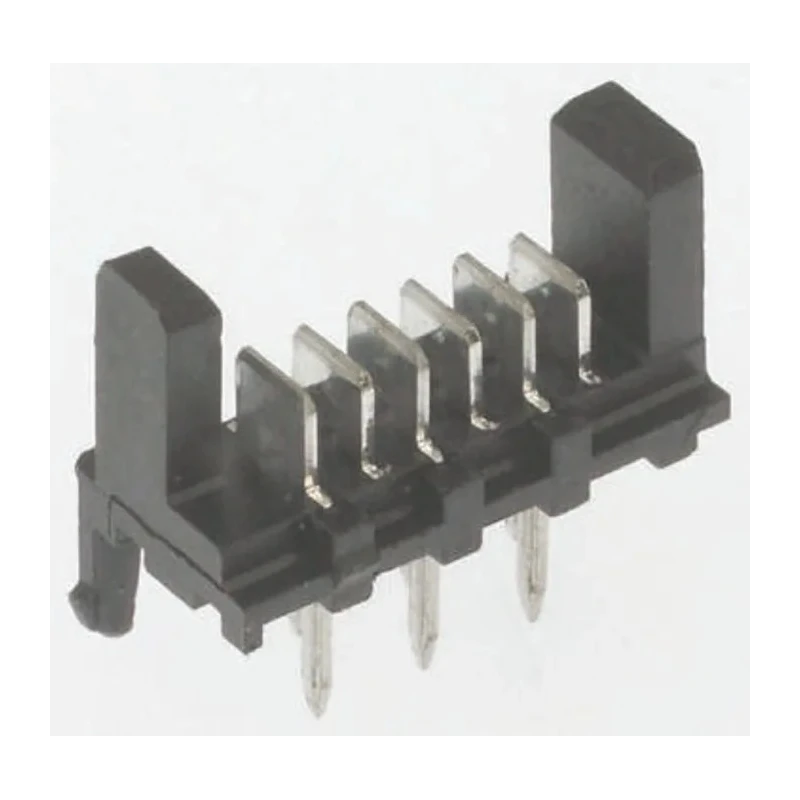

Molex 26-Way IDC Connector Male for Surface Mount, 1 Row, 1.2A, 250V, 1.27mm Pitch 90814-0826
Specifications
| Country of Origin | Ireland |
|---|---|
| Voltage | 250, 250V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1.2A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Picoflex |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| 90814-00xx | SMT, Tin, with PCB pegs |
| 90814-06xx | SMT, Tin, no PCB pegs |
| 90814-07xx | SMT, Tin, no PCB pegs |
| 90814-08xx | SMT, Tin, with PCB pegs |
| 90814-09xx | SMT, Tin, with PCB pegs |
| 90814-38xx | SMT, Gold flash, with PCB pegs |
| 90814-39xx | SMT, Gold flash, with PCB pegs |
| 90325-00xx | Through hole, Tin, with PCB pegs |
| 90325-90xx | Through hole, Tin, with PCB pegs |
| 93405-05xx | Reverse footprint, SMT, Tin, no PCB pegs |
Key Features
- Features 26 contacts with a single row configuration.
- Connector gender is male with unshrouded design for easy termination.
- Operates within a temperature range from -40°C to 105°C.
- Pitch measures 1.27mm ensuring compact wire to board connection.
- Constructed with brass contacts plated with tin over nickel for durability.
- Housing made from durable nylon material for insulation and mechanical strength.
- Surface mount installation with straight orientation for PCB assembly.
- Termination type is IDC suitable for insulation displacement connections.
Product Description
Molex 90814-0826 26-Way IDC Connector Male for Surface Mount, 1 Row, supports a current rating of 1.2A and voltage rating up to 250V AC, designed for reliable electronic connections on printed circuit boards.
This IDC connector offers 26 contacts arranged in a single row for high-density connections maintaining compact design with a 1.27mm pitch spacing. The male connector features an unshrouded configuration with tin over nickel plated brass contacts providing excellent conductivity and corrosion resistance.
The housing is fabricated from high-quality nylon providing robust insulation and mechanical protection. It features a surface mount type and straight orientation to facilitate horizontal PCB mounting and easy integration into electronic assemblies. The termination type is insulation displacement contact (IDC), enabling efficient wire to board connections without soldering.
Operating temperature ranges from -40°C to 105°C, making it suitable for industrial, automotive, consumer electronics, and other demanding environments. The product is part of Molex's Picoflex series renowned for offering low profile, high-density connectors that save space and improve assembly efficiency.
26 contacts in one row for high density and reliable connections. Male connector gender with unshrouded design for accessibility. 1.27mm pitch for compact layout on printed circuit boards. Brass contacts plated with tin over nickel ensuring durability.
Nylon housing for insulation and mechanical support. Surface mount with straight orientation for ease of assembly. IDC termination for insulation displacement wire connections. Wide operating temperature range (-40°C to 105°C) for harsh environments.
Suitable for industrial, automotive, consumer electronics, and manufacturing applications. Manufactured in Ireland ensuring high quality standards.
The Molex 26-Way IDC Connector is ideal for designers needing reliable, space-saving wire-to-board solutions. Explore more IDC Connectors and electronic components to meet diverse application demands in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.2A and a voltage rating of up to 250V AC.
The pitch size of this connector is 1.27mm, allowing for compact wire-to-board connections.
It features brass contacts plated with tin over nickel for conductivity and corrosion resistance, with a housing made from nylon for insulation and mechanical strength.
The connector operates within a temperature range from -40°C to 105°C, making it suitable for various demanding environments.
This connector has 26 contacts arranged in a single row configuration.
It utilizes insulation displacement contact (IDC) termination, allowing for efficient wire-to-board connections without soldering.
The connector has a straight orientation, which facilitates horizontal PCB mounting and easy integration into electronic assemblies.
It is manufactured in Ireland, ensuring adherence to high-quality standards.
This model is part of the Picoflex series, known for offering low profile, high-density connectors.
The connector features an unshrouded design, which allows for easier termination.
It is suitable for industrial, automotive, consumer electronics, and manufacturing applications due to its robust design and specifications.
This model is designed for surface mount installation, enhancing its compatibility with various PCB layouts.
