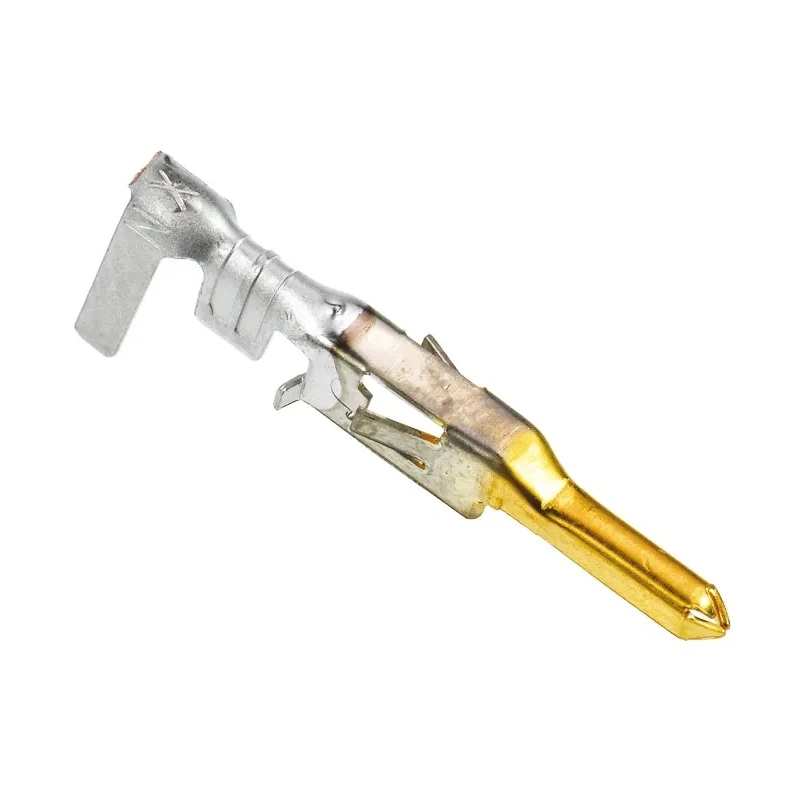

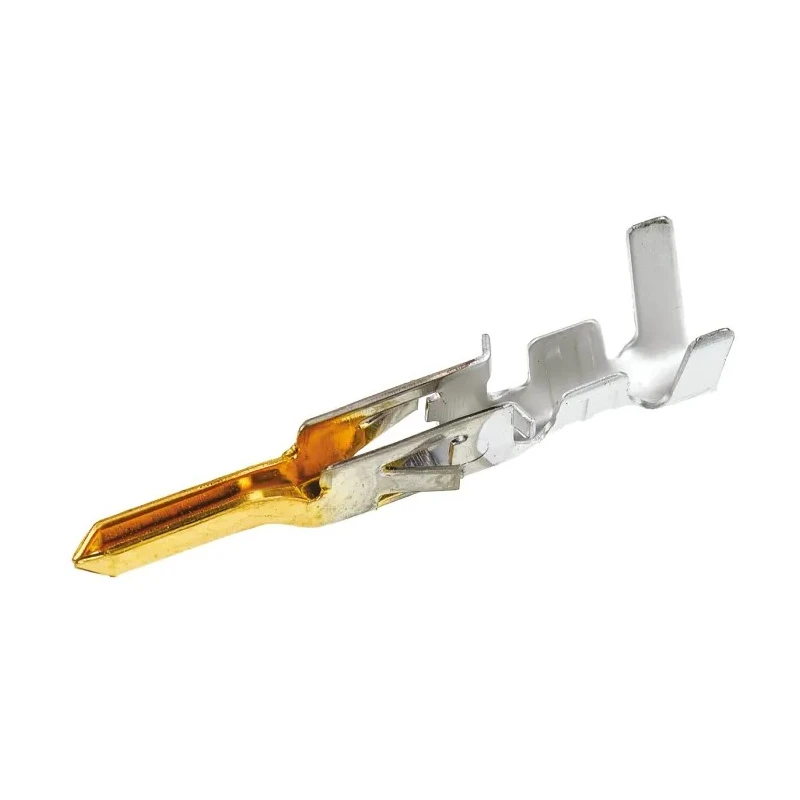

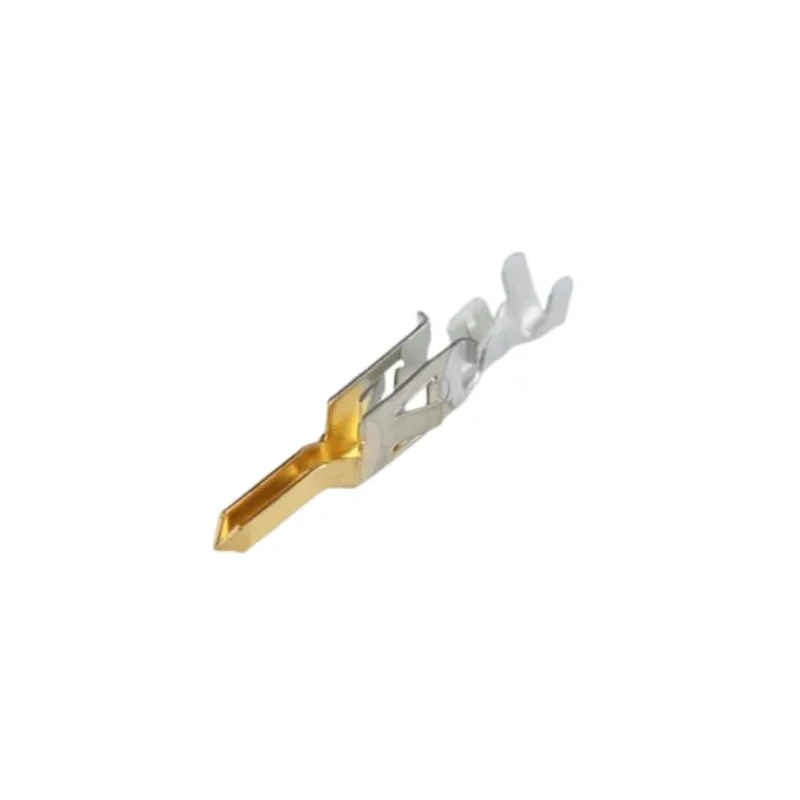

Molex 5558 Series Male Crimp Terminal 24 AWG to 18 AWG Phosphor Bronze Gold Plated 9A 39-00-0219

Free Delivery in India | Lowest Global Shipping Charges

Molex 5558 Series Male Crimp Terminal 24 AWG to 18 AWG Phosphor Bronze Gold Plated 9A 39-00-0219

Name: Molex 5558 Series Male Crimp Terminal 24 AWG to 18 AWG Phosphor Bronze Gold Plated 9A 39-00-0219
Brand: Molex
SKU: 207253
Price: 0.89 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	9A
Gender	Male
Contact Material	Phosphor Bronze
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Rated for up to 9 amps of continuous current.
Operates within temperature ranges from -40°C to 105°C.
Supports crimp termination ensuring reliable electrical connections.
Designed for use in industrial and automation electrical systems.
Maximum contact resistance rated at 10 milliohms for minimal signal loss.
Gold plating provides excellent oxidation protection for stable performance.

Product Description

Molex 39-00-0219 5558 Series Male Crimp Terminal is engineered for secure, high-quality electrical connections in Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. It supports wire sizes ranging from 24 AWG (0.2mm²) minimum to 18 AWG (0.8mm²) maximum, delivering reliable current capacity up to 9 amps.

Fabricated from durable phosphor bronze, this terminal is gold plated to ensure superior electrical conductivity and exceptional resistance to corrosion and oxidation. It is suitable for demanding environments with an operating temperature range from -40°C to +105°C, making it ideal for varied industrial applications.

The crimp termination type offers secure mechanical and electrical connections that withstand vibration and mechanical stress. With a maximum contact resistance of only 10 milliohms, signal integrity is maintained ensuring efficient power and data transmission.

This terminal is widely used in automation, mechanical, and electrical systems where reliable connector performance is essential. It supports insulation diameters from 1.30 mm up to 3.10 mm and is compatible with multiple Mini-Fit connector housings for versatility.

For optimal crimping, a hand crimp tool rated for 16 to 24 AWG wire is recommended to ensure proper termination quality and reliability. The product is manufactured in the United States, assuring quality standards.

Phosphor bronze contact material ensures mechanical strength and durability. Gold plating enhances conductivity and corrosion resistance. Rated current capacity of 9 amps supports demanding electrical requirements. Operating temperature from -40°C to 105°C suits industrial environments.

Crimp termination design for secure and reliable connection. Compatible with Mini-Fit Jr, TPA, and BMI connector housings. Maximum contact resistance rating of 10 milliohms ensures minimal signal loss. Gold plating provides oxidation protection for consistent performance.

Suitable for automation, electrical, and mechanical system applications. Made in the United States meeting quality and manufacturing standards. Explore our Electronics & Electricals category for a wide range of connectors and Crimp Contacts ideal for industrial, manufacturing, and commercial electrical applications.
