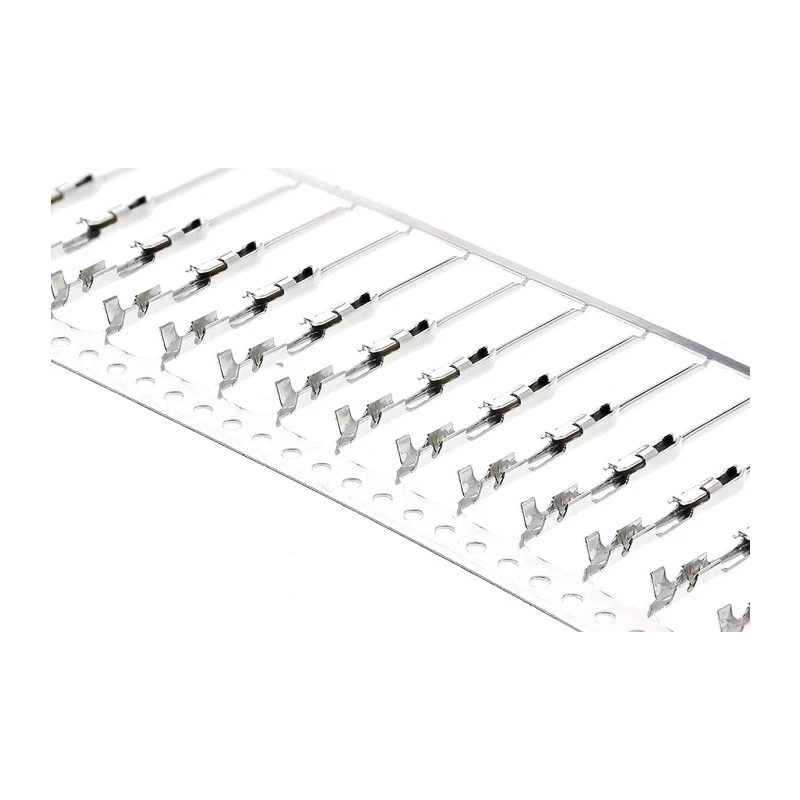

Molex 70021 Series Male Crimp Terminal, Tin Plated Phosphor Bronze Contact, 3A, 30 AWG Min, 24 AWG Max, Crimp 16-02-0105

Free Delivery in India | Lowest Global Shipping Charges

Molex 70021 Series Male Crimp Terminal, Tin Plated Phosphor Bronze Contact, 3A, 30 AWG Min, 24 AWG Max, Crimp 16-02-0105

Name: Molex 70021 Series Male Crimp Terminal, Tin Plated Phosphor Bronze Contact, 3A, 30 AWG Min, 24 AWG Max, Crimp 16-02-0105
Brand: Molex
SKU: 207227
Price: 0.13 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	3A
Gender	Male
Contact Material	Phosphor Bronze
Series	70021
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	SL Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	15mΩ

Key Features

Constructed with phosphor bronze contact material for durability.
Contact plating is tin for reliable conductivity and corrosion resistance.
Supports wire sizes ranging from 30 AWG minimum to 24 AWG maximum.
Designed for crimp termination to ensure secure and efficient connection.
Operates reliably in temperatures from -40°C to 105°C.
Maximum contact resistance of 15 milliohms ensures minimal signal loss.
Compatible with SL Connector Housing systems for flexible integration.
Rated for a current of 3 amperes suitable for electronic applications.

Product Description

Molex 16-02-0105 is a Male Crimp Terminal from the 70021 series, engineered with tin-plated phosphor bronze contacts for excellent electrical conductivity and corrosion resistance. Rated to carry 3 amperes current, this crimp terminal supports wire gauges between 30 AWG minimum and 24 AWG maximum. The crimp termination type ensures robust mechanical and electrical connections suitable for industrial and electronic use.

Designed for integration with SL Connector Housing, this crimp terminal offers reliable performance across a wide temperature range from -40°C to 105°C, making it ideal for applications in electronics manufacturing, industrial assemblies, and laboratory settings.

The maximum contact resistance is capped at 15 milliohms, which contributes to high signal integrity and efficient power transmission. These terminals support automated insertion processes, improving production efficiency and assembly consistency.

Materials used include phosphor bronze for the contact base and a tin plating to enhance durability and reduce oxidation. This product complies with modern electronics standards and fits seamlessly in connectors requiring high-quality male crimp contacts.

This product is well-suited for industrial, laboratory, automation, and manufacturing applications where reliable electrical connections are critical. Its compact design and precise construction allow for easy handling and installation.

Constructed with phosphor bronze contact material for durability. Contact plating is tin for reliable conductivity and corrosion resistance. Supports wire sizes ranging from 30 AWG minimum to 24 AWG maximum. Designed for crimp termination to ensure secure and efficient connection.

Operates reliably in temperatures from -40°C to 105°C. Maximum contact resistance of 15 milliohms ensures minimal signal loss. Compatible with SL Connector Housing systems for flexible integration. Rated for a current of 3 amperes suitable for electronic applications.

Explore more high-quality Crimp Contacts and connectors with Molex products on EnvMart to enhance your electronic component assemblies and reliability.
