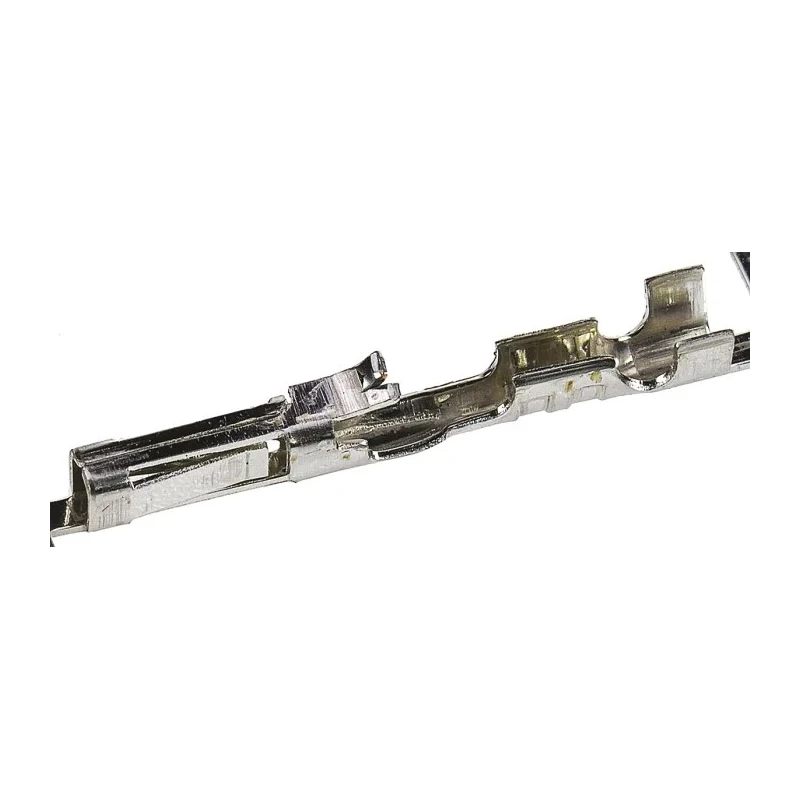

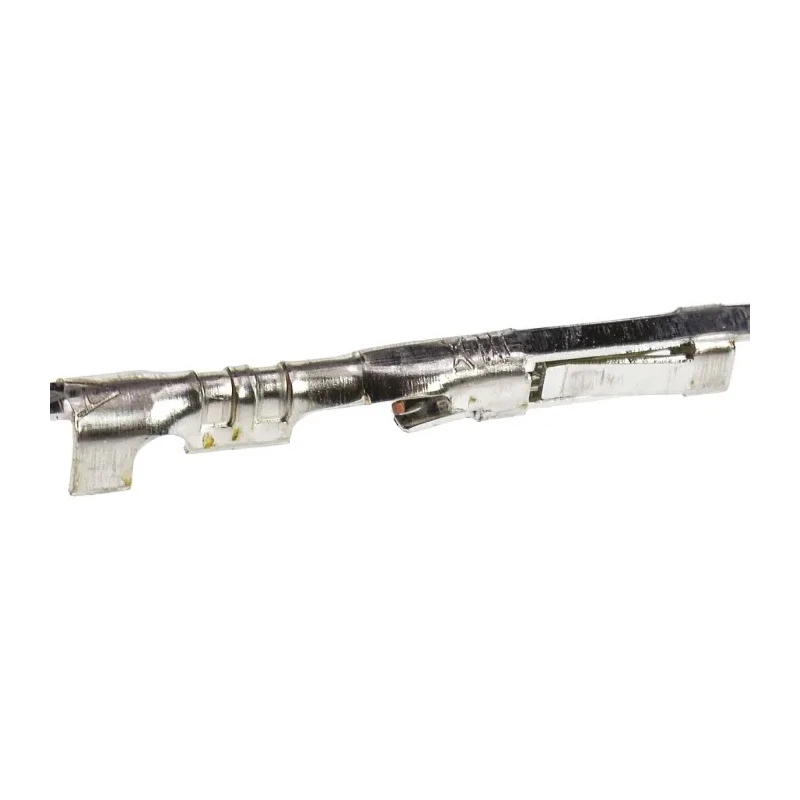

Molex 70058 Series Female Crimp Terminal, 3A Current, 30 AWG Min Crimp, 24 AWG Max Crimp, Tin Plated Phosphor 16-02-0069
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Constructed with phosphor bronze contact material for superior conductivity.
- Tin plating provides excellent resistance against oxidation and corrosion.
- Designed for use with SL connector housing for secure PCB connections.
- Supports up to 3A current with a maximum contact resistance of 15mΩ.
- Operates reliably within a wide temperature range from -40°C to 105°C.
- Termination by crimping ensures strain relief and electrical integrity.
- Suitable for applications in robotics, telecommunications, and consumer electronics.
- Compatible with multiple SL series crimp contact housings for versatile assembly needs.
Product Description
Molex 16-02-0069 is a female crimp terminal from the 70058 series, engineered to provide dependable electrical connections for control and signal wiring applications. With a current rating of 3A and compatibility with wire sizes ranging from 30 AWG (0.05 mm²) up to 24 AWG (0.2 mm²), this terminal is a versatile solution for PCB connectors.
The terminal contact is made of phosphor bronze, delivering excellent conductivity while its tin plating enhances resistance to corrosion and oxidation, making it ideal for use in humid or demanding environments. The termination is achieved by crimping, which includes a strain relief area to grip the insulator and a crimp zone to secure the conductor, ensuring both mechanical stability and electrical performance.
Designed to mate with SL connector housings, this terminal facilitates quick and secure connections on printed circuit boards. It is certified to operate across a broad temperature spectrum from -40°C to 105°C, maintaining integrity under extreme conditions. The maximum contact resistance is 15 milliohms, which helps minimize signal loss and heat generation.
Typical industrial applications include robotics systems, telecommunication devices, and consumer electronics where small wire terminations require stable electrical contact and mechanical durability.
The 70058 series terminals align with other Molex SL series crimp contacts such as 71851 and 70021, expanding compatibility with various connector housings for tailored assembly configurations.
Phosphor bronze contact material ensures effective electron flow. Tin contact plating protects against environmental effects. Crimp termination type for robust cable attachment. Wide operating temperature range from -40°C to +105°C.
Maximum contact resistance of 15 milliohms assists in energy efficiency. Supports current up to 3 amperes for moderate power applications. Compatible with various SL series connector housings. Used in robotics, telecommunications, and consumer electronics sectors.
Explore the full range of Molex Crimp Terminals and connectors on EnvMart for reliable industrial-grade electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal supports a current rating of 3A.
It is compatible with wire sizes ranging from 30 AWG (0.05 mm²) to 24 AWG (0.2 mm²).
The contact material is phosphor bronze, which provides excellent conductivity.
This terminal uses crimp termination, which ensures mechanical stability and electrical performance.
The maximum contact resistance is 15 milliohms, which helps minimize signal loss.
It operates reliably within a temperature range from -40°C to 105°C.
It is designed for use with SL connector housings for secure PCB connections.
This terminal is suitable for applications in robotics, telecommunications, and consumer electronics.
The contact is tin plated, providing excellent resistance against oxidation and corrosion.
This terminal belongs to the Molex 70058 series.
Yes, it is compatible with various SL series crimp contact housings, including 71851 and 70021.
The country of origin for this terminal is India.
