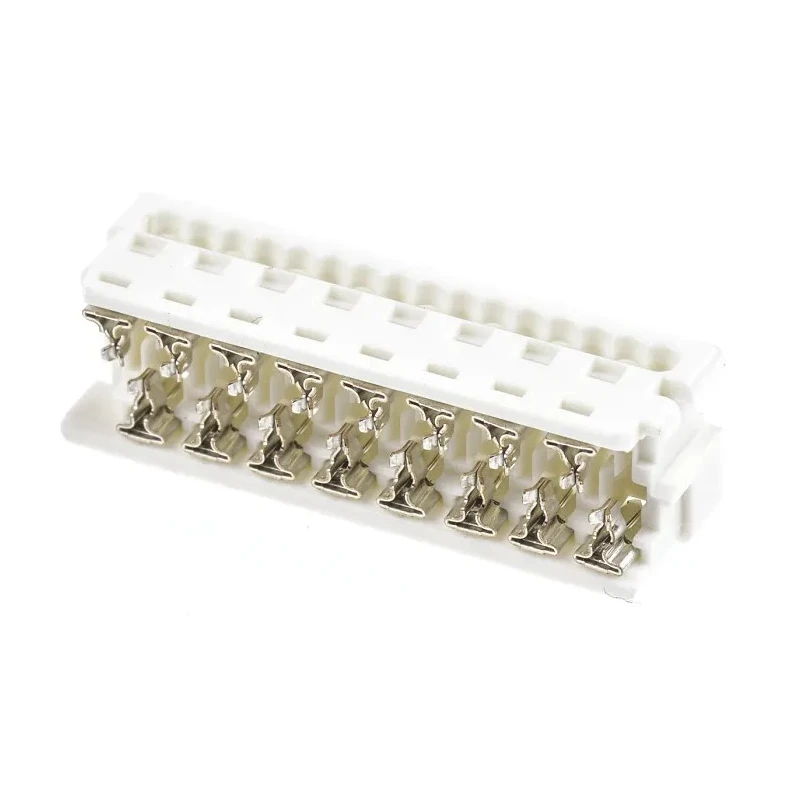

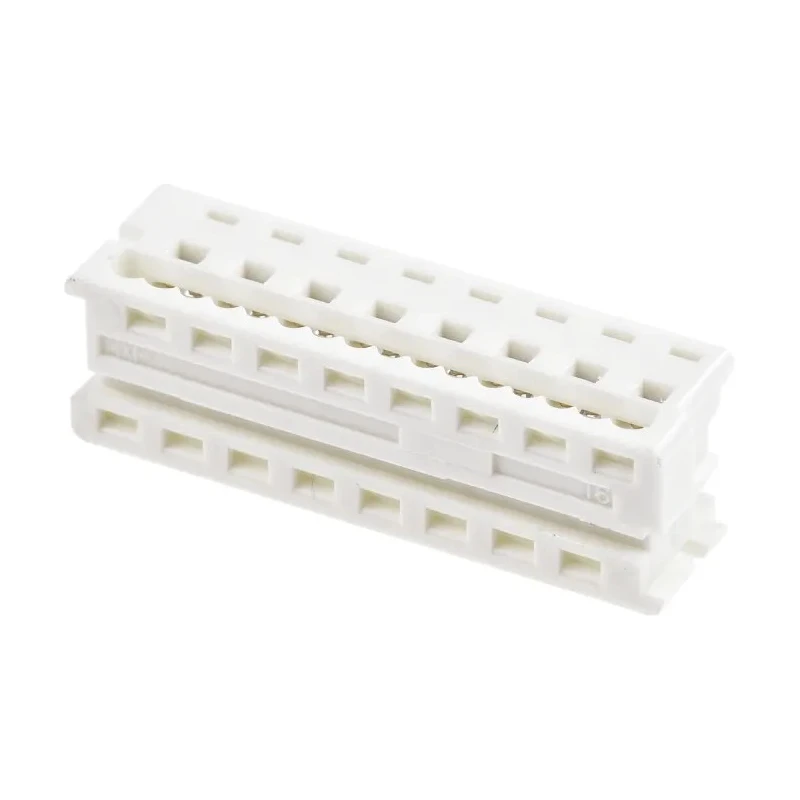

Molex 16-Way IDC Connector Female for Cable, 2 Row, 1.27mm Pitch, 1.2A Current, 250V AC 90327-0316
Specifications
| Country of Origin | Ireland |
|---|---|
| Voltage | 250V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.2A |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Picoflex |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- The connector features 16 contacts arranged in 2 rows for compact design.
- Pitch of 1.27mm supports high-density wiring layouts.
- Supports a current rating of 1.2A and voltage rating of 250V AC.
- Unshrouded female connector type with tin over nickel plating for corrosion resistance.
- Constructed with phosphor bronze contacts and PET housing for durability.
- Right angle orientation enables versatile cable routing.
- Operates reliably from -40°C up to a maximum temperature of 105°C.
- Termination by insulation displacement contact (IDC) ensures secure cable insertion.
Product Description
Molex 90327-0316 is a 16-Way IDC Connector Female designed for cable mounting with 2 rows of contacts spaced at 1.27mm pitch. It supports a current rating of 1.2A and a voltage rating of 250V AC, making it suitable for various electronic and automotive applications.
Its unshrouded configuration and right angle orientation enable efficient cable management in tight spaces. The connector features tin over nickel contact plating over phosphor bronze material and a housing made from polyethylene terephthalate (PET), providing durability and resistance against corrosion and mechanical stress.
Designed to operate within a temperature range from -40°C to 105°C, this connector ensures reliable performance in harsh environments. The insulation displacement contact (IDC) termination type simplifies assembly and offers precise positioning, facilitated by the Picoflex series' known high resistance to vibration and shock.
The compact design saves space by 50% compared to traditional pitches, with a low mated height of only 6.4mm. The connector is RoHS compliant and meets UL (E29179) and CSA (LR19980-181) approvals, guaranteeing quality and safety.
This connector is ideal for use in automotive electronics, consumer devices, industrial machinery, and other environments demanding robust, compact, and reliable wire-to-board connections. The product is manufactured in Ireland, underscoring high European manufacturing standards.
The connector features 16 contacts arranged in 2 rows for compact design. Pitch of 1.27mm supports high-density wiring layouts. Supports a current rating of 1.2A and voltage rating of 250V AC. Unshrouded female connector type with tin over nickel plating for corrosion resistance.
Constructed with phosphor bronze contacts and PET housing for durability. Right angle orientation enables versatile cable routing. Operates reliably from -40°C up to a maximum temperature of 105°C. Termination by insulation displacement contact (IDC) ensures secure cable insertion.
Complies with UL and CSA standards for quality assurance. Ideal for automotive, consumer electronics, and industrial cable assemblies. Explore more IDC Connectors and related components in EnvMart's Electronics Components category to find the perfect connector for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.2A and a voltage rating of 250V AC.
The connector features a pitch of 1.27mm and has 16 contacts arranged in 2 rows.
It is constructed with phosphor bronze contacts and a housing made from polyethylene terephthalate (PET).
It operates reliably within a temperature range from -40°C to 105°C.
This unit uses insulation displacement contact (IDC) termination, ensuring secure cable insertion.
The connector has a right angle orientation, which enables versatile cable routing in tight spaces.
Yes, this connector is RoHS compliant, ensuring it meets environmental standards.
It meets UL (E29179) and CSA (LR19980-181) approvals, guaranteeing quality and safety.
This model features female contacts, making it a female connector type.
It is ideal for use in automotive electronics, consumer devices, and industrial machinery.
The connector is manufactured in Ireland, adhering to high European manufacturing standards.
The compact design saves space by 50% compared to traditional pitches, with a low mated height of only 6.4mm.
