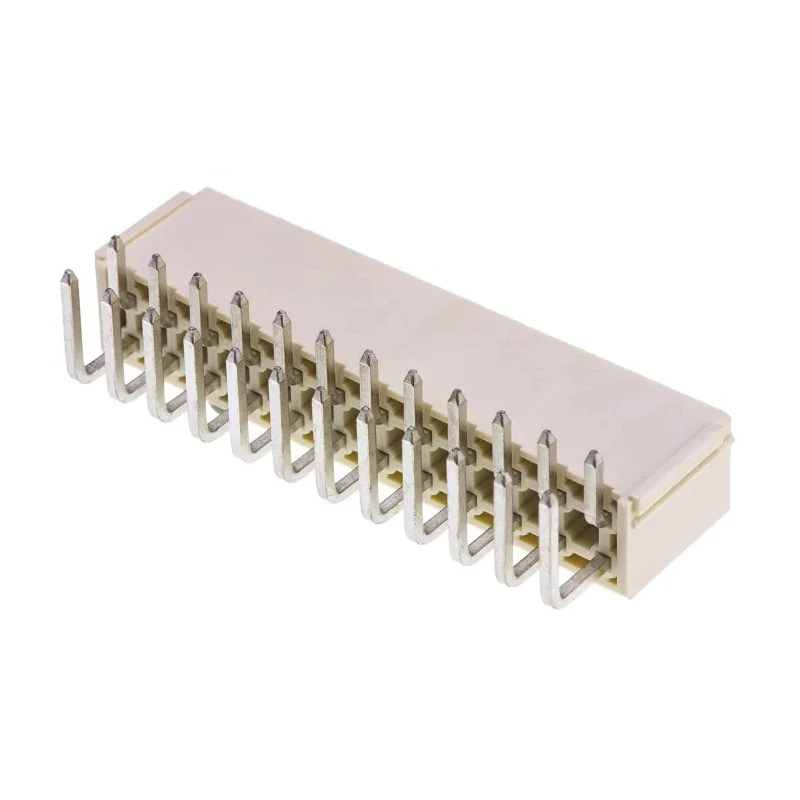

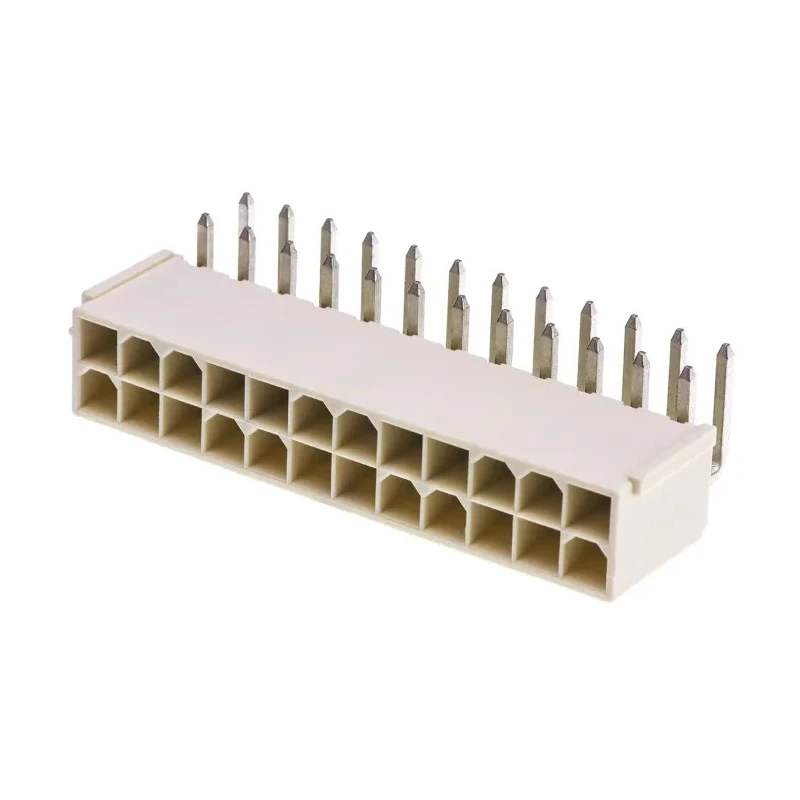

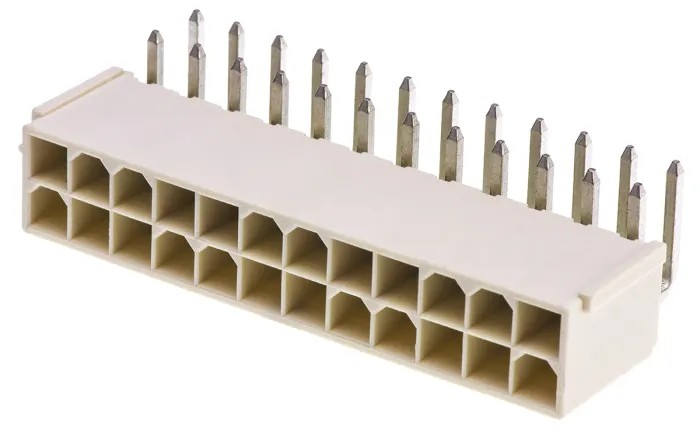

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header 24 Contacts 4.2 mm Pitch Nylon Housing 87427-2402
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- Rated for 6A current at a maximum voltage of 600V.
- Features a shrouded design with nylon housing for durable insulation.
- Right angle orientation with two rows and 4.2 mm row pitch.
- Constructed with brass contacts plated with tin for corrosion resistance.
- Through hole mount type ideal for PCB board applications.
- Contact tail pin length is 3.3 mm suitable for secure soldering.
- Operates safely between -40°C and 105°C temperature range.
- Compatible with Mini-Fit Jr 5557 Series receptacle housings.
Product Description
Molex 87427-2402 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a high-quality, wire-to-board connector designed for electronic component applications requiring reliable 24-contact connections. This component features a robust nylon housing that is shrouded to provide insulation and mechanical protection for the contacts. Its right angle orientation facilitates compact PCB layouts.
This PCB header supports a maximum operating current of 6 amps and voltage up to 600 volts, making it suitable for power and signal transmission in industrial, electronic manufacturing, and HVAC control systems. The connector utilizes brass contacts with tin plating to ensure corrosion resistance and dependable electrical performance over extended usage.
The termination style is through hole with a 3.3 mm tail pin length designed for soldering onto printed circuit boards, offering strong mechanical and electrical bonds. The pitch between contacts is 4.2 mm horizontally and vertically between two rows, allowing for precise alignment and mating with compatible Mini-Fit Jr receptacle housings.
Operating temperature range from -40°C to 105°C ensures performance stability in diverse environmental conditions. The shrouded design and material choices emphasize durability and safety for industrial and laboratory electronics environments.
Rated for 6A current and 600V voltage. 24 male contacts with 4.2 mm pitch. Nylon shrouded housing for insulation and protection. Right angle orientation with two rows. Brass contact material with tin plating. Through hole mounting type ideal for PCB soldering.
Contact tail pin length of 3.3 mm for secure connections. Temperature range -40°C to 105°C for versatile applications. Compatible with Mini-Fit Jr 5557 Series receptacles.
This connector is widely used in industrial electronics, manufacturing equipment, HVAC controllers, and laboratory instrumentation, ensuring robust and efficient electrical connections. Molex's Mini-Fit Jr series continues to be one of the top choices for reliable power and signal connectors.
Explore more quality PCB Headers and electronic connectors at EnvMart to enhance your industrial and laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex Mini-Fit Jr Series PCB header is rated for a maximum current of 6A.
This connector can handle a maximum voltage of 600V.
It utilizes a through hole mounting type, which is ideal for soldering onto printed circuit boards.
The pitch between the contacts is 4.2 mm, both horizontally and vertically between the two rows.
It operates safely within a temperature range of -40°C to 105°C.
The housing is made of nylon, and the contacts are constructed from brass with tin plating for corrosion resistance.
This model features 24 male contacts.
The contact tail pin length is 3.3 mm, designed for secure soldering.
This model has a right angle orientation, facilitating compact PCB layouts.
Yes, it is compatible with Mini-Fit Jr 5557 Series receptacle housings.
It uses a wire-to-board connector system, suitable for various electronic applications.
This connector is widely used in industrial electronics, manufacturing equipment, HVAC controllers, and laboratory instrumentation.
