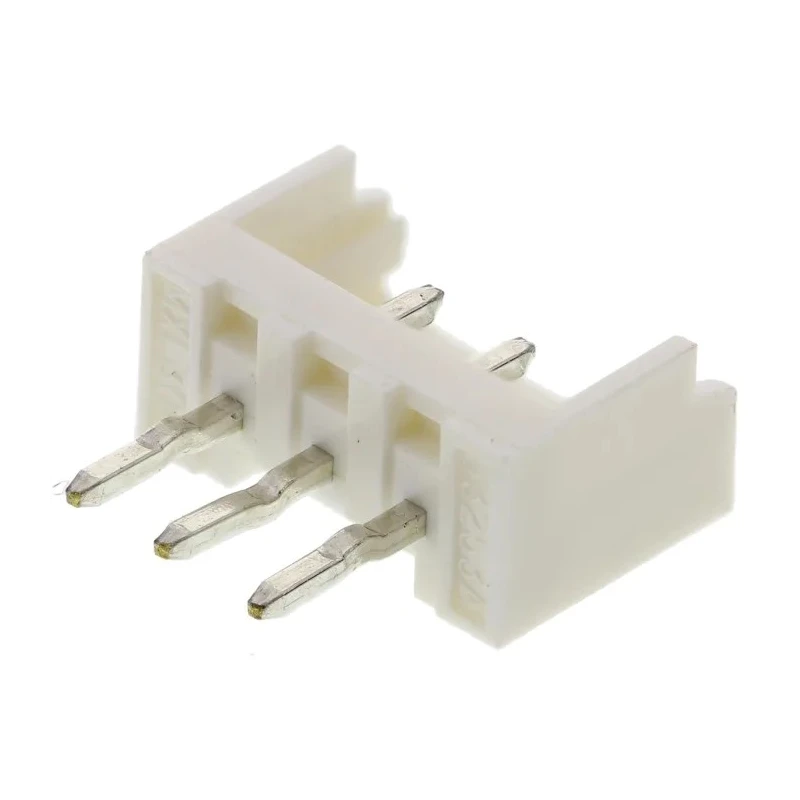

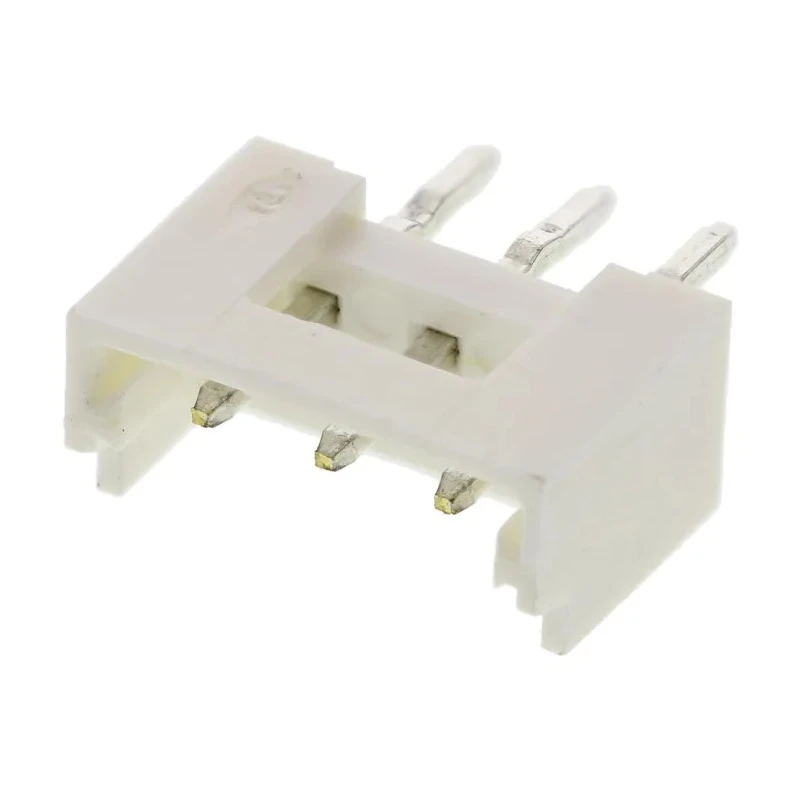

JST Micro-Latch Series PCB Header, 2 mm Pitch, 3 Contacts, 1 Row, Straight Orientation, Shrouded, Through Hole 53253-0370

Free Delivery in India | Lowest Global Shipping Charges

JST Micro-Latch Series PCB Header, 2 mm Pitch, 3 Contacts, 1 Row, Straight Orientation, Shrouded, Through Hole 53253-0370



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	JST
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Micro-Latch
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a 2 mm pitch configuration ensuring precise connection spacing.
Constructed with brass contacts plated with tin for enhanced conductivity and durability.
Shrouded design provides protection against accidental disconnections and misalignments.
Rated for 2A current supporting diverse electronic application needs.
Through-hole mount type ensures solid solder termination on PCB.
Single row, straight orientation optimizes PCB space management.
Operates reliably between -40°C and 105°C temperature range.
Compatible with recommended PCB thickness of 1.60 mm for optimal fit.

Product Description

Molex 53253-0370 Micro-Latch Series PCB Header is designed for wire-to-board electronic connections with 3 brass contacts spaced at a precise 2 mm pitch. The connector features a straight orientation and a shrouded housing made from durable nylon, which maximizes protection against accidental disconnections and contact damage. This PCB header supports a maximum current rating of 2A and a voltage of 125V, operating reliably within -40°C to 105°C temperature limits.

The through-hole mounting design ensures strong solder joints for dependable signal transmission and mechanical stability in printed circuit board assemblies. Its vertical, single-row contact layout facilitates efficient space utilization on PCBs while maintaining ease of installation and alignment during manufacturing.

This product is suited for electrical control panels, automated equipment, and mechanical devices requiring compact and reliable wiring solutions. The recommended PCB thickness of 1.60 mm helps maintain connector stability and performance under various operating conditions.

Key features include the shrouded connector system that eliminates misalignment risks and brass contacts that sustain high conductivity and mechanical longevity. This Molex PCB Header enables up to 30 mating cycles, supporting long-term dependable use in industrial, laboratory, and commercial electronics manufacturing contexts.

2 mm pitch ensures accurate and consistent connector spacing. Brass contact material offers enhanced electrical conductivity and durability. Shrouded housing design protects contacts and prevents misalignments. Supports current rating of 2A and voltage up to 125V.

Through-hole solder termination ensures reliable PCB mounting. Operates in temperature range from -40°C to 105°C for diverse environments. Single row, straight orientation for compact PCB layouts. Recommended PCB thickness of 1.60 mm for optimal fit and stability.
