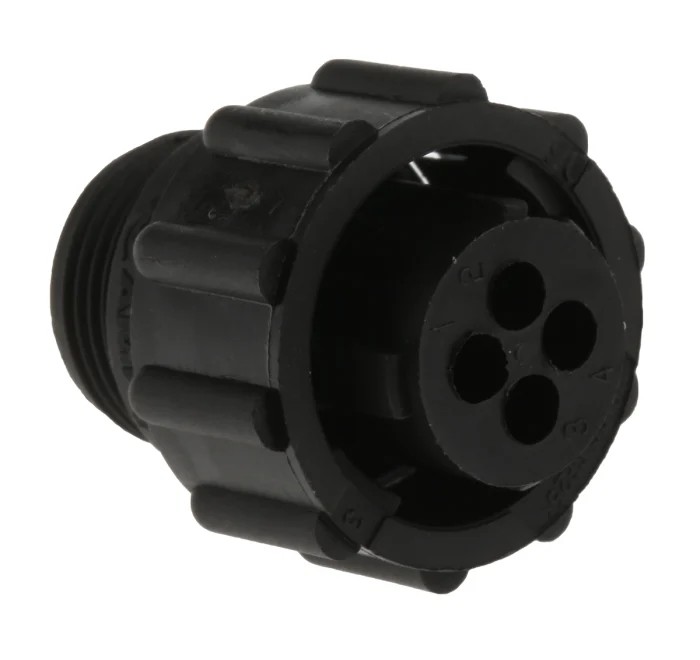

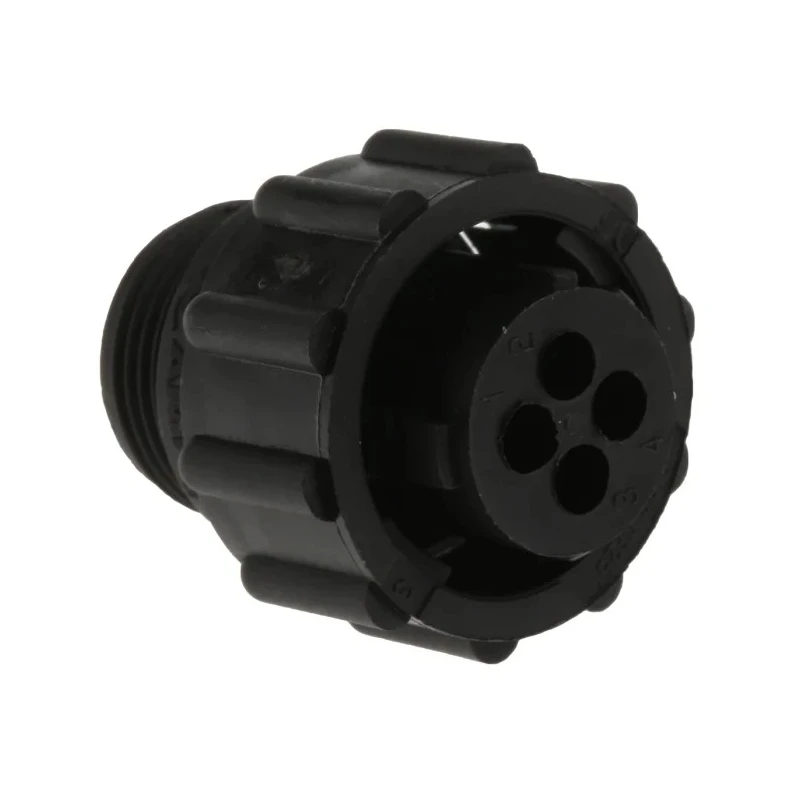

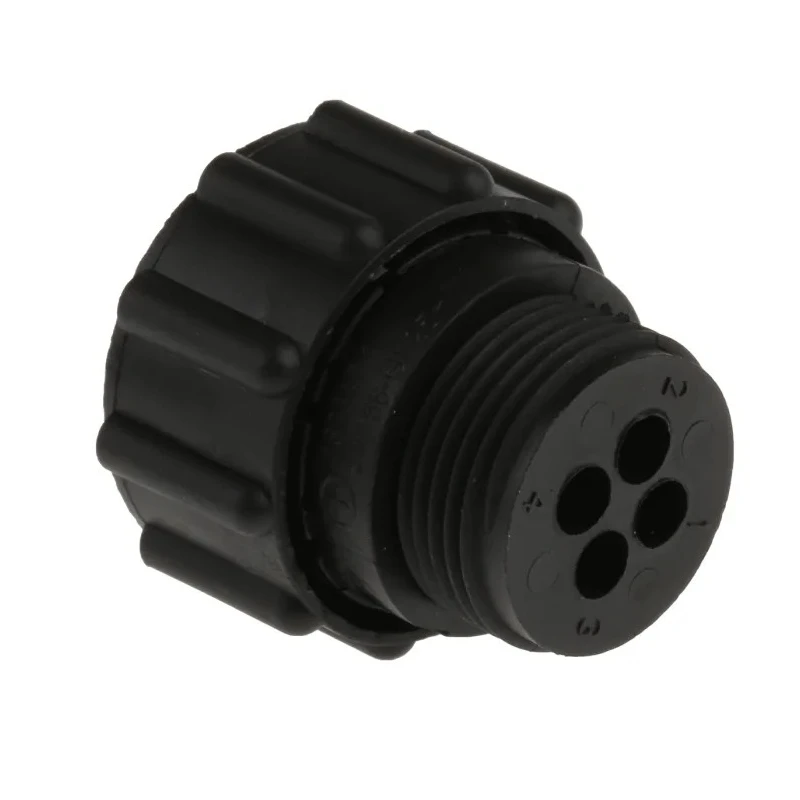

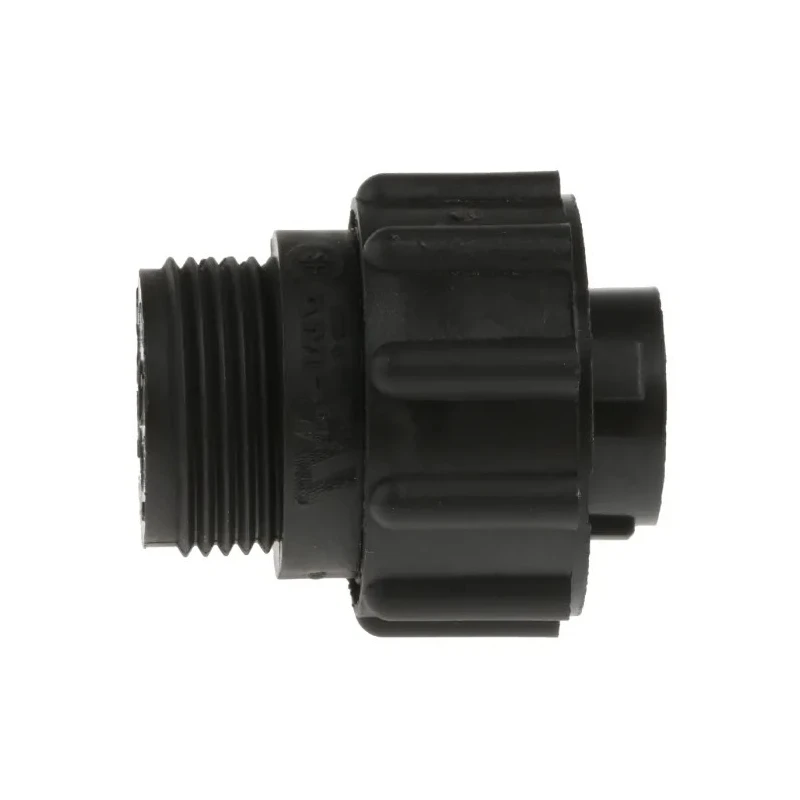

TE Connectivity Circular Connector, 4 Contacts, Cable Mount, Standard Size, Plug Female, CPC Series , 600V, 13A 182647-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 182647-1 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CSA, RoHS, UL 94V-0 |
| Contact Plating | Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 11 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Features a plug with female contacts for secure cable connections.
- Built for industrial use with a rugged thermoplastic housing.
- The CPC series offers quick-connect and disconnect capability to save assembly time.
- Rated for operation between -55°C and 105°C with UL 94V-0 flame retardant standards.
- Designed with nickel-plated contacts providing excellent corrosion resistance.
- Threaded mating ensures reliable and vibration-resistant connections.
- Supports current ratings up to 13A and voltage ratings up to 600V.
- Ideal for transportation, industrial machinery, HVAC, and automation systems.
Product Description
TE Connectivity 182647-1 circular connector is a cable mount, standard size plug featuring 4 female contacts. Rated for 600 volts and 13 amps, this connector comes with a thermoplastic housing that is both heat-resistant and flame-retardant, rated UL 94V-0.
This connector is part of the CPC series, designed for industrial applications requiring rugged and reliable circular connections. It offers a quick connect/disconnect feature that reduces assembly time in the field. The nickel-plated contacts ensure resistance against corrosion thus enhancing long-term reliability.
With an operating temperature range of -55°C to 105°C, this connector is suitable for harsh environments including rail transit, industrial machinery, HVAC systems, and automotive applications like buses and construction equipment.
The threaded mating type ensures a secure, vibration-resistant connection, while the crimp termination allows for easy field assembly and quick repair by replacing damaged contacts.
The thermoplastic housing is lightweight and less expensive than metal alternatives yet remains highly durable and resistant to shock and vibration. This connector supports current loads up to 13 amps and voltages up to 600 volts, making it suitable for signal and power applications alike within industrial settings.
Features a plug with female contacts for secure cable connections. Built for industrial use with a rugged thermoplastic housing. The CPC series offers quick-connect and disconnect capability to save assembly time. Rated for operation between -55°C and 105°C with UL 94V-0 flame retardant standards.
Designed with nickel-plated contacts providing excellent corrosion resistance. Threaded mating ensures reliable and vibration-resistant connections. Supports current ratings up to 13A and voltage ratings up to 600V. Ideal for transportation, industrial machinery, HVAC, and automation systems.
Compatible with Series 1 CPC connector contacts, this circular connector is engineered for rapid field assembly and maintenance, thereby reducing downtime and increasing operational efficiency. Its versatile design supports numerous industrial control, automation, and transportation applications requiring dependable signal and power transfer.
Explore the range of TE Connectivity circular connectors on EnvMart for all your industrial connector needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for operation at 600 volts.
It supports a maximum current rating of 13 amps.
The connector operates within a temperature range of -55°C to 105°C.
The housing is constructed from thermoplastic, which is both heat-resistant and flame-retardant.
This circular connector features 4 female contacts.
It utilizes a crimp termination type for easy field assembly.
It complies with CSA, RoHS, and UL 94V-0 standards.
The connector features a threaded mating type, ensuring a reliable and vibration-resistant connection.
It is designed for use in industrial machinery, HVAC systems, transportation, and automation applications.
The shell size for this model is 11.
The country of origin for this connector is India.
This is a cable mount, standard size plug with female contacts.
