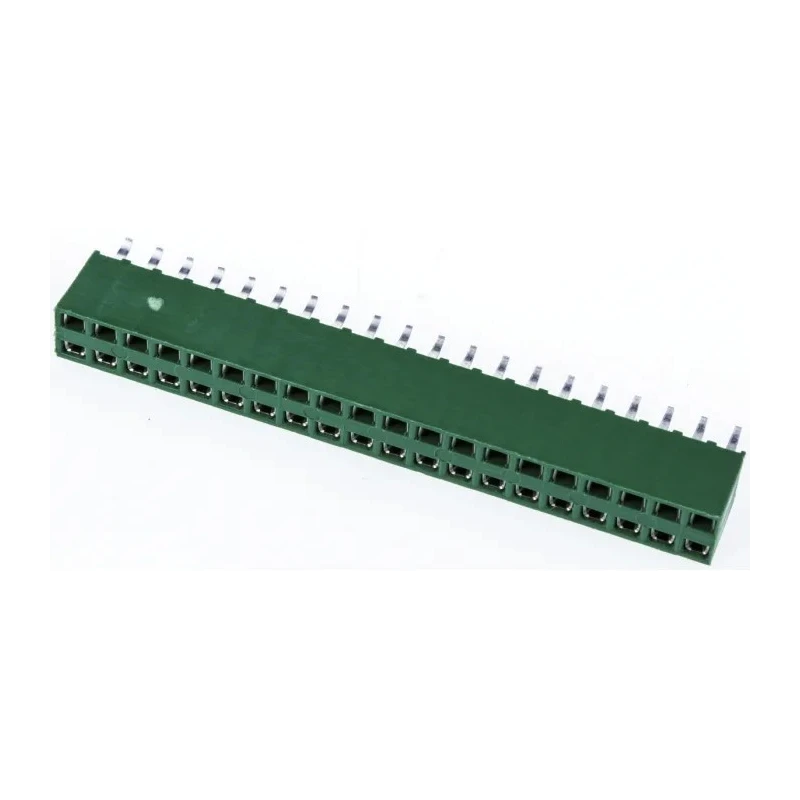

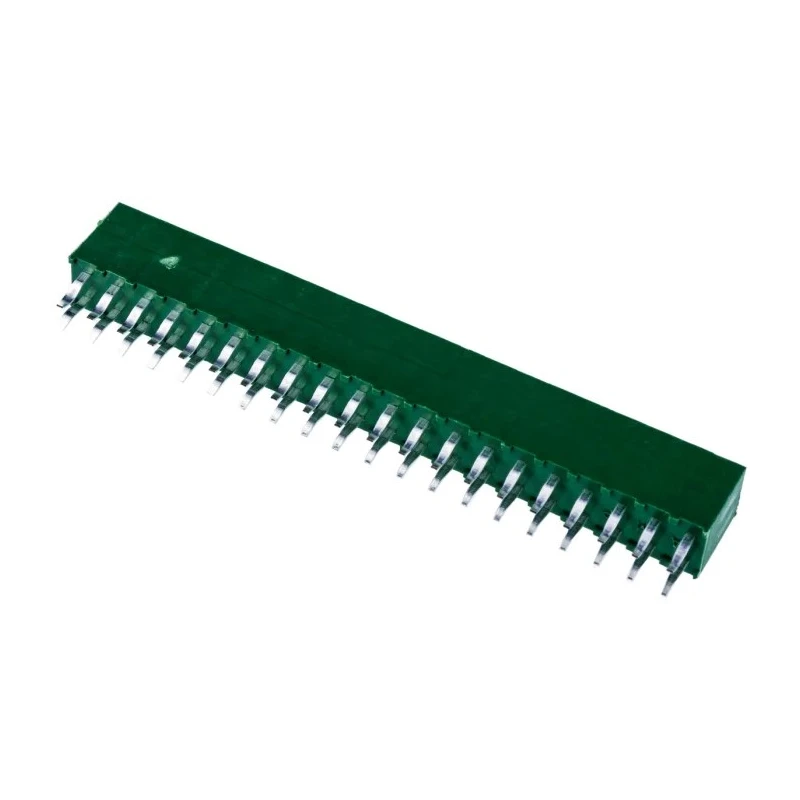

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Contains 40 contacts arranged in 2 rows for efficient signal transmission.
- Features a 2.54 mm pitch suitable for standard PCB layouts.
- Constructed with polybutylene terephthalate housing for flame retardancy.
- Utilizes bronze contacts plated with gold for durability and conductivity.
- Kinked solder legs provide secure retention on PCB.
- Supports a current rating of 12 A for high-performance applications.
- Designed for a straight orientation and through-hole mount.
- Operates reliably in temperatures ranging from -40°C to 105°C.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket model HV100 is a robust connector solution featuring 40 female contacts arranged in 2 rows with a 2.54 mm pitch. This connector is engineered with a polybutylene terephthalate housing that meets UL 94V-0 flame retardant standards, enhancing safety in electronic assemblies.
The solder termination utilizes kinked solder legs for secure retention on printed circuit boards through through-hole mounting. Bronze contact material with gold plating ensures reliable conductivity and corrosion resistance, supporting a current rating of 12 A.
Designed to operate over a wide temperature range from -40°C to 105°C, this PCB socket is ideal for demanding industrial, laboratory, manufacturing, and commercial electronic applications that require dependable board-to-board connectivity.
The AMPMODU HV100 series also incorporates board stand offs and is available in stacking heights of 7 mm or 8.5 mm, enabling versatile use in modular electronic assemblies requiring vertical mounting and top entry access.
Contains 40 contacts arranged in 2 rows for efficient signal transmission. Features a 2.54 mm pitch suitable for standard PCB layouts. Polybutylene terephthalate housing provides UL 94V-0 flame retardancy. Bronze contacts plated with gold ensure durable, corrosion-resistant connections.
Kinked solder legs allow secure through-hole mounting to PCBs. Rated for 12 A current capacity in industrial applications. Wide operating temperature range from -40°C to 105°C. Board stand offs enhance stability in assembly.
Compliant with RoHS environmental standards.
This TE Connectivity AMPMODU HV100 PCB Socket supports demanding industrial and electronic manufacturing needs, making it suitable for complex boards in automation, control systems, telecommunications, and other precision electronics sectors.
Explore our comprehensive range of PCB Sockets in the Electronics & Electricals category at EnvMart for compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HV100 PCB socket supports a current rating of 12 A, making it suitable for high-performance applications.
This model features a pitch size of 2.54 mm, which is standard for PCB layouts.
The HV100 socket contains 40 contacts arranged in 2 rows for efficient signal transmission.
It is constructed with a polybutylene terephthalate housing and bronze contacts plated with gold for durability and conductivity.
The HV100 PCB socket operates reliably within a temperature range of -40°C to 105°C.
This unit is designed for through-hole mounting, utilizing kinked solder legs for secure retention on PCBs.
Yes, it is compliant with RoHS environmental standards.
The socket is designed with a straight orientation for board-to-board connectivity.
This model features a solder termination type, which is standard for PCB connections.
It is suitable for demanding industrial, laboratory, manufacturing, and commercial electronic applications that require reliable board-to-board connectivity.
The HV100 series is available in stacking heights of 7 mm or 8.5 mm, allowing for versatile use in modular electronic assemblies.
The contacts in the HV100 socket are female, designed for connecting to male connectors on PCBs.
