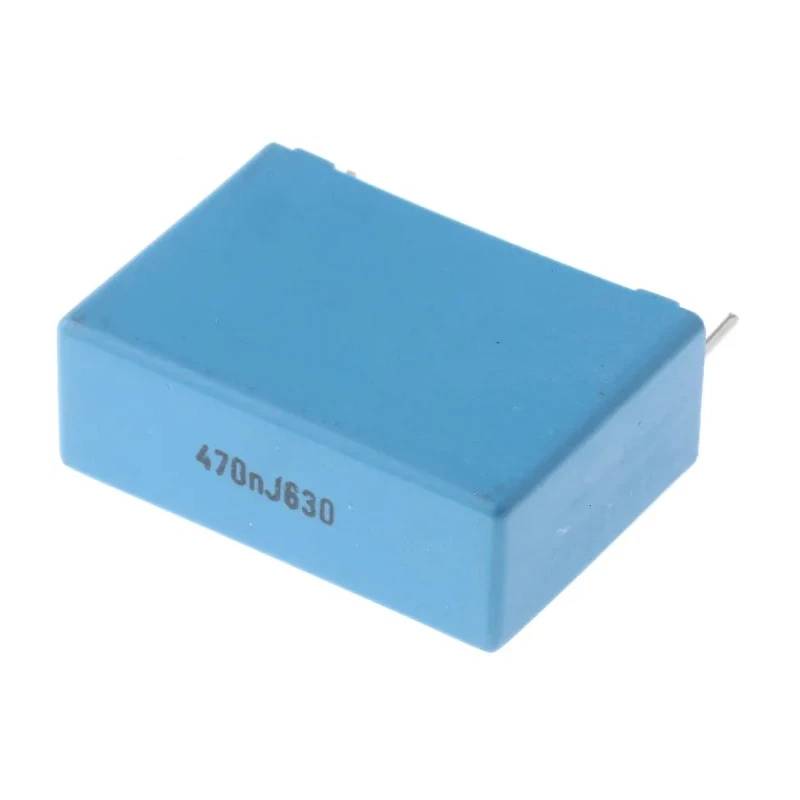

KEMET Film Capacitor 470 nF 630 V DC 180 V AC ±5 % Through Hole PHE450

KEMET PHE450 Film Capacitor 470 nF 630 V DC 180 V AC ±5 % Through Hole is engineered for demanding electronic applications requiring high current stress endurance and reliability. Its double metallized polypropylene film technology encapsulated within a UL 94 V-0 compliant self-extinguishing resin offers both safety and longevity.

This capacitor features a rated DC voltage of 630 V and AC voltage rating of 180 V, making it ideal for use in power supplies, deflection circuits in televisions, snubber circuits, and pulse circuits. The ±5 % capacitance tolerance ensures accurate and stable performance in sensitive electronics.

Designed for through-hole mounting, it has radial terminals with a lead pitch of 27.5 mm, lead length of 6 mm, and lead diameter of 0.8 mm, allowing for secure installation on PCBs. It is rated for continuous operation over a temperature range from -55°C to 105°C, suitable for both industrial and commercial environments.

The compact size with dimensions 31.5 mm length, 22.5 mm height, and 11.5 mm width makes it versatile for various electronics design layouts. Additionally, its very low dissipation factor of 0.0003 % reduces power loss, enhancing circuit efficiency.

Compliant with RoHS standards, this capacitor ensures environmentally safe applications. The PHE450 series capacitors are manufactured in Finland and supplied in tape and reel packaging facilitating automated assembly processes.

Double metallized polypropylene film construction provides reliability and performance. Encapsulated in a self-extinguishing resin rated UL 94 V-0 for enhanced safety. Rated DC voltage of 630 V and AC voltage of 180 V for versatile use cases.

Capacitance tolerance of ±5 % allows precise circuit operation. Radial lead terminals with 27.5 mm pitch for secure PCB mounting. Operating temperature range from -55°C to 105°C ensures broad application range. Compact dimensions facilitate flexible electronic design integration.

Low dissipation factor of 0.0003 % minimizes energy losses. RoHS compliant to meet environmental regulations. Supplied in tape and reel packaging for efficient automated installation.

This KEMET PHE450 Film Capacitor fits a wide range of industrial, laboratory, and commercial electronics, including switch mode power supplies, pulse circuits, and deflection circuits. Available for purchase on EnvMart as part of a comprehensive selection of Film Capacitors for electronics components.
