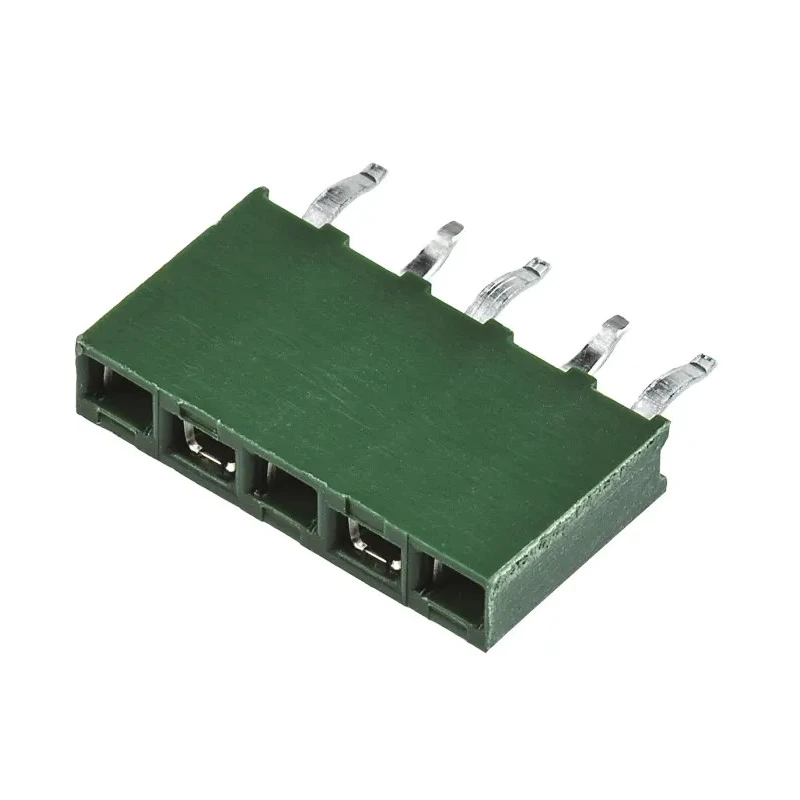

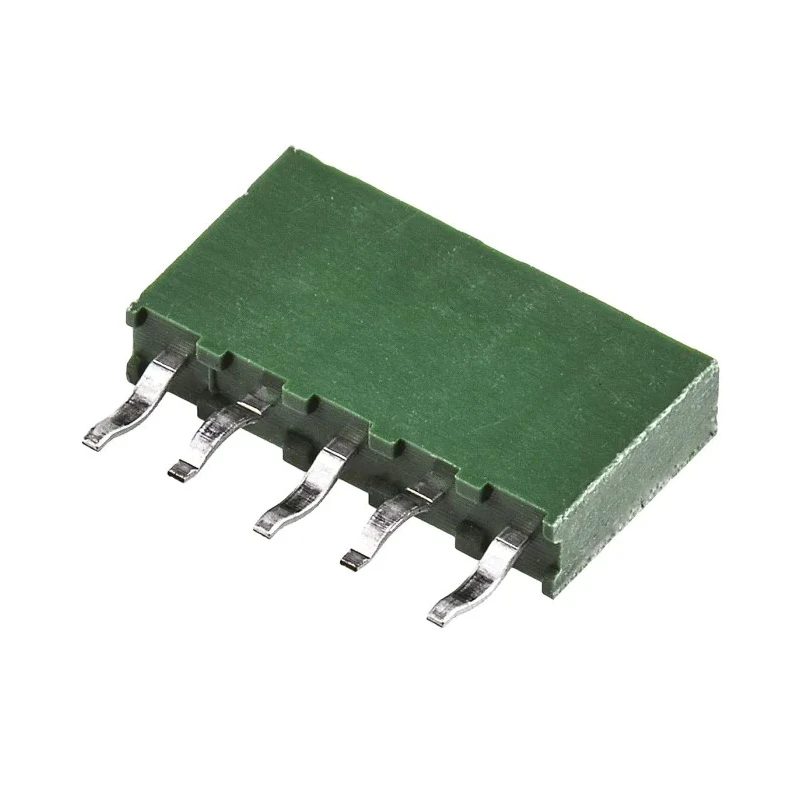

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 5-Contact, 1 Row, 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Kinked solder legs ensure reliable and secure PCB retention.
- Constructed with UL 94V-0 flame retardant polyester housing for enhanced safety.
- Designed as a female contact type with bronze contacts plated in tin for durability.
- Supports up to 12A current with 1 row and 5 contacts on a 2.54 mm pitch.
- Suitable for vertical mounting with straight orientation and board-to-board connector system.
- Operating temperature range from -55°C to 105°C supporting various industrial applications.
- Available in two mounting heights for stacking applications providing design flexibility.
- Incorporates board stand offs for secure and stable PCB mounting.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket, model HV100, is a precision-engineered component featuring 5 contacts arranged in a single row on a 2.54 mm pitch. It is designed for robust board-to-board electrical connections in demanding environments, handling currents up to 12A. The socket features kinked solder legs that offer secure retention to the PCB, enhancing durability in industrial, electronic manufacturing, and assembly applications.
The housing material is polyester meeting UL 94V-0 flame retardant standards, ensuring both safety and reliability. Bronze contact material with tin plating provides excellent conductivity and corrosion resistance, while the female contact gender supports versatile compatibility with various connectors.
With operating temperatures spanning -55°C to +105°C, this PCB socket is suitable for a wide range of applications including electronics assembly, instrumentation, and industrial controls. The socket's straight orientation and through-hole mounting type enable easy integration in vertical mounting scenarios and stacking applications with varying mounting heights of 7 mm or 8.5 mm depending on the variant.
Board stand offs improve mechanical stability and ease of installation. Although no explicit certifications or approvals are listed, the component conforms to established industry standards for PCB Sockets.
This TE Connectivity AMPMODU HV100 Series Socket is ideal for manufacturers and engineers seeking reliable PCB connectors for electronic component assembly, automation systems, and various industrial and commercial electronic solutions.
Kinked solder legs for secure PCB retention. UL 94V-0 flame retardant polyester housing. Bronze contacts with tin plating ensure durability. Supports 12A current capacity and 2.54 mm pitch. Vertical mounting with straight orientation.
Operating temperature range: -55°C to 105°C. Available in 7 mm and 8.5 mm mounting heights for stacking. Board stand offs enhance mechanical stability. Female contact gender compatible with board-to-board connectors. For more specialized PCB connectors and components, browse the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current capacity of 12A.
The contacts in this socket are arranged on a 2.54 mm pitch.
The operating temperature range for this socket is from -55°C to +105°C.
The housing is made of polyester that meets UL 94V-0 flame retardant standards, while the contacts are bronze plated in tin for durability.
This model features 5 contacts arranged in a single row.
The socket uses a solder termination type.
This socket is designed for through-hole mounting with a straight orientation.
Yes, this socket is available in two mounting heights: 7 mm and 8.5 mm, allowing for stacking applications.
The contacts in this socket are of the female gender.
This model supports a board-to-board connector system.
The socket incorporates board stand-offs that improve mechanical stability and ease of installation.
This socket is suitable for various applications including electronics assembly, instrumentation, and industrial controls.
