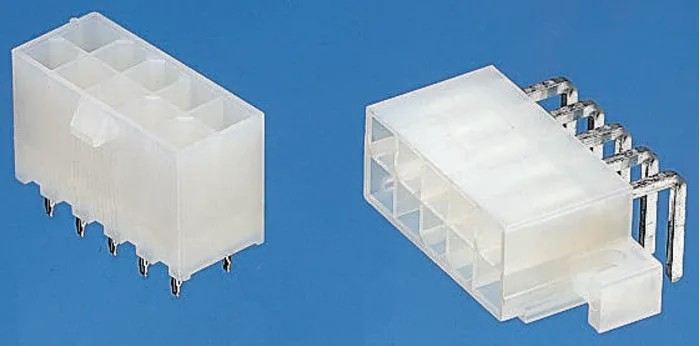

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header 16 Contacts 4.2 mm Pitch 2 Row Shrouded 39-30-0160

Molex 39-30-0160 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a 16 contact wire-to-board connector designed for high current and high density applications. Featuring a 4.2 mm pitch and 2 row configuration, this PCB header uses a shrouded nylon housing for enhanced mechanical protection and precise alignment.

The male brass contacts are tin plated to ensure reliable conductivity and resistance to corrosion. The right angle orientation and through hole mounting type provide durable attachment to PCB circuits, making this connector ideal for robust industrial, electronic, and industrial automation equipment.

Operating voltage up to 600V and current rating of 6A per contact enable usage in demanding electrical environments. Operating temperature ranges from -40°C to 105°C guarantee performance in varying conditions. The scoop-proof housings prevent contact damage during mating, and the fully isolated terminals guard against electrical arcing and debris.

16 contacts with a secure shrouded design and positive locking mechanism for accidental shock and vibration resistance. Wire-to-board connection style suitable for consumer white goods, office equipment, industrial networks, rack-mount servers, routers, and switches.

Connector housing incorporates polarization and keying features to prevent misalignment and mismating. Optional versions available with PCB retention pegs and mounting flanges for enhanced PCB stability. Manufactured in Mexico ensuring consistent quality standards.

This connector is an essential component for electronic assemblies requiring reliable power connections with high current capability and robust mechanical design. For browsing more electronic component connectors like this, please explore related PCB Headers and Power Connector categories on EnvMart.
