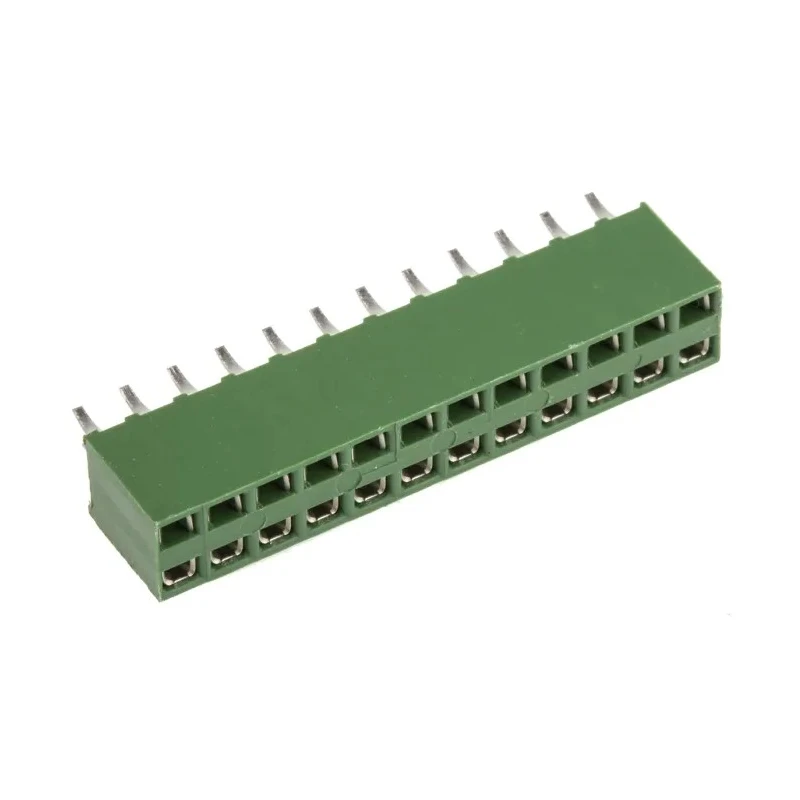

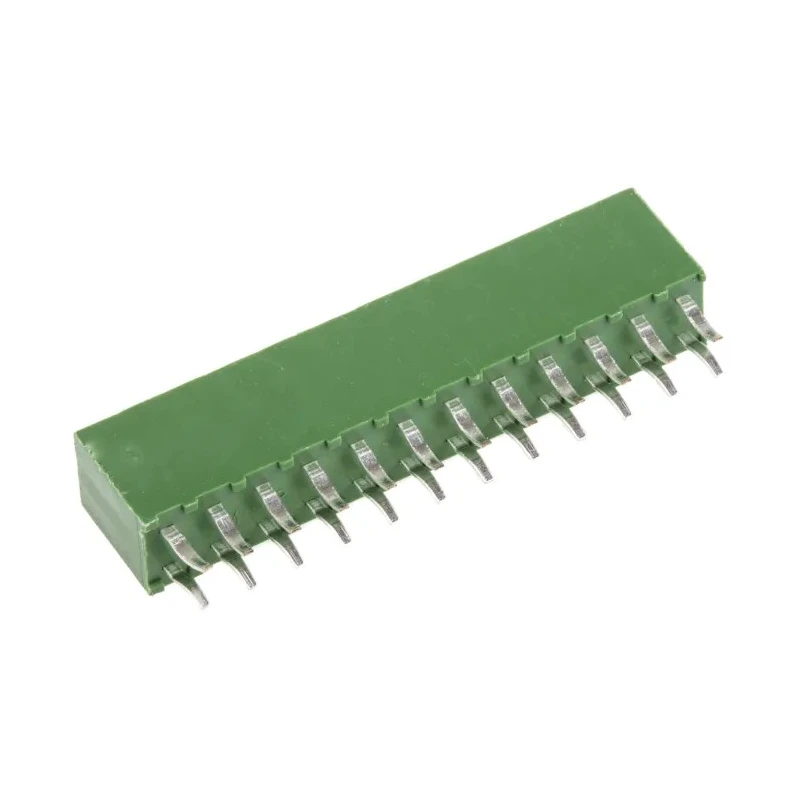

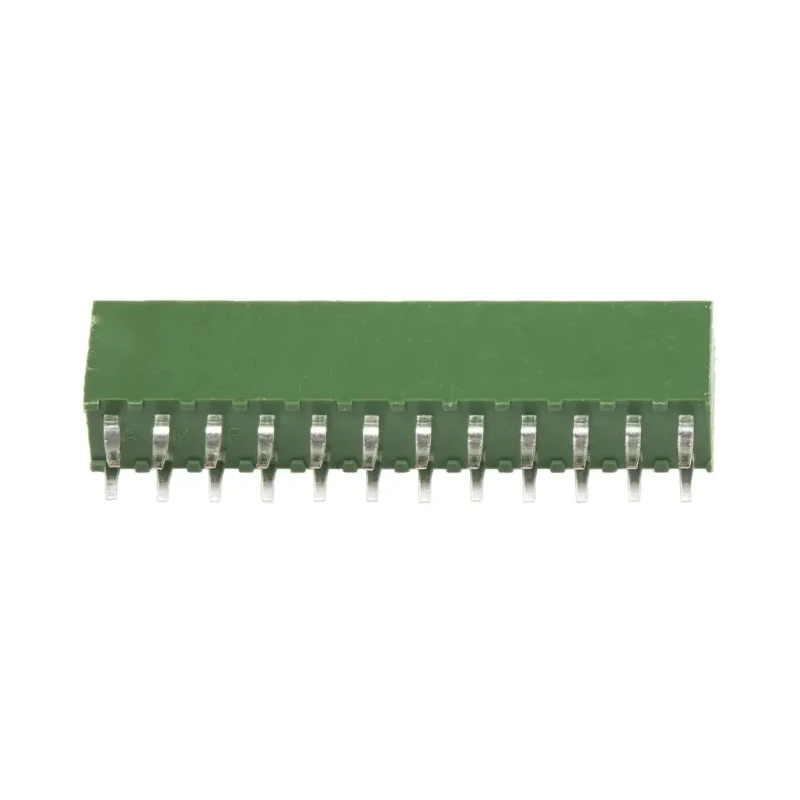

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket 24-Contact 2 Row 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features 24 female contacts arranged in 2 rows for board-to-board connector systems.
- Constructed with polybutylene terephthalate housing offering UL 94V-0 flame retardancy.
- Kinked solder legs ensure secure retention on PCB during assembly.
- Designed to operate in temperature range from -40°C to 105°C.
- Contacts made from bronze material plated with tin for reliable conductivity and corrosion resistance.
- Supports current rating of up to 12 A suitable for various electronic applications.
- Vertical mounting style with top entry improves stacking and space utilization.
- Part of the AMPMODU HV100 series suitable for diverse industrial and electronic equipment.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket is a precision-engineered connector designed for electronic and industrial applications. Featuring 24 female contacts arranged in two rows with a 2.54 mm pitch, it serves efficiently as a board-to-board connector system. Manufactured with a high-quality polybutylene terephthalate thermoplastic housing that complies with UL 94V-0 flame retardant standards, this socket ensures safety and durability in demanding environments.
The socket utilizes kinked solder legs, which enhance secure retention to the printed circuit board during assembly and operation, reducing the chance of mechanical failure. Its vertical mounting and top-entry orientation provide versatile stacking height options, facilitating compact electronic designs and efficient space usage.
Engineered for reliable performance, the contacts are made of bronze with tin plating to provide excellent electrical conductivity and resistance against corrosion. This connector supports a 12 A current rating and operates safely in temperatures ranging from -40°C to 105°C, making it suitable for a broad range of industrial, manufacturing, and electronic equipment use cases.
The AMPMODU HV100 series is widely used in industrial automation, control panels, instrumentation, and other applications requiring durable, flame-retardant, and secure electrical connections. This product meets RoHS compliance standards, reflecting its environmentally conscious design and manufacturing.
Features 24 female contacts arranged in 2 rows for board-to-board connector systems. Constructed with polybutylene terephthalate housing offering UL 94V-0 flame retardancy. Kinked solder legs ensure secure retention on PCB during assembly.
Designed to operate in temperature range from -40°C to 105°C. Contacts made from bronze material plated with tin for reliable conductivity and corrosion resistance. Supports current rating of up to 12 A suitable for various electronic applications.
Vertical mounting style with top entry improves stacking and space utilization. Part of the AMPMODU HV100 series suitable for diverse industrial and electronic equipment.
Ensure reliable and safe electronic assembly with TE Connectivity’s HV100 series. Discover more electronic connectors and components in EnvMart’s vast catalog tailored for industrial automation and electronic manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 12 A, making it suitable for various electronic applications.
It is designed to operate safely in a temperature range from -40°C to 105°C.
The connector features 24 female contacts arranged in 2 rows.
The housing is constructed from polybutylene terephthalate, which offers UL 94V-0 flame retardancy.
It utilizes a solder termination type for secure connections.
The contacts are arranged with a pitch of 2.54 mm.
This connector has a straight orientation, suitable for vertical mounting.
The contacts are made from bronze and are plated with tin for reliable conductivity and corrosion resistance.
Yes, this model meets RoHS compliance standards, reflecting its environmentally conscious design.
It is part of a board-to-board connector system, facilitating connections between PCBs.
This model is a through hole mount type, designed for easy installation on printed circuit boards.
The country of origin for this PCB socket is India.
