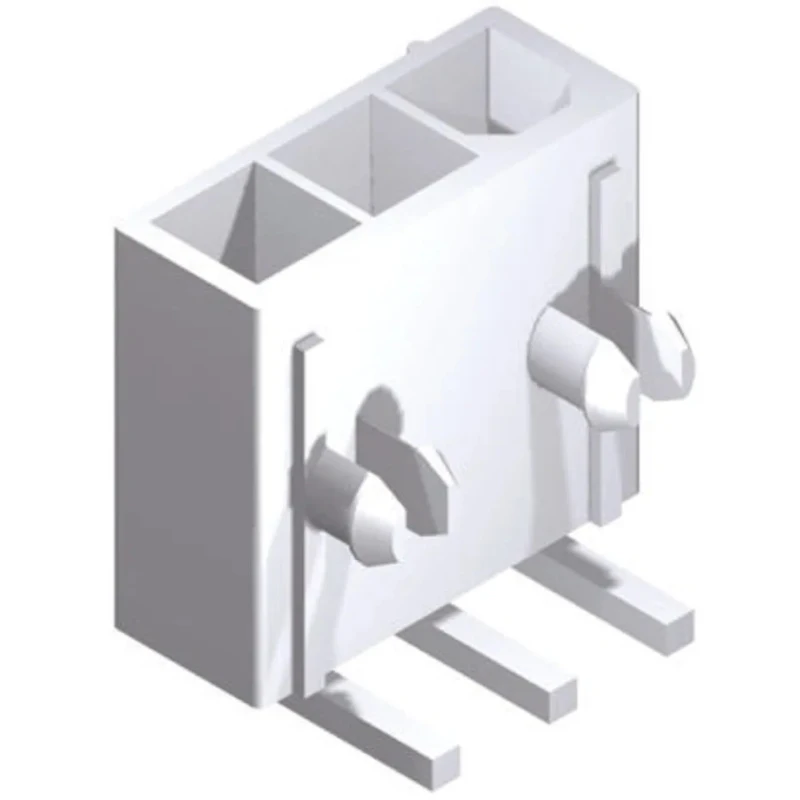

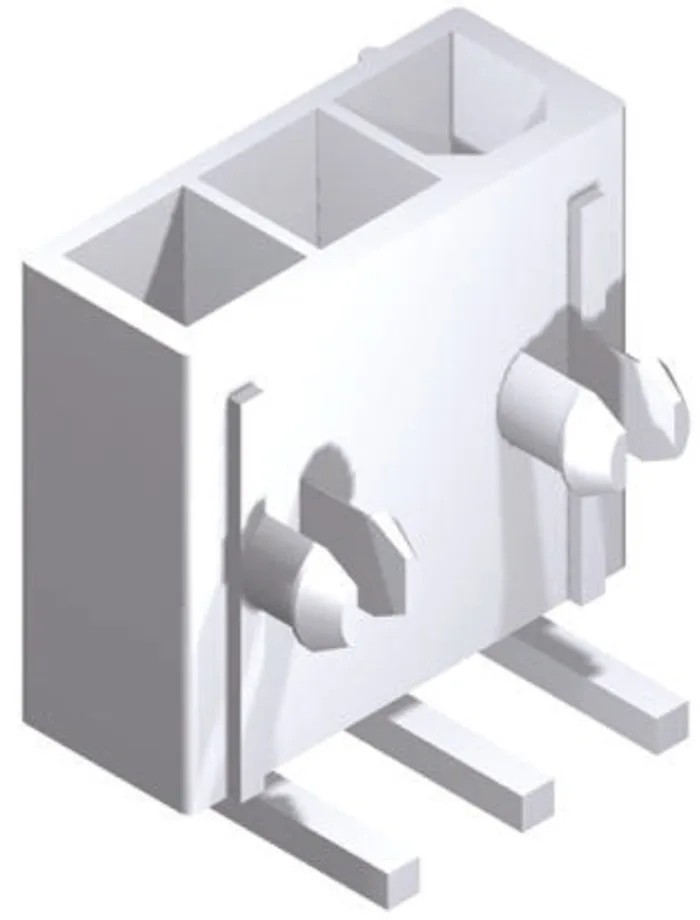

Molex Mini-Fit Jr. Series Right Angle Through Hole PCB Header, 4 Contact, 4.2 mm Pitch, 1 Row, Shrouded 39-30-3046

The Molex 39-30-3046 Mini-Fit Jr. Series Right Angle Through Hole PCB Header is a highly reliable and durable shrouded connector specifically engineered for wire-to-board connections.

Key features include a 4.2 mm pitch and 4 male contacts arranged in a single row, providing a compact footprint while supporting high current capacity of up to 12A per circuit. Its nylon housing offers excellent insulation and mechanical protection while scoop-proof design prevents damage to pin terminals during mating especially at severe angles.

Polarization and keying features on the housing prevent misalignment and mismating, ensuring proper assembly every time. The connector integrates a positive locking mechanism that prevents accidental disconnection due to shock or vibration, guaranteed by an audible click signaling full mating.

Constructed with tin-plated brass contacts and solder termination style, this PCB header is designed for through-hole mounting, delivering stable and secure connectivity in electronic applications.

Operating reliably within -40°C to 105°C temperature limits and rated for 600V voltage, this connector is ideal for high current and high-density wire-to-board applications including consumer appliances, industrial automation, network servers, and communication equipment.

Additional versions with PCB retention pegs and mounting flanges are available to enhance mechanical stability. This product guarantees consistent performance under demanding industrial and commercial conditions.

Set contains a 1-row, 4-contact Mini-Fit Jr. right angle PCB header connector, manufactured with quality nylon housing and brass contacts to ensure durability and performance. Rated for 12A current per circuit ensuring reliable power delivery.

Constructed with a nylon housing for durable insulation and mechanical protection. Features fully isolated, scoop-proof terminals to prevent contact damage. Includes polarization, keying features, and a positive locking mechanism for secure mating.

Operates effectively between -40°C and 105°C temperature range. Has tin-plated brass contacts suitable for soldering in through-hole mounting. Designed to handle a maximum voltage of 600V and one row of four contacts. Ideal for high current, high density electronic equipment and PCB interconnections.

Incorporates audible click feedback confirming full connector mating. Explore more Molex PCB Headers and connectors at EnvMart for your industrial, laboratory, and electronic manufacturing needs.
