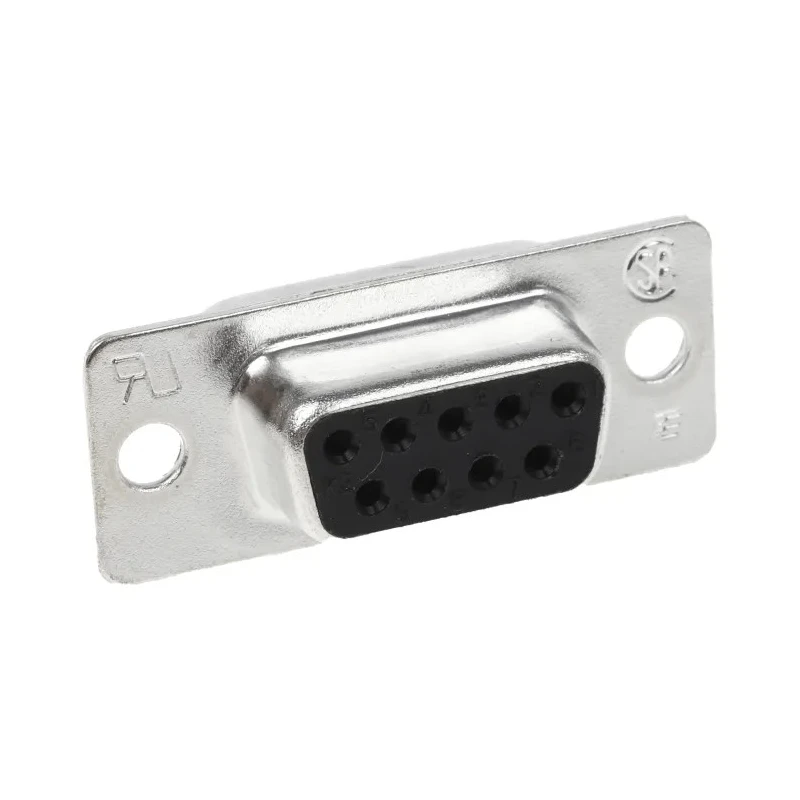

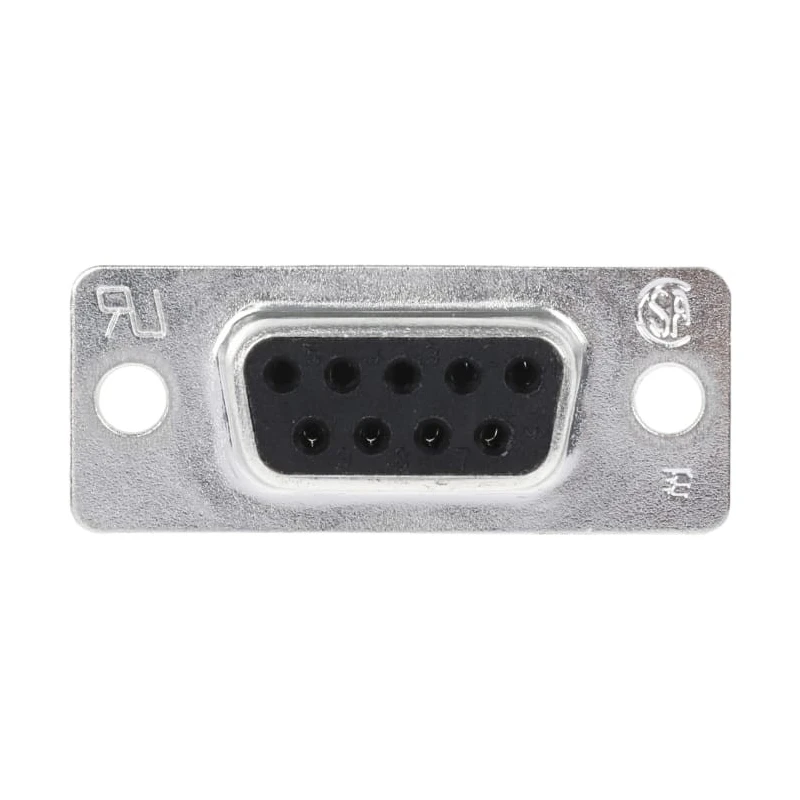

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female 5-747905-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- High-density AMPLIMITE HD-20 series designed for communication and data interfaces.
- Constructed with steel housing and phosphor bronze contacts plated with gold over nickel.
- Rated for 250V and 3A current with temperature tolerance from -55°C to 105°C.
- Features full EMI shielding and ESD insulation with tin-plated shell and 94V-0 black thermoplastic insert.
- Supports solder cup termination for secure and reliable connections.
- Compatible with HDE, HDF, HDP, and HD-20 board mount connectors.
- Durable panel mount design suitable for industrial and communication equipment.
Product Description
TE Connectivity 5-747905-2 AMPLIMITE HD-20 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female is engineered for high-density connectivity in communication and data interface applications. This connector features a sturdy steel housing with a tin-plated shell for enhanced EMI shielding and ESD insulation, complemented by a 94V-0 rated black thermoplastic insert ensuring durability and safety across extreme operating temperatures ranging from -55°C to 105°C.
The nine phosphor bronze contacts are plated with gold over nickel to provide excellent conductivity and corrosion resistance. Rated to handle currents up to 3A and voltages of 250V, this connector is ideal for demanding industrial environments.
The solder cup termination type allows reliable attachment of cables, while the female connector configuration with a panel mount design facilitates easy integration into various equipment housings and panels.
The AMPLIMITE HD-20 series offers 65% higher contact density compared to previous HD-20 connectors, saving valuable space in equipment design. The crimped shield termination delivers low impedance and strain relief, enhancing connector longevity under mechanical stress.
This connector is compatible with a range of mating connectors including HDE, HDF, HDP, and other HD-20 series, making it a versatile choice for system designers and manufacturers in industrial automation, communications, and data processing sectors.
High-density AMPLIMITE HD-20 series designed for communication and data interfaces. Constructed with steel housing and phosphor bronze contacts plated with gold over nickel. Rated for 250V and 3A current with temperature tolerance from -55°C to 105°C.
Features full EMI shielding and ESD insulation with tin-plated shell and 94V-0 black thermoplastic insert. Supports solder cup termination for secure and reliable connections. Compatible with HDE, HDF, HDP, and HD-20 board mount connectors.
Durable panel mount design suitable for industrial and communication equipment. Explore EnvMart's wide selection of connectors for various industrial, electronic, and communication applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 250V, making it suitable for various electrical applications.
It has a current rating of 3A, allowing it to handle moderate electrical loads effectively.
The housing is made of steel, while the contacts are phosphor bronze plated with gold over nickel for enhanced conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 105°C, making it suitable for extreme environments.
This connector features 9 contacts, providing multiple connection points for data and communication.
It supports solder cup termination, which allows for secure and reliable cable connections.
Yes, it is compatible with HDE, HDF, HDP, and other HD-20 series connectors, enhancing its versatility.
The pitch size is 2.77 mm, which is designed for high-density connectivity.
It features a panel mount design, facilitating easy integration into various equipment housings and panels.
This model offers full EMI shielding and ESD insulation, which helps protect against electromagnetic interference and electrostatic discharge.
The D-Sub shell size for this connector is E, which is standard for this type of connector.
The country of origin for this connector is China.
