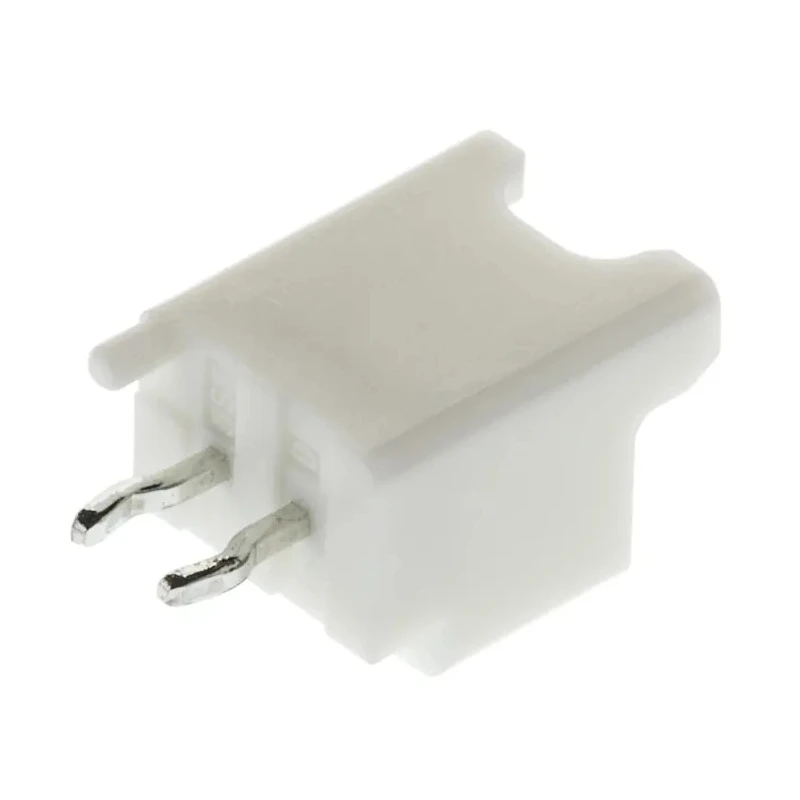

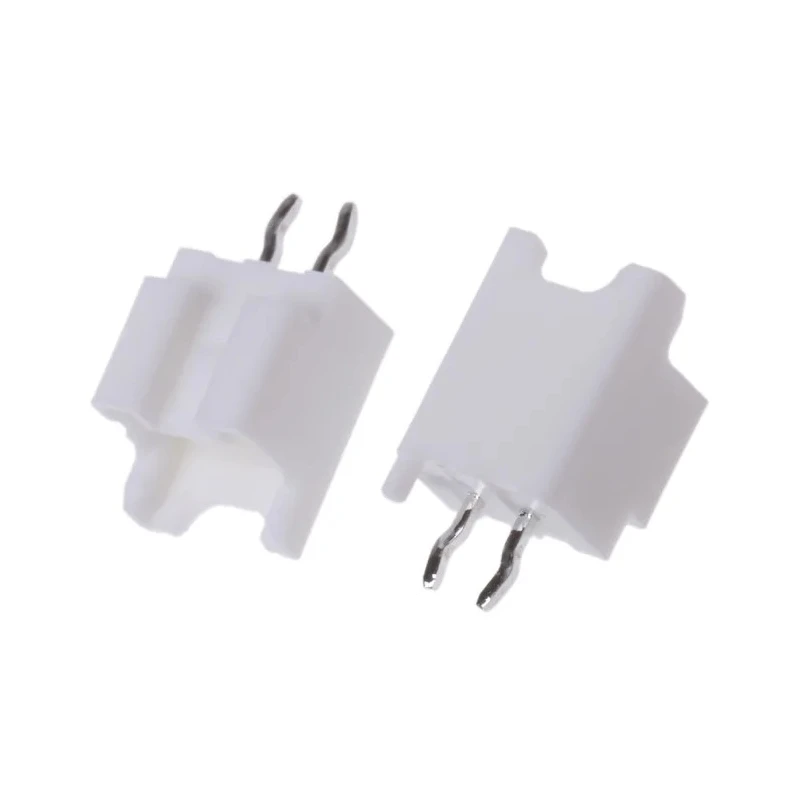

JST PA Series Straight Through Hole PCB Header, 2 Contacts, 2 mm Pitch, 1 Row, Shrouded B02B-PASK-1 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Straight Through Hole PCB Header, 2 Contacts, 2 mm Pitch, 1 Row, Shrouded B02B-PASK-1 (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B02B-PASK-1 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Designed with a 2.0 mm pitch for precise spacing.
Features 2 contacts arranged in a single row configuration.
Shrouded design provides protection and secure mating.
Made with copper alloy contacts plated with tin for corrosion resistance.
Supports a maximum voltage of 250V and current rating of 3A.
Suitable for through hole mounting on PCBs.
Operates reliably between -25°C to 85°C.
Includes a mating pin length of 3 mm for secure connections.

Product Description

JST B02B-PASK-1 (LF) (SN) is a precision-engineered PCB header belonging to the PA series, featuring a 2 mm pitch and 2 contacts arranged in a single row. Its straight, shrouded configuration ensures a secure and vibration-resistant wire-to-board connection. This header is designed for through hole mounting, making it ideal for reliable electrical PCB assemblies in industrial and electronic applications.

The connector uses copper alloy contacts with tin plating, enhancing corrosion resistance and durability. Rated for a voltage of up to 250V and a current of 3A, it operates effectively across a temperature range from -25°C to 85°C. The 3 mm mating pin length and solder termination type facilitate a robust and long-lasting electrical connection.

Applications include electronic manufacturing, instrumentation, and industrial control systems where secure, low insertion force connections are critical. The shrouded design with polarising guides simplifies assembly and prevents incorrect mating, enhancing overall system reliability.

This product is manufactured in Malaysia and adheres to JST's quality standards, though no specific certifications are noted. The PA series is well-regarded for its secure locking mechanism that prevents accidental disconnection due to vibration or handling.

Explore EnvMart for more PCB connectors, including compatible housings and accessories, to support your PCB assembly needs. Designed with a 2.0 mm pitch for precise spacing. Features 2 contacts arranged in a single row configuration.

Shrouded design provides protection and secure mating. Made with copper alloy contacts plated with tin for corrosion resistance. Supports a maximum voltage of 250V and current rating of 3A. Suitable for through hole mounting on PCBs.

Operates reliably between -25°C to 85°C. Includes a mating pin length of 3 mm for secure connections. Utilizes solder termination type for effective electrical bonding. Provides a wire-to-board connector system with straight orientation.
