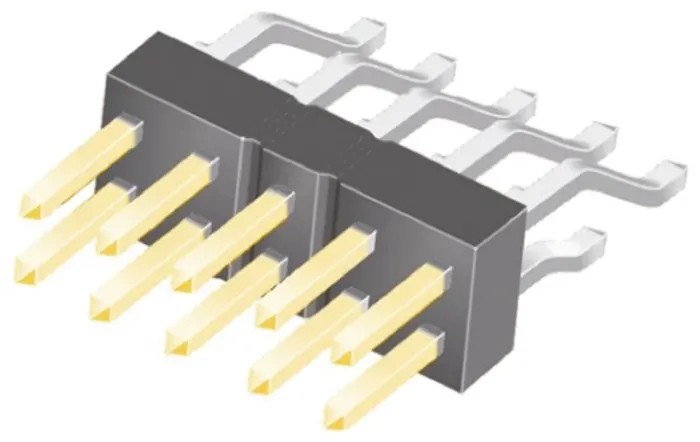

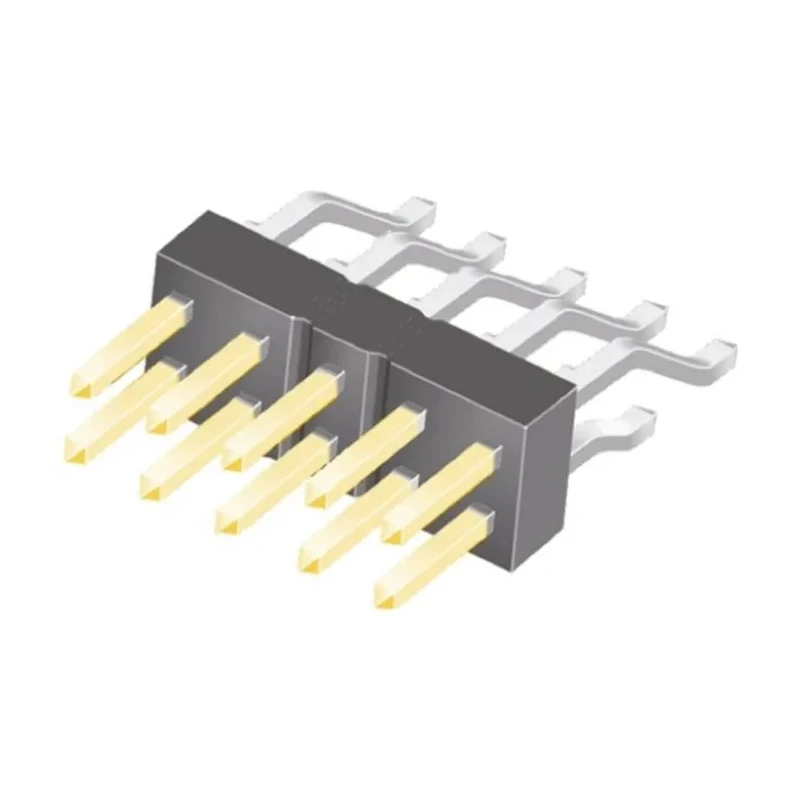

Samtec TSM Series Right Angle Surface Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-105-01-L-DH

Samtec TSM Series Right Angle Surface Pin Header model TSM-105-01-L-DH delivers precise and robust electrical connections with its 10 male contacts arranged in 2 rows at a 2.54 mm pitch. Designed with a black Liquid Crystal Polymer housing and phosphor bronze contact material, plated with 0.25 μm gold, this connector features a surface mount technology (SMT) right angle orientation ideal for dense PCB layouts.

The connector is engineered to withstand operating temperatures ranging from -55°C to 125°C, accommodating various environmental conditions. It supports a voltage rating of 475 V and a current rating of 7 A, making it suitable for a wide range of electronic applications including board-to-board and wire-to-board connections.

Its unshrouded design allows straightforward soldering on PCB surfaces. The 5.84 mm mating pin length ensures secure and reliable interface with mating sockets. This product complies with no specific approvals but meets general industrial electronic connector standards.

Typical use cases include electronic manufacturing, industrial controls, communication devices, instrumentation, and other applications requiring rugged, high-quality PCB connectors.

Right angle orientation supports varied PCB configurations. Gold plating on contacts assures long-term corrosion resistance. Liquid Crystal Polymer housing delivers mechanical stability and temperature resistance. Suitable for SMT surface mounting on electronic assemblies.

Compatible with industry standard mating sockets of matching pitch.

Incorporate Samtec TSM-105-01-L-DH to ensure dependable and efficient electrical performance in your PCB designs. Explore our PCB Headers section for complementary components and accessories.
