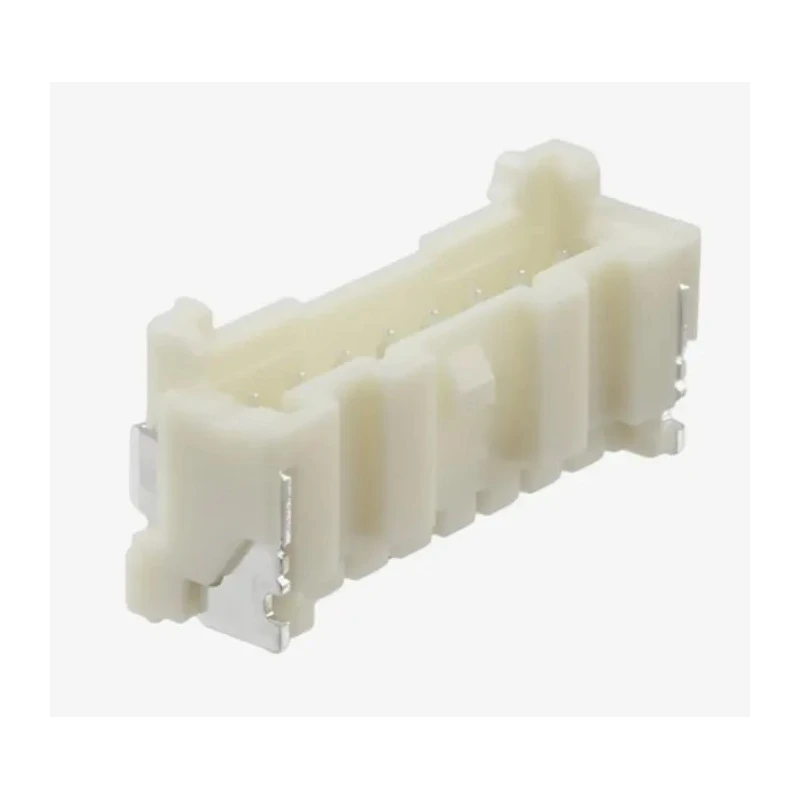

JST PA Series Straight Surface PCB Header 8 Contact 2 mm Pitch 1 Row Shrouded BM08B-PASS-1-TFT(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Straight Surface PCB Header 8 Contact 2 mm Pitch 1 Row Shrouded BM08B-PASS-1-TFT(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	BM08B-PASS-1-TFT(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

PA series 2.0 mm pitch SMT shrouded PCB header designed for complex wire harness applications.
Features a locking ramp device to ensure secure connector mating and prevent disconnection due to vibration.
Insertion guides and polarisation bosses facilitate easy and accurate PCB alignment.
Flanged press pins inhibit accidental removal during unmating process.
Supports a current rating of 3A and voltage rating of 250V for reliable electrical performance.
Manufactured with polyamide housing and copper alloy contacts plated with tin for durability.
Designed for surface mount technology (SMT) with a solder termination type.
Operating temperature range from -25°C to 85°C suitable for industrial electronics use.

Product Description

JST BM08B-PASS-1-TFT(LF)(SN) is a surface mount technology (SMT) shrouded PCB header connector from the PA series, featuring 8 male contacts arranged in a single row with a 2 mm pitch. This connector is engineered for wire-to-board applications requiring secure and vibration-resistant connections.

The PA series 2.0 mm pitch header includes a locking ramp device that secures the mating connector, preventing accidental disconnection during assembly or in environments subjected to vibration. Insertion guides and polarisation bosses assist in correct and easy PCB alignment, ensuring precise assembly.

The contacts are made from copper alloy with tin plating to provide excellent conductivity and reliability. The housing is constructed of durable polyamide material, supporting a current rating of 3A and a voltage rating up to 250V. Its operating temperature range extends from -25°C to 85°C, making it suitable for a variety of industrial and electronic equipment.

The flanged press pins of this vertical mount header are designed to prevent accidental removal during distorted unmating, adding an extra layer of reliability in demanding applications.

This PCB header is ideal for electronic manufacturing, industrial equipment assemblies, and other applications requiring reliable wire-to-board connections with robust mechanical and electrical characteristics.

PA series 2.0 mm pitch SMT shrouded PCB header designed for secure wire-to-board connections. Locking ramp device prevents connector disconnection from vibration or assembly process. Insertion guides and polarisation bosses ensure accurate PCB insertion and alignment.

Copper alloy contacts with tin plating deliver consistent electrical conductivity. Polyamide housing provides durability and thermal resistance. Supports up to 3A current and 250V voltage within -25°C to 85°C operating range.

Flanged press pins designed to prevent accidental removal during unmating. Explore more PCB Headers and other electronic components at EnvMart, your trusted source for industrial-grade connectors and electronic solutions.
