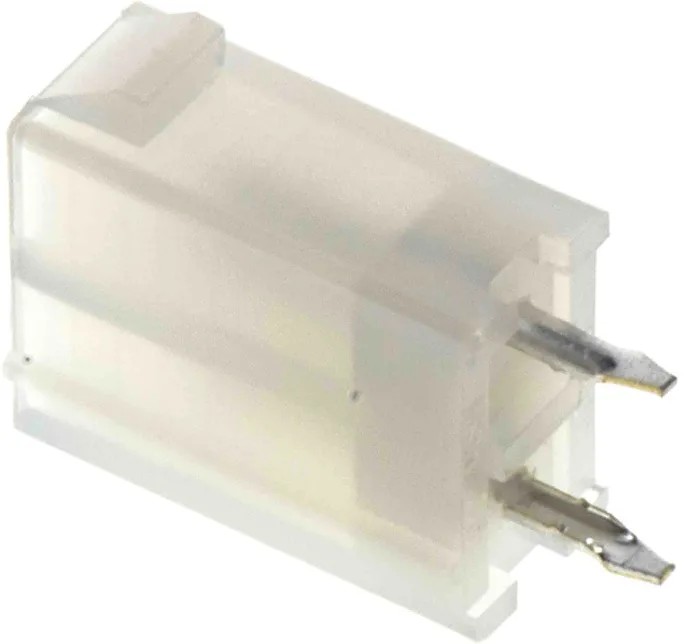

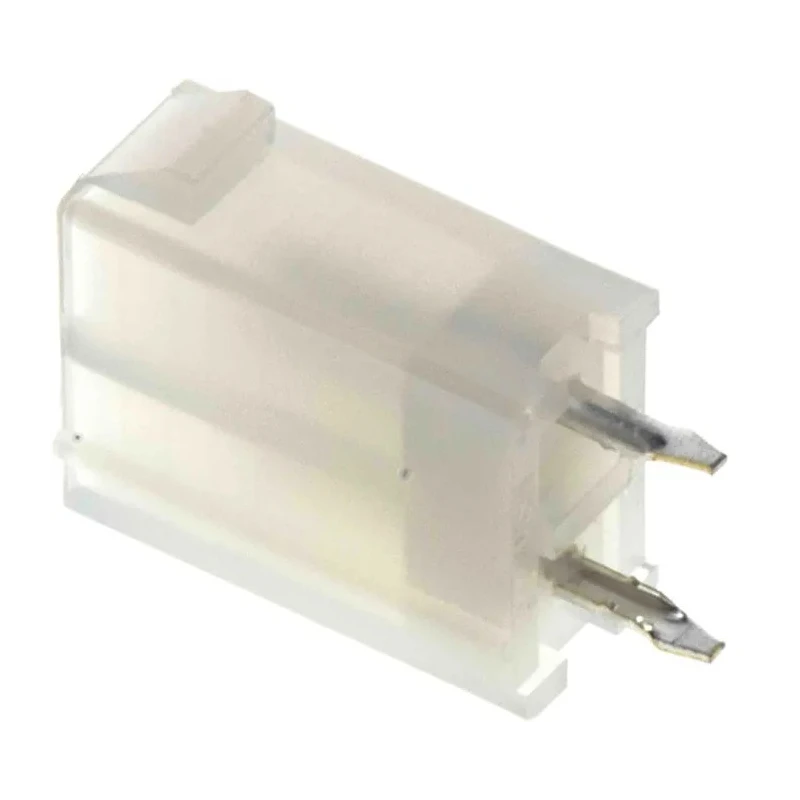

Molex Mini-Fit Jr. Series Right Angle Through Hole 12 Contact PCB Header 4.2 mm Pitch 6A Nylon Housing 600V 39-30-0120
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with a durable nylon housing ensuring insulation and mechanical protection.
- Right angle orientation with through hole mounting for secure PCB connection.
- Brass contact material plated with tin for reliable conductivity and corrosion resistance.
- Shrouded design provides scoop-proof housing to prevent damage during mating.
- Supports operating temperatures ranging from -40°C to 105°C, suitable for demanding environments.
- Operates at voltage ratings up to 600V ensuring robust electrical performance.
- Equipped with polarization and keying features to avoid misalignment and mismating.
- Positive locking mechanism ensures secure, shock-resistant mating connection with audible click feedback.
Product Description
Molex 39-30-0120 Mini-Fit Jr. Series Right Angle Through Hole PCB Header is a high-performance connector designed for dependable power transmission in electronic applications. It features a 12-contact configuration with a 4.2 mm pitch and a robust nylon housing tailored for secure mounting on printed circuit boards.
The connector's right angle orientation and through hole mounting type deliver mechanical stability and ease of assembly. Contacts are made from brass and plated with tin to enhance conductivity and provide corrosion resistance over prolonged use.
Engineered for demanding industrial and consumer applications, this PCB header supports currents up to 6A per circuit and voltages up to 600V, while maintaining operational integrity over a wide temperature range from -40°C to 105°C. The shrouded design protects the terminals from damage due to debris or mishandling during mating procedures through scoop-proof housings.
Additional features include polarization keys preventing incorrect mating, a positive locking mechanism that ensures a secure connection resistant to vibration and shock, and an audible click confirming full engagement. These characteristics make it highly suitable for use in consumer white goods, office equipment, industrial automation, network devices such as servers, routers, and switches.
Durable nylon housing for mechanical protection and insulation. 12 brass contacts plated with tin for corrosion resistance. Supports current ratings up to 6A per circuit and voltage up to 600V. Wide operating temperature range from -40°C to 105°C.
Scoop-proof and shrouded design to prevent contact damage. Polarization and keying to avoid misalignment and mismating. Positive locking mechanism with audible click for secure connection. Right angle, through hole mount for reliable PCB assembly.
Ideal for industrial, consumer electronics, and networking applications.
This Molex Mini-Fit Jr. PCB header ensures a secure and reliable electrical connection in power distribution systems across various industrial and commercial sectors. Browse our selection of PCB Headers and Connectors at EnvMart for compatible components and accessories.
