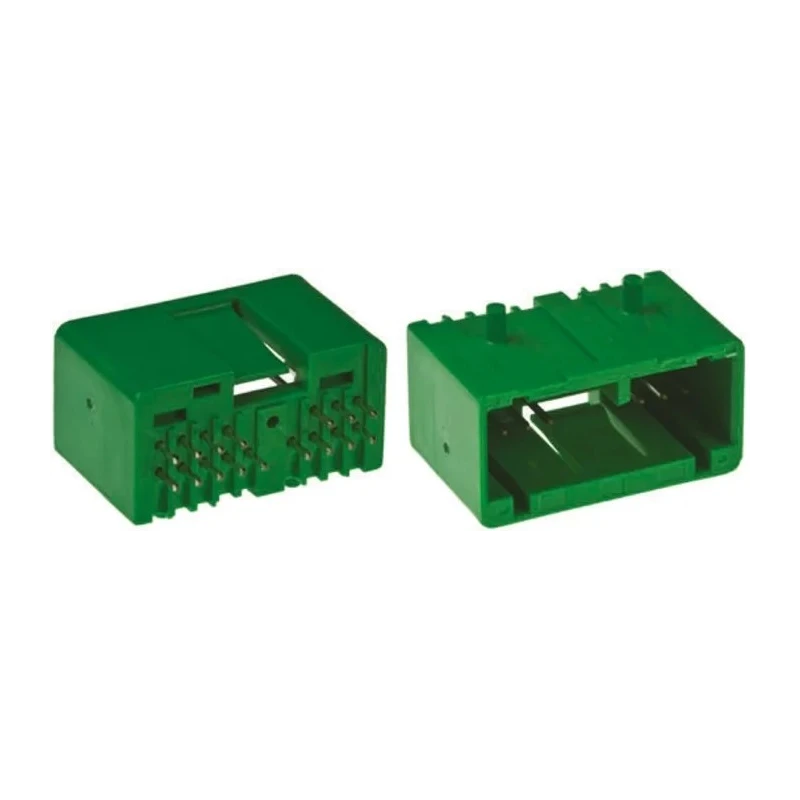

JAE IL-AG5 Series Straight Through Hole PCB Header, 16 Contacts, 2.5 mm Pitch, 2 Row, Shrouded IL-AG5-16P-D3T2A
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Current | 3A |
| Model | IL-AG5-16P-D3T2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | IL-AG5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This board-to-wire connector uses brass contacts plated with tin for optimal conductivity.
- The housing is made of durable Polybutylene Terephthalate material, enhancing mechanical stability.
- Designed with a shrouded and straight orientation for secure mating and prevention of misalignment.
- It supports a current rating of 3 A and operates reliably between -40°C and 85°C.
- The through-hole mount type allows robust solder termination for industrial-grade applications.
- Its dual-lock mechanism ensures positive contact retention and eliminates dislodging risks.
- Ideal for automotive instrument panel applications and other high-reliability electronics.
- The connector is male contact gender configured to interface with matching socket connectors.
Product Description
JAE IL-AG5-16P-D3T2A is a high-quality straight through hole PCB header designed for demanding electronics and automotive instrument panel applications. This 16-contact, 2 row, shrouded connector features a 2.5 mm pitch and a robust Polybutylene Terephthalate housing that resists mechanical wear and environmental stresses.
The connector supports a current rating of 3 A, operating efficiently within a temperature range of -40°C to 85°C. Its brass contacts, plated with tin, ensure excellent electrical conductivity and corrosion resistance. The straight orientation combined with a unique housing configuration mitigates the risk of mis-mating during assembly.
Equipped with a dual-lock mechanism, the IL-AG5-16P-D3T2A prevents contact dislodgment resulting from vibrations or mechanical shocks. The male contact gender and through-hole mount type facilitate secure solder connections, commonly required in industrial and automotive PCB applications.
This connector is part of the JAE IL-AG5 series, featuring high reliability socket contacts and simplified crimp-type terminations to ease manufacturing processes. For complementary mating socket connectors, recommended part numbers in the range are available ensuring system compatibility.
This board-to-wire connector has 16 pins arranged in 2 rows with a 2.5 mm pitch. The housing is constructed from Polybutylene Terephthalate for durability and heat resistance. Contacts are brass with tin plating to ensure conductivity and longevity.
Operates between -40°C and +85°C for a broad range of industrial environments. Shrouded and straight orientation provides secure connections and prevents misalignment. Through-hole mount style with solder termination supports robust PCB integration.
Designed with automotive-grade reliability and dual mechanical locking. Compatible with matching sockets in related product series for comprehensive system design.
This PCB header is suitable for use in electronics manufacturing, automotive control systems, industrial instrumentation, and other electronics requiring dependable board-to-wire connectivity. Browse our full selection in the PCB Header category to find related connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3 A.
It operates reliably within a temperature range of -40°C to 85°C.
This connector utilizes a through-hole mount type for robust solder termination.
The JAE IL-AG5-16P-D3T2A has 16 contacts arranged in 2 rows.
The pitch size of the contacts is 2.5 mm.
The housing is made of Polybutylene Terephthalate, and the contacts are brass plated with tin.
This model features a straight orientation for secure mating and prevention of misalignment.
It is designed as a wire-to-board connector system.
Yes, it is equipped with a dual-lock mechanism to ensure positive contact retention and prevent dislodging.
This connector is suitable for automotive instrument panel applications and other high-reliability electronics.
The contact gender of this model is male, designed to interface with matching socket connectors.
The country of origin for this product is India.
