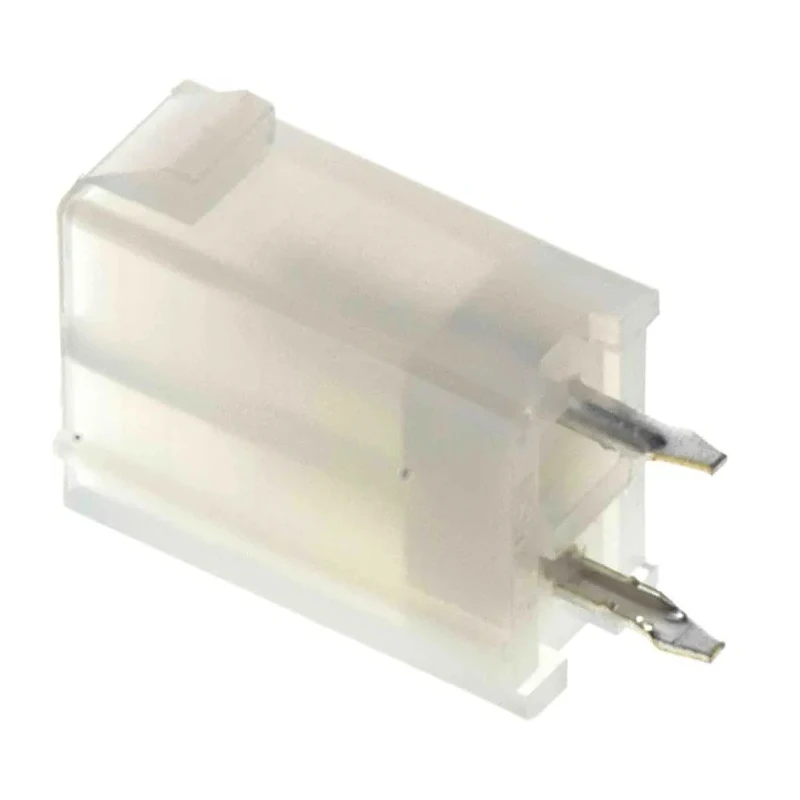

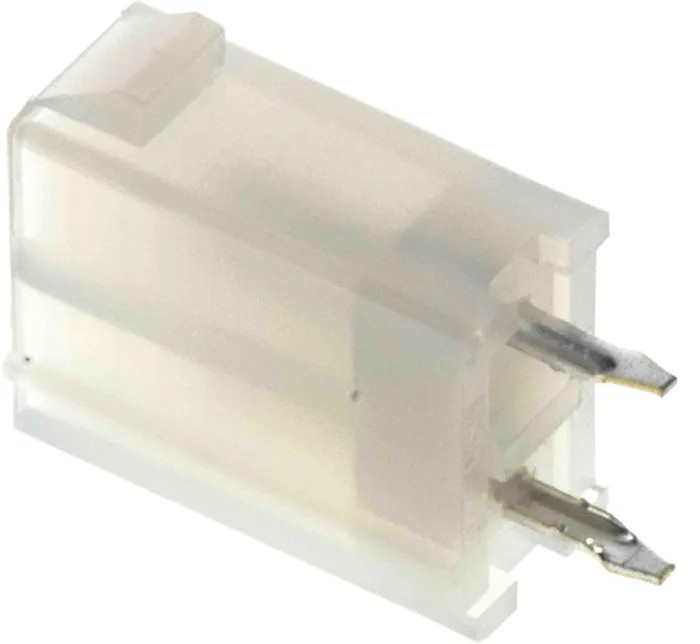

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header, 2 Contact, 4.2 mm Pitch, 2 Row, Shrouded 39-30-1022

Molex 39-30-1022 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a high-quality, shrouded PCB header connector designed for robust wire-to-board electrical connections. It features 2 male contacts arranged in 2 rows with a 4.2 mm pitch, suitable for applications requiring reliable current handling up to 6A per circuit.

The connector housing is made of durable nylon material that is scoop-proof to prevent damage to the pin terminals even when mated at severe angles. The fully isolated terminals protect against debris, arcing, and mishandling damage. Polarization and keying features are integrated to ensure proper mating orientation and to prevent mismatching with the receptacle connector.

This Mini-Fit Junior series connector incorporates a positive locking mechanism that provides a secure mating connection and prevents accidental disconnection due to shock or vibration. An audible click confirms the connector is fully mated for increased user confidence during assembly.

Various mounting options are available including versions with snap-in plastic PCB retention pegs and mounting flanges, offering design flexibility for PCB assembly. Contact material is brass with gold plating to ensure excellent conductivity and corrosion resistance. The connector is rated for a maximum operating temperature of 105°C and can safely operate at voltages up to 600 V.

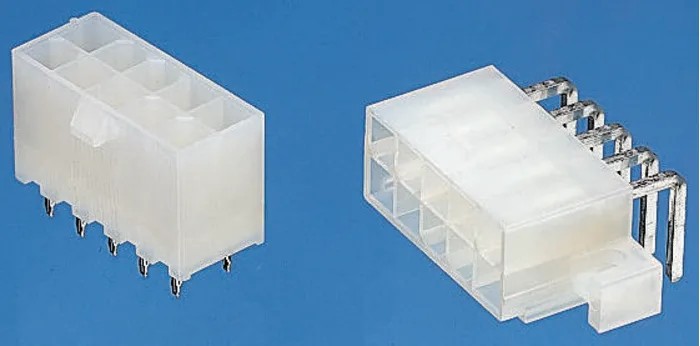

Applications for this connector include use in consumer white goods, office equipment, industrial automation systems, industrial networks, rack-mount servers, routers, and switches. The Mini-Fit Jr connectors are perfect for high current, high-density wire-to-board interconnections requiring design flexibility and dependable performance.

Fully isolated terminals protect against debris and damage. Scoop-proof nylon housings prevent terminal damage during mating. Polarization and keying ensure correct connector alignment. Positive locking with audible click for secure connections.

Available with PCB retention pegs and mounting flanges. Brass contacts with gold plating for excellent conductivity. Rated for 6A current and 600 V voltage. Operating temperature range from -40°C to 105°C. Ideal for consumer, industrial, and networking equipment applications.
